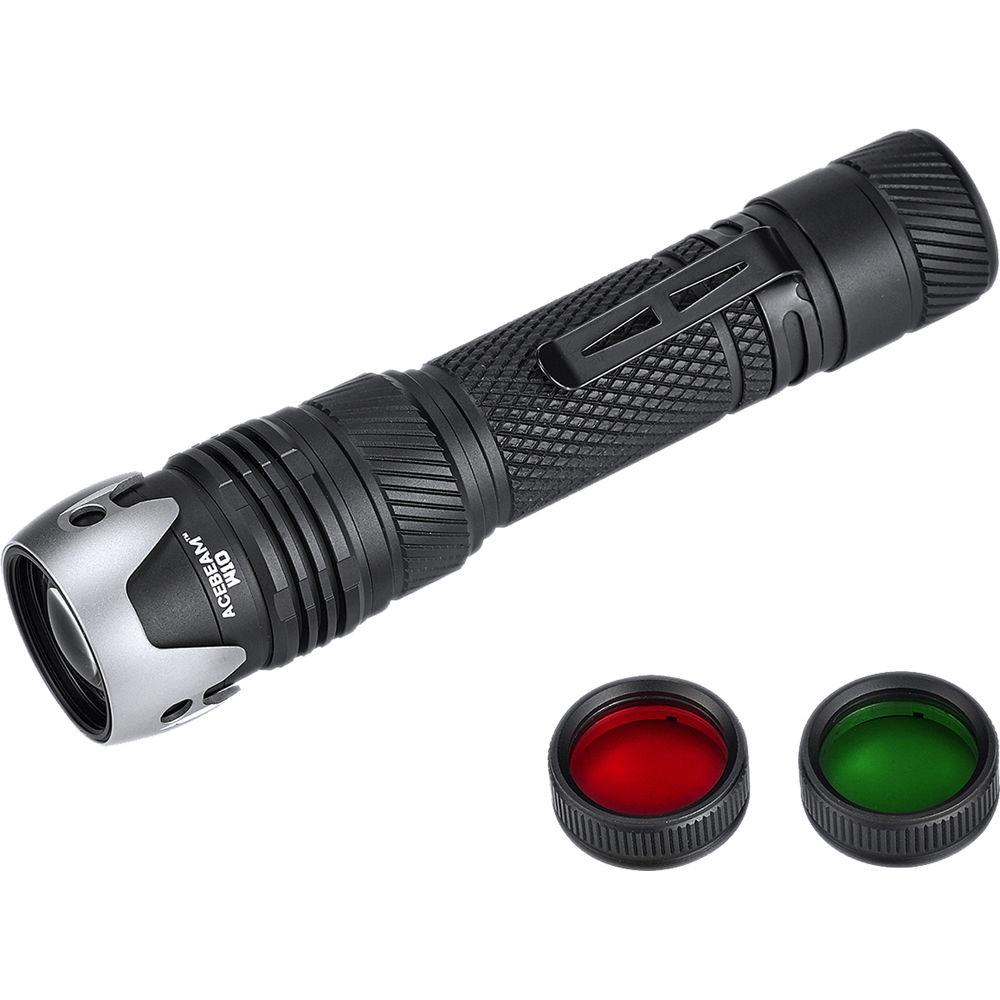

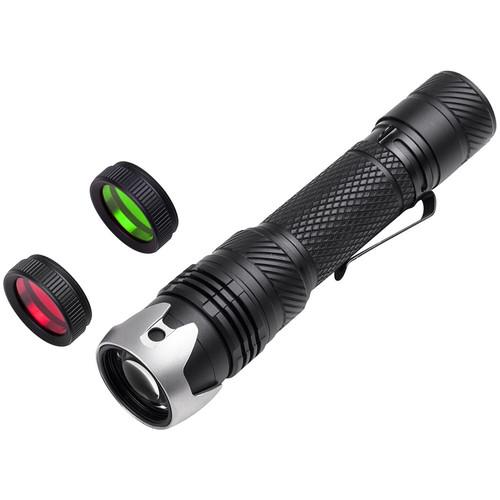

Product description Equipped with a laser excitation phosphor (LEP) emitter rather than an LED, the W10 Rechargeable LEP Long-Throw Flashlight from Acebeam offers an exceptionally long throw for police and corrections personnel, airport work, hunting, and a variety of field lighting and signal use. Its convex lens delivers 250 lumens of white light, with more than three hours' runtime when using a rechargeable, 5100mAh 21700 battery. (The W10 can also run on one 18650 or two CR123A batteries, with shorter runtimes.) It recharges through a 5V, 2A USB-C port. Included red and green filters allow for specialized use such hunting, astronomy, outdoor recreation, etc.
The W10 features a Type III anodized aluminum housing, a removable stainless-steel strike bezel, and a pocket clip. It carries an IP68 water-resistance rating, measures 5.9" long, and weighs 4.5 ounces without the battery. - Light Performance
-
- 250 lumens
- Laser excitation phosphor (LEP) emitter for long throw
- Full-width 3.1° beam divergence angle
- Convex lens
- 3.3 hours runtime with 5100mAh 21700 battery
- Digitally regulated for consistent performance
- Switching
-
- Location: tailcap
- Type: push button
- Construction Details
-
- Reversible and removable stainless-steel strike bezel
- Red and green colored filters
- Tyoe III hard-anodized aluminum
- Knurled surface for secure grip
- One 5100mAh 21700 battery
- Can run on one 18650 or two CR123A batteries (adapter included)
In the Box Acebeam W10 Rechargeable LEP Long-Throw Flashlight IMR 21700 Battery 18650 Battery Adapter USB-C Charging Cable Red Filter Green Filter Pocket Clip Spare Rubber Switch Cap 2 x Spare O-Rings Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam W10 Rechargeable LEP Long-Throw Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebeam W10 Specs | | | Lumen Output | 250 Lumens | | Illumination Source | 1 x White LEP | | Beam Divergence | 54 MRAD | | Input Charging Port | USB Type-C | | | | Estimated Runtime | 3.3 Hours | | Battery Type | 1 x 21700 Lithium | | Internal Battery Capacity | 5100 mAh | | | | Material of Construction | Aluminum | | Water Resistance | IP68 | | Bezel Diameter | 1.2" / 30.5 mm | | Dimensions | W: 1.0 x L: 5.9" / W: 2.5 x L: 15.0 cm | | Weight | 4.5 oz / 128 g (Without Battery) |
