Acebeam X70 Rechargeable LED Flashlight Acebeam X70 Rechargeable LED Flashlight
User manual for the Acebeam X70 Rechargeable LED Flashlight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Acebeam product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!



Product description

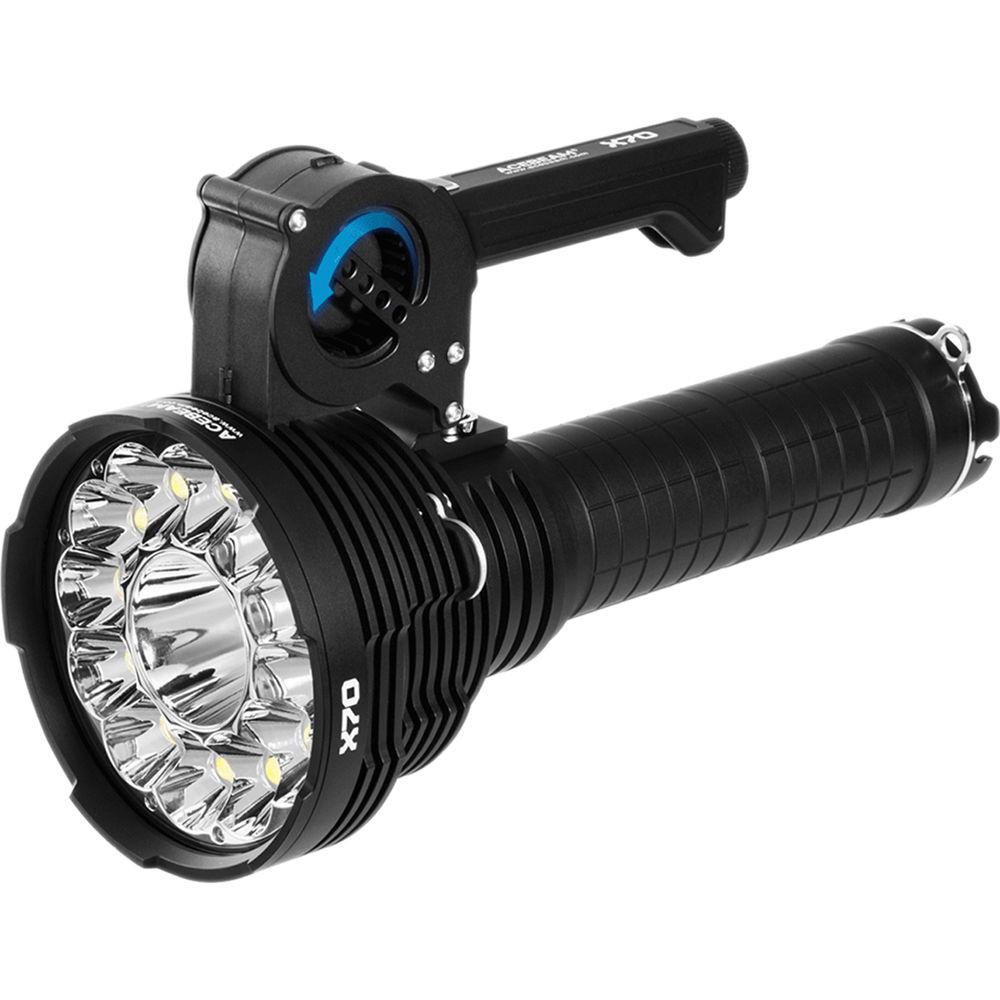

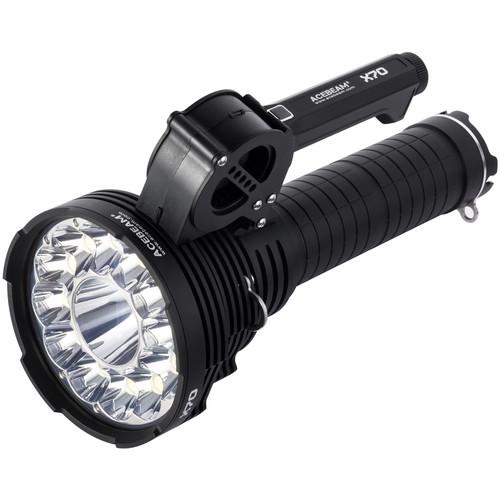

With a remarkable peak output of 60,000 lumens, the Acebeam X70 Rechargeable LED Flashlight is up to any activity where bright light is required, from caving to search and rescue. Powered by a built-in rechargeable battery pack with eight high-drain 18650 cells, the X70 uses one Cree XHP35 HI and 12 Cree XHP70.2 LEDs to produce an exceptionally long, bright beam. It comes with a removable handle equipped with a cooling fan powered by its own 18650 battery (separate from the batteries that power the LEDs). The light cab be used in either of two modes—Eco, with five brightness levels from 625 to 35,000 lumens, or Power, with five levels from 625 to 60,000 lumens. Both modes include a 10,000-lumen strobe for self-defense or signaling. On/off and brightness level are controlled by a single push-button switch just below the light's head. The light and the cooling fan each have their own battery power indicator lights. The Type III anodized-aluminum housing is designed to withstand accidental immersion as deep as 33', though the X70 is not a dive light and should not be turned on or off underwater. Its prodigious output is efficiently conveyed by a smooth reflector and a tempered glass lens with an anti-reflective coating that delivers a 98.3% light transmission rate.
    Light Performance
    • Power Mode
    • Turbo: 60,000 lumens (18,000 lumens after 55 seconds)
    • High: 25,000 lumens (16,000 lumens after 8 minutes)
    • Medium: 8000 lumens
    • Low: 3250 lumens
    • Ultra-low: 625 lumens

    • Eco Mode
    • Turbo: 35,000 lumens (15,000 lumens after 2 minutes)
    • High: 15,000 lumens (11,000 lumens after 40 minutes)
    • Medium: 8000 lumens
    • Low: 3250 lumens
    • Ultra-low: 625 lumens
    Switching
    • Location: side
    • Type: push button
    • On/off and brightness levels
    Construction Details
    • 10,000-lumen strobe for self-defense or signaling

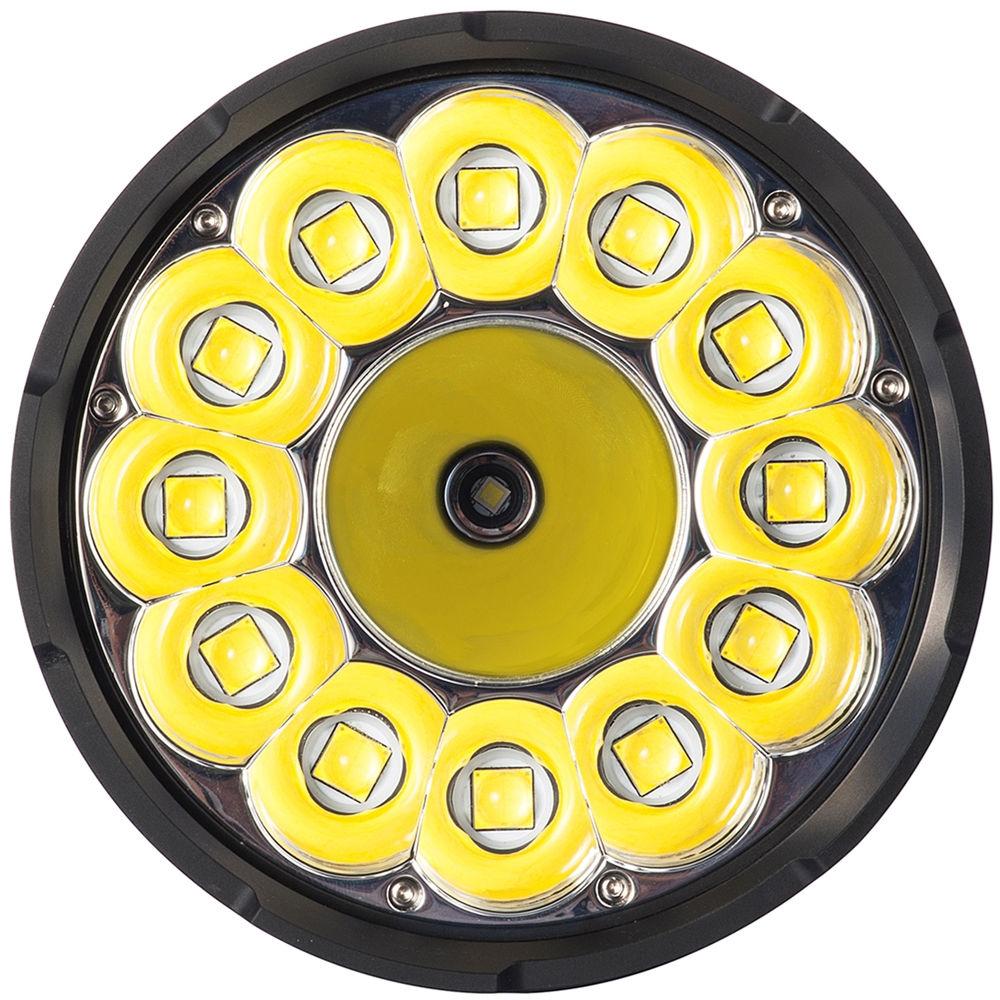

    • Twelve Cree XHP70.2 LEDs
    • One Cree XHP35 HI LED
    • Smooth reflector
    • AC and DC chargers
    • Charges in three hours
    • Aluminum housing, submersible to 33'
    • Removable handle with cooling fan
    • Intelligent overheat protection
    • Toughened glass lens with anti-reflective coating
    • Crenelated bezel
    • Digital output regulation
    • Light runs on eight 18650 batteries
    • Fan runs on one 18650 battery
    • Battery power indicator LEDs for light and fan
In the Box Acebeam X70 Rechargeable LED Flashlight
  • Removable Handle with Cooling Fan
  • 18650 Power Pack
  • AC/DC Charger
  • Car Charger
  • Shoulder Strap
  • Hex Wrench
  • 6 x O-Rings
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Acebeam X70 Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Acebeam X70 Specs

    Lumen Output 5 Levels: 625 to 60,000 Lumens
    Illumination Source 13 x White LED
    Input Charging Port Barrel
    Weapon Mountable No
    Battery Type 8 x 18650 Lithium-Ion
    Charging Time 3 Hours
    Lens Material Glass
    Material of Construction Aluminum
    Water Resistance Waterproof to 33' / 10.1 m
    Bezel Diameter 4.6" / 116.0 mm
    Dimensions W: 2.0 x L: 11.1" / W: 51.0 x L: 281.0 mm
    Weight 4 lb / 1.81 kg (With Batteries)
    Package Weight 5.71 lb
    Box Dimensions (LxWxH) 14.85 x 5.85 x 5.3"
