User Manual for Acebeam X80-CRI LED Flashlight Click to enlarge the picture
Contents of the user manual for the Acebeam X80-CRI LED Flashlight
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
 |
User manual for the Acebeam X80-CRI LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

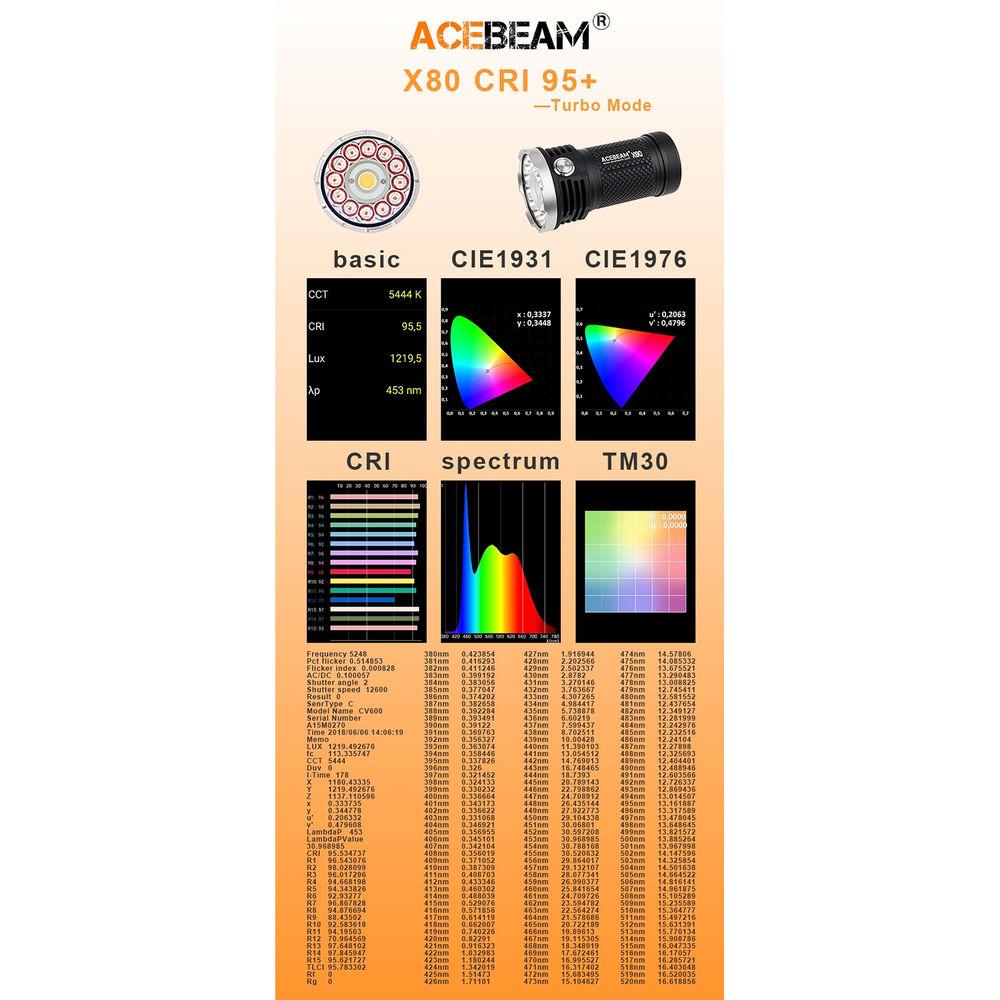

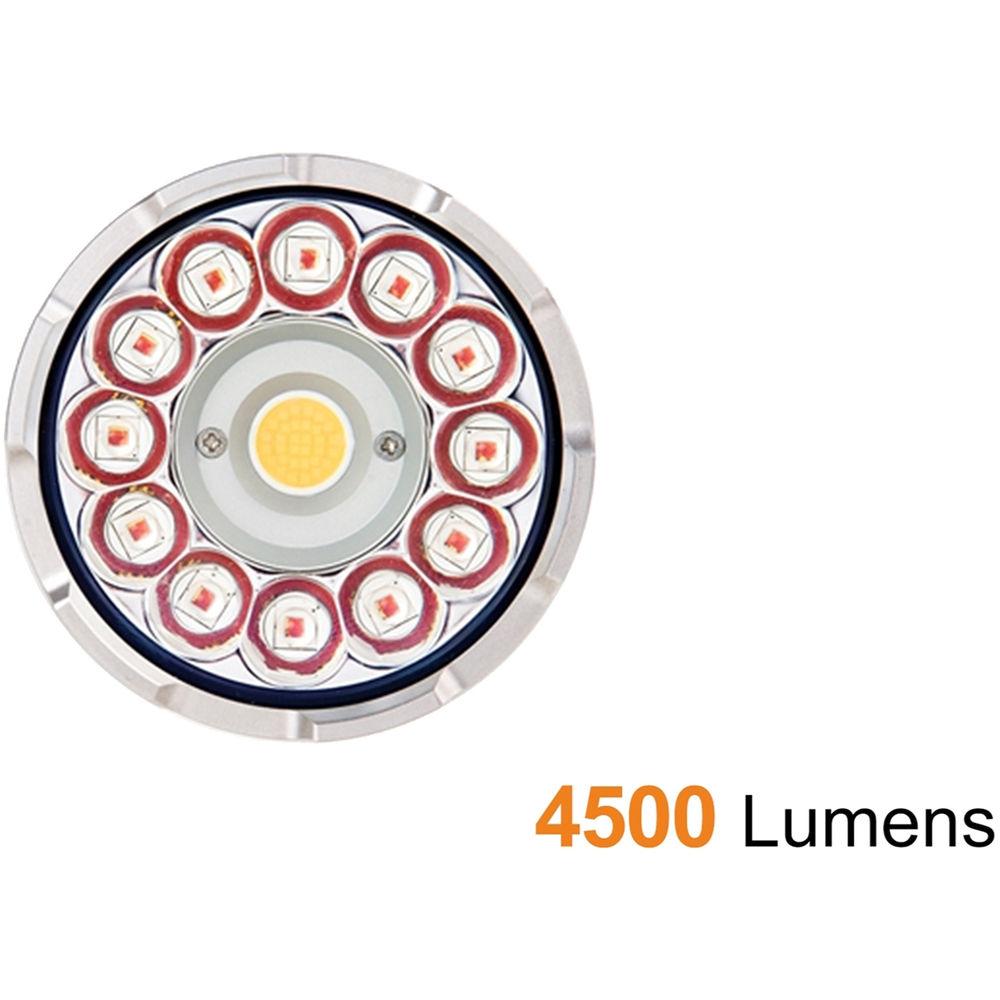

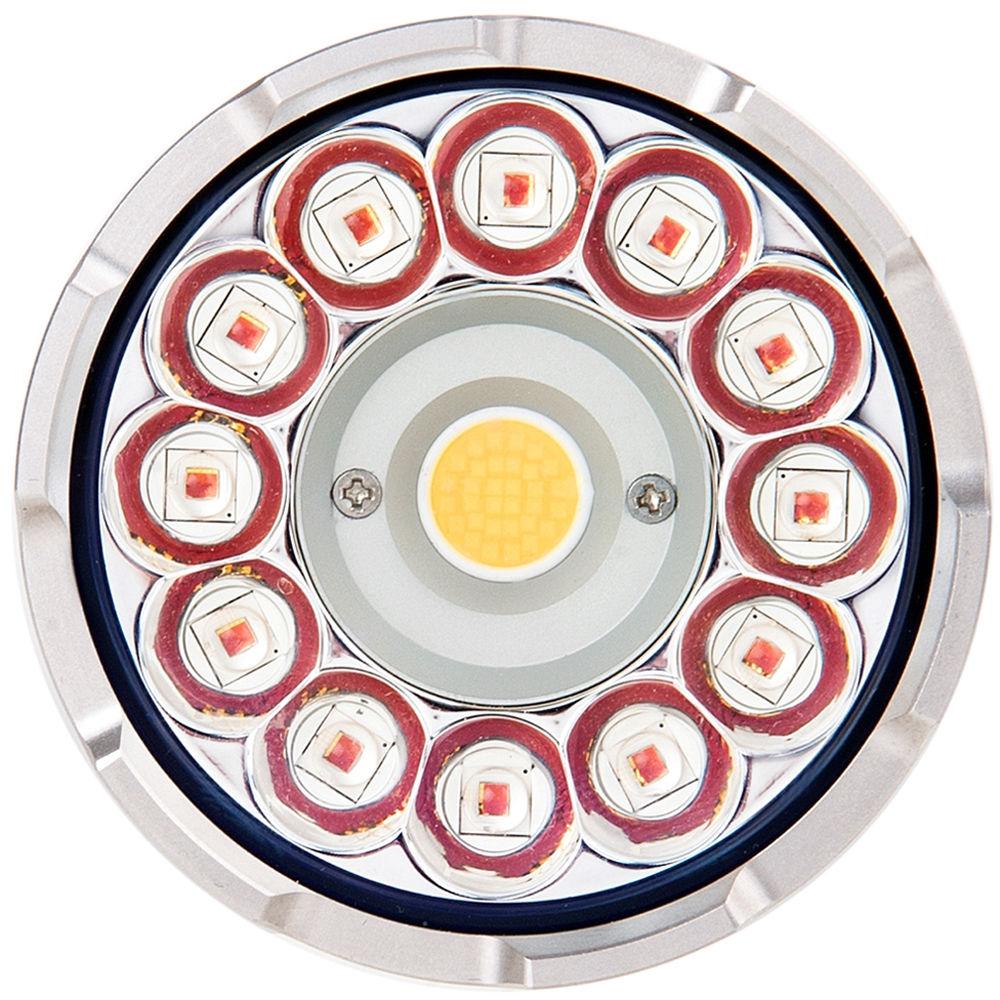

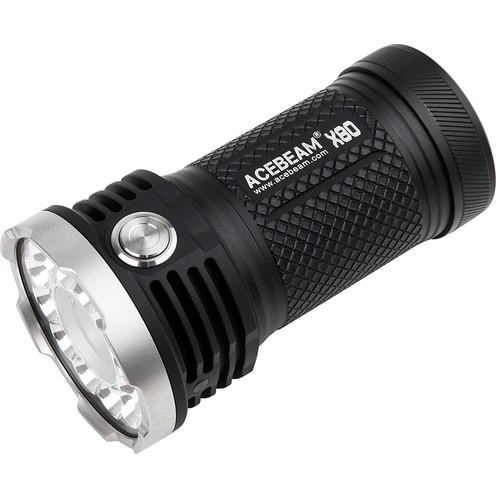

Product description Using chip-on-board (COB) LEDs for a high color rendering index (CRI) plus an array of standard red-light diodes, the Acebeam X80-CRI LED Flashlight can be of value in photography as well as traditional high-output flashlight uses such as law enforcement, search and rescue, outdoor recreation, and emergency preparedness. The COB emitter delivers six white light brightness levels with a maximum output of 4500 lumens and a CRI of 95, while the red LEDs shine at 2500 lumens on high power and 1000 lumens on low. The light comes with four 18650 batteries. A side-mounted push button turns the light on and off and cycles through the brightness levels.The Type III anodized-aluminum housing is designed to withstand accidental immersion as deep as 98', though it is not a dive light and should not be turned on or off underwater. It is impact resistant to 3.9'. A smooth reflector and a tempered glass lens with anti-reflective coating produce a 98.3% transmittance rate. A crenelated bezel protects the lens. The light is fitted with a standard 1/4"-20 tripod mount and has a battery power indicator. - Light Performance
- White Light
- High-CRI white COB LED
- Maximum: 4500 lumens (1100 lumens after 2 minutes)
- Turbo: 2100 lumens (1100 lumens after 5 minutes)
- High: 850 lumens
- Medium: 550 lumens
- Low: 300 lumens
- Ultra-low: 150 lumens
- 2100-lumen strobe for self-defense or signaling
Red Light- 12 red LEDs
- High: 2500 lumens
- Low: 1000 lumens
- Switching
-
- Location: Side
- Type: Push button
- On/off and brightness levels
- Construction Details
-
- Type III anodized-aluminum housing
- Submersible to 98'
- Impact resistant to 3.9'
- Toughened glass lens with anti-reflective coating
- Smooth reflector for maximum light output
- Crenelated bezel
- Digital output regulation
- Intelligent temperature control
- Tripod mount
In the Box Acebeam X80-CRI LED Flashlight 4 x 3100mAh 18650 Batteries 2 x Spare O-Rings Lanyard Holster Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam X80-CRI LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebeam X80-CRI Specs | | | Lumen Output | Ultra-Low: 150 Lumens
Low: 300 Lumens
Medium: 550 Lumens
High: 850 Lumens
Turbo: 2100 Lumens
Maximum: 4500 Lumens | | Illumination Source | 1 x White LED
12 x Red LED | | | | Estimated Runtime | Ultra-Low: 23 Hours
Low: 12.4 Hours
Medium: 6.4 Hours
High: 4 Hours
Turbo: 2.9 Hours
Maximum: 2.9 Hours | | Battery Type | 4 x 18650 Lithium-Ion | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 98.4' / 30 m | | Bezel Diameter | 2.6" / 65.0 mm | | Dimensions | W: 1.9 x L: 4.6" / W: 49.0 x L: 118.0 mm | | Weight | 11.64 oz / 330 g (Without Batteries) |
