User Manual for Acebeam X80-GT LED Flashlight Click to enlarge the picture
Contents of the user manual for the Acebeam X80-GT LED Flashlight
- Product category: Handheld Flashlights Acebeam
- Brand: Acebeam
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebeam Handheld Flashlights
 |
User manual for the Acebeam X80-GT LED Flashlight contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebeam product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!
|

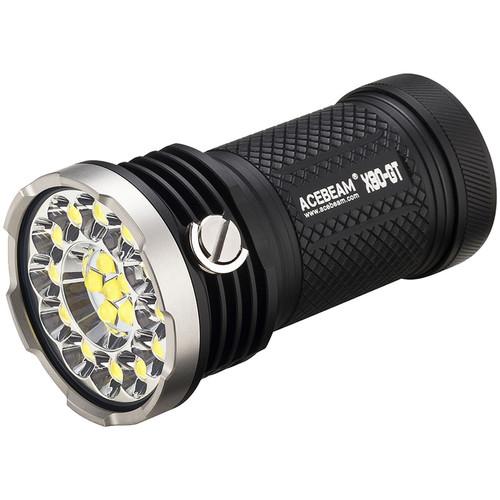

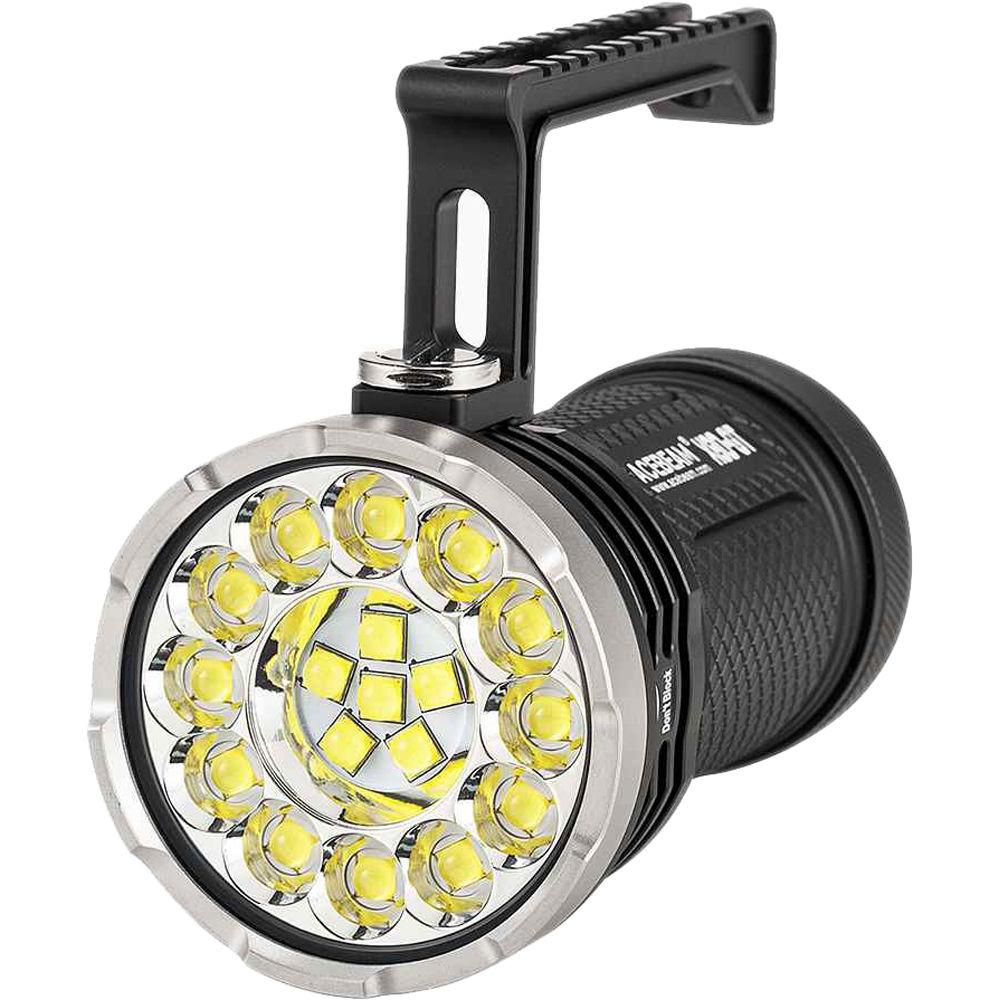

Product description Boasting an output undreamed of in handheld flashlights until very recently, the X80 LED Flashlight is among the most powerful and versatile handheld lights on the market for industrial, adventure, and recreational use. The light comes with four 18650 high-drain batteries, which power 18 Cree XHP50.2 LEDs at seven brightness levels ranging from a 200-lumen ultra-low setting to the 32,500-lumen turbo max, which drops down after one minute to a 4000-lumen output with a runtime of 1.3 hours. A side-mounted push button turns the light on and off and cycles through the brightness levels, and a removable searchlight-style handle is included for comfortable carrying options.The Type III anodized-aluminum housing is IPX8-rated and is designed to withstand accidental immersion as deep as 98', though it is not a dive light and should not be turned on or off underwater. It is impact resistant to 3.9'. Its prodigious output is efficiently conveyed by a smooth reflector and a tempered glass lens with an anti-reflective coating that delivers a 98.3% transmittance rate. A crenelated bezel protects the lens. The light is fitted with a standard 1/4"-20 tripod mount and has a battery power indicator. - Light Performance
-
- Maximum: 32,500 lumens (4000 lumens after 1 minute)
- Turbo: 15,000 lumens (4000 lumens after 2 minutes)
- High: 8000 lumens (4000 lumens after 4 minutes)
- Medium: 4000 lumens
- Low: 2000 lumens
- Ultra-low: 1000 lumens
- Minimum: 200 lumens
- 4000-lumen strobe for self-defense or signaling

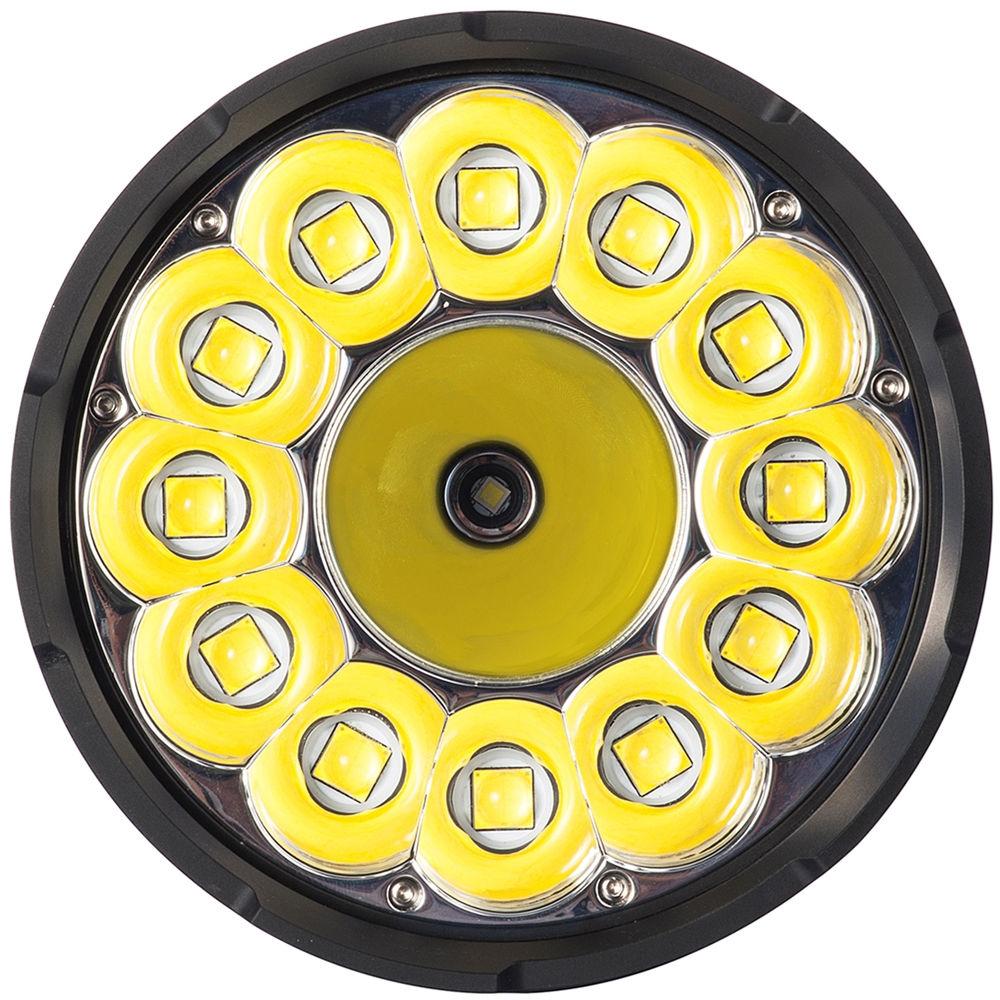

- 18 Cree XHP50.2 white-light LEDs
- Smooth reflector for maximum light output
- Switching
-
- Location: Side
- Type: Push button
- On/off and brightness levels
- Construction Details
-
- Type III anodized aluminum housing
- Submersible to 98'
- Impact resistant to 3.9'
- Toughened glass lens with anti-reflective coating
- Crenelated bezel
- Digital output regulation
- Active and passive overheat protection

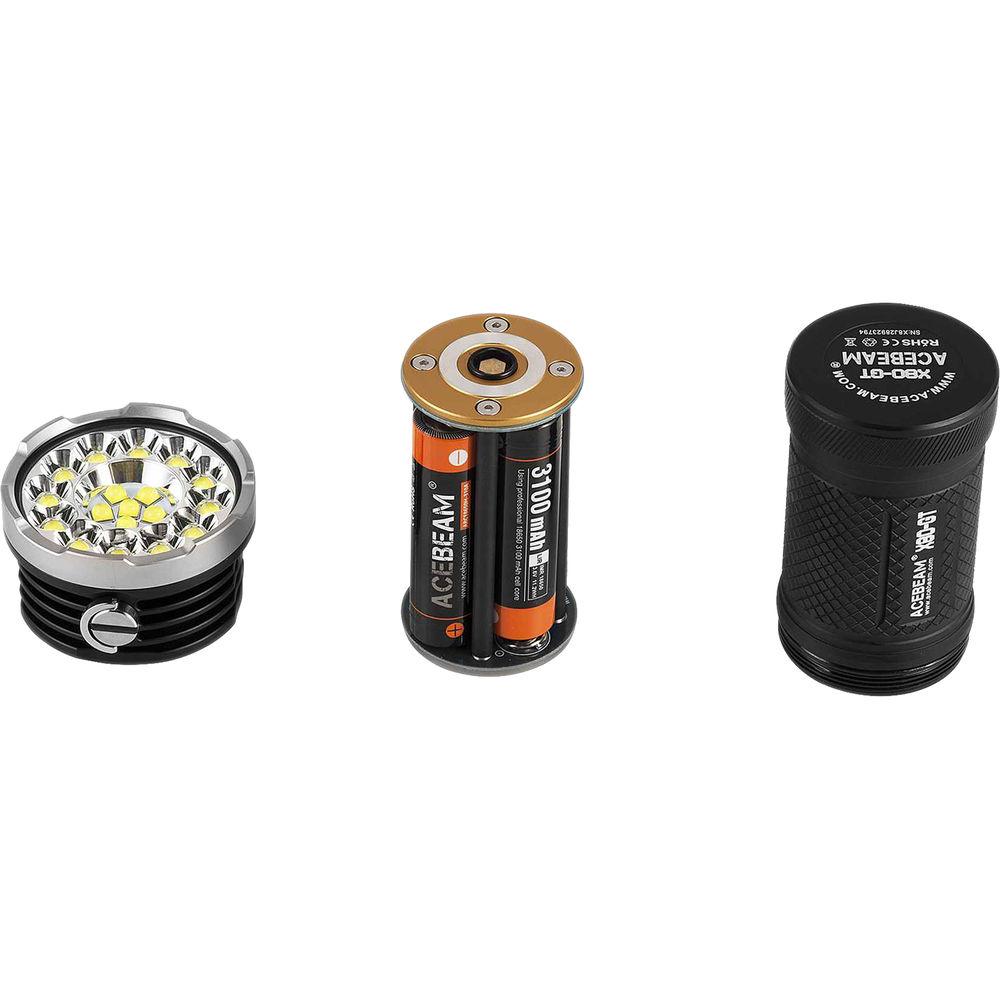

In the Box Acebeam X80-GT LED Flashlight 4 x 3100mAh 18650 Batteries 2 x Spare O-Rings Lanyard Holster Detachable Handle Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam X80-GT LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebeam X80-GT Specs | | | Lumen Output | Minimum: 200 Lumens
Ultra-Low: 1000 Lumens
Low: 2000 Lumens
Medium: 4000 Lumens
High: 8000 Lumens
Turbo: 15,000 Lumens
Maximum: 32,500 Lumens | | Illumination Source | 18 x White LED | | | | Estimated Runtime | Minimum: 34 Hours
Ultra-Low: 7 Hours
Low: 3.5 Hours
Medium: 1.7 Hours
High: 1.5 Hours
Turbo: 1.6 Hours
Maximum: 1.7 Hours | | Battery Type | 4 x 18650 Lithium-Ion | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 98.4' / 30 m | | Bezel Diameter | 2.6" / 6.6 cm | | Dimensions | W: 1.9 x L: 4.6" / W: 4.8 x L: 11.7 cm | | Weight | 11.64 oz / 330 g (Without Batteries) | | | | Package Weight | 1.735 lb | | Box Dimensions (LxWxH) | 7.6 x 4.15 x 3.55" |
