Acebeam X80 LED Flashlight

Search your instruction manual in PDF to download

User Manual for Acebeam X80 LED Flashlight

Click to enlarge the picture
Acebeam X80 LED Flashlight Contents of the user manual for the Acebeam X80 LED Flashlight
  • Product category: Handheld Flashlights Acebeam
  • Brand: Acebeam
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Acebeam Handheld Flashlights

Acebeam X80 LED Flashlight Acebeam X80 LED Flashlight Acebeam X80 LED Flashlight Acebeam X80 LED Flashlight Acebeam X80 LED Flashlight Acebeam X80 LED Flashlight Acebeam X80 LED Flashlight
User manual for the Acebeam X80 LED Flashlight contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Acebeam product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Acebeam user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Acebeam product will considerably shorten its lifespan!



Product description

Boasting 25,000 lumens of white light plus red, green, blue and UV settings, the X80 LED Flashlight is among the most powerful and versatile handheld lights on the market for industrial, adventure and recreational use. The light comes with four 18650 batteries, which power 12 Cree XHP50.2 LEDs, two LEDs got each color and one UV emitter. Brightness levels range from an 80-lumen Ultralow setting to the 25,000-lumen Turbo Max, which drops down after one minute to a 4000-lumen output with a runtime of 1.3 hours. A side-mounted push button turns the light on and off and cycles through the brightness levels.
The Type III anodized-aluminum housing is IPX8-rated and is designed to withstand accidental immersion as deep as 98', though it is not a dive light and should not be turned on or off underwater. It is impact resistant to 3.9'. Its prodigious output is efficiently conveyed by a smooth reflector and a tempered glass lens with an anti-reflective coating that delivers a 98.3% transmittance rate. A crenelated bezel protects the lens. The light is fitted with a standard 1/4"-20 tripod mount, and has a battery power indicator.

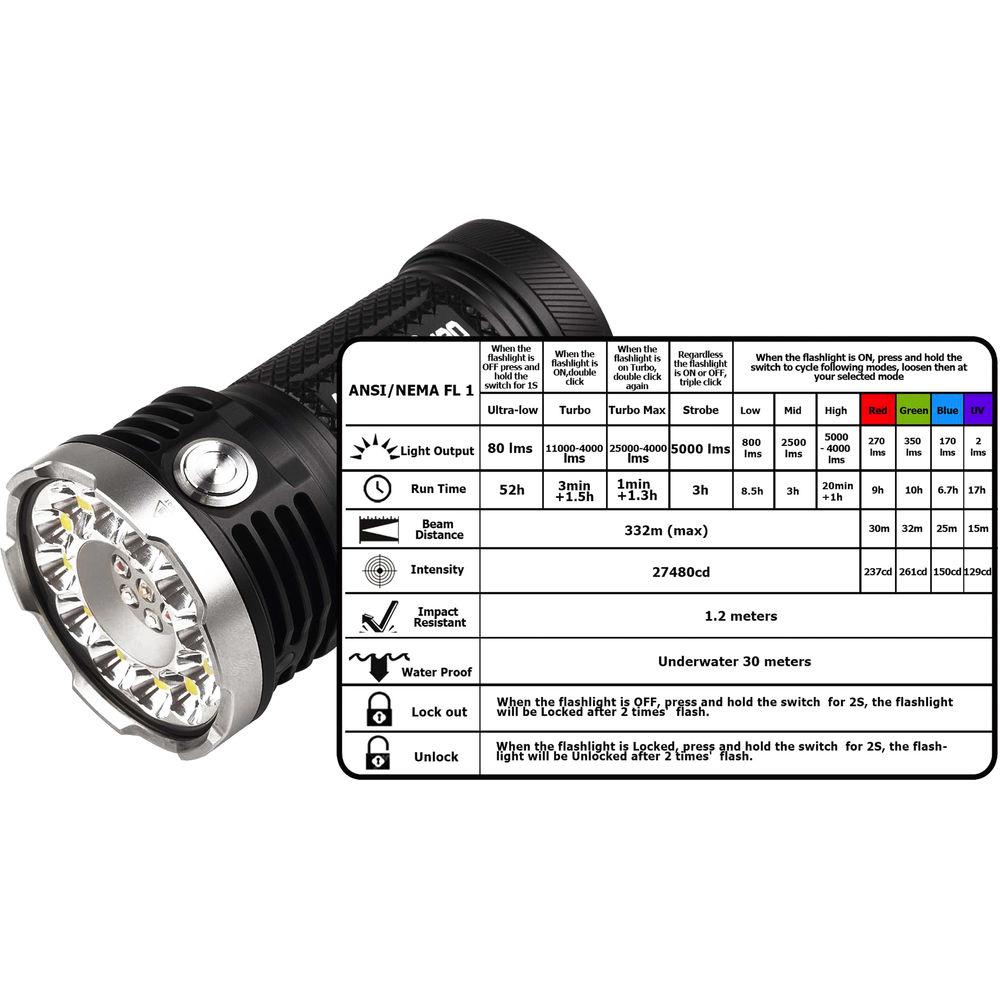

    Light Performance
    • Turbo Max: 25,000 lumens (3 minutes), 4000 lumens (66 minutes)
    • Turbo: 11,000 lumens (3 minutes), 4000 lumens (1.5 hours)
    • High: 5000 lumens (20 minutes), 4000 lumens (1 hour)
    • Medium: 2500 lumens
    • Low: 800 lumens
    • Ultralow: 80 lumens
    • 6000-lumen strobe for self-defense or signaling
    • Runtime: 1 minute-52 hours (strobe: 3 hours)

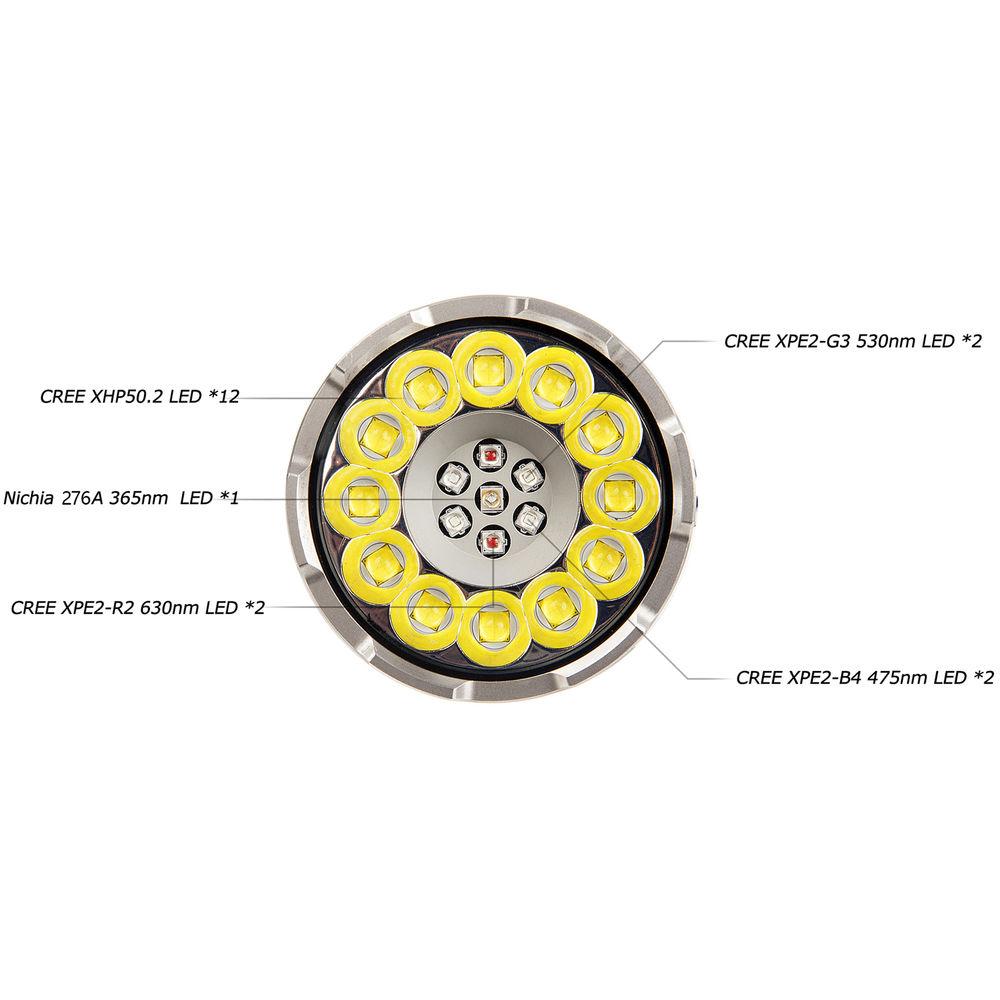

    • Twelve Cree XHP50.2 LEDs
    • Red, Green & Blue Cree XPE2 LEDs
    • Nichia 276A UV LED
    • Smooth reflector
    Switching
    • Location: side
    • Type: push button
    • On/off and brightness levels
    • Lockout mode prevents unintentional activation
    Construction Details
    • Aluminum housing with IPX8 rating
    • Submersible to 98.4'
    • Impact resistant to 3.9'
    • Toughened glass lens with anti-reflective coating
    • Crenelated bezel

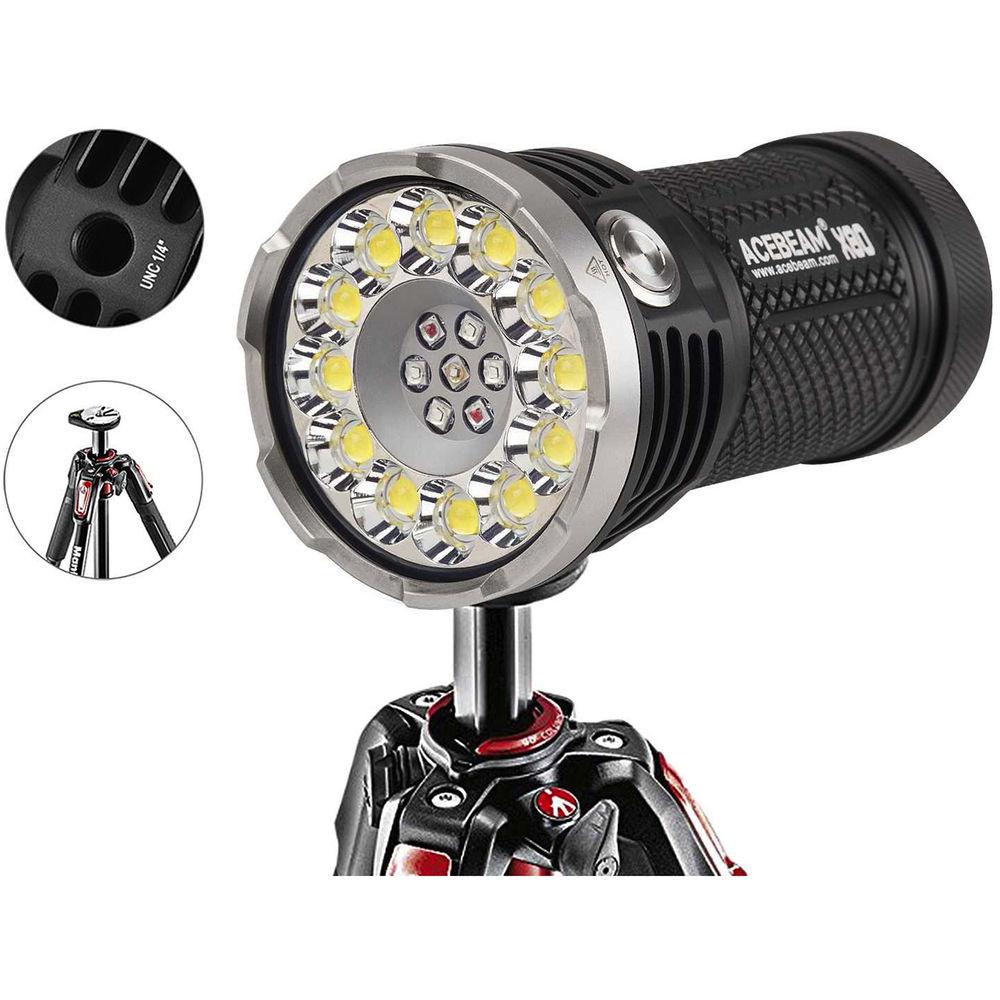

    • Tripod mount
    • Digital output regulation
    • Overheat protection
    • Battery power indicator LED

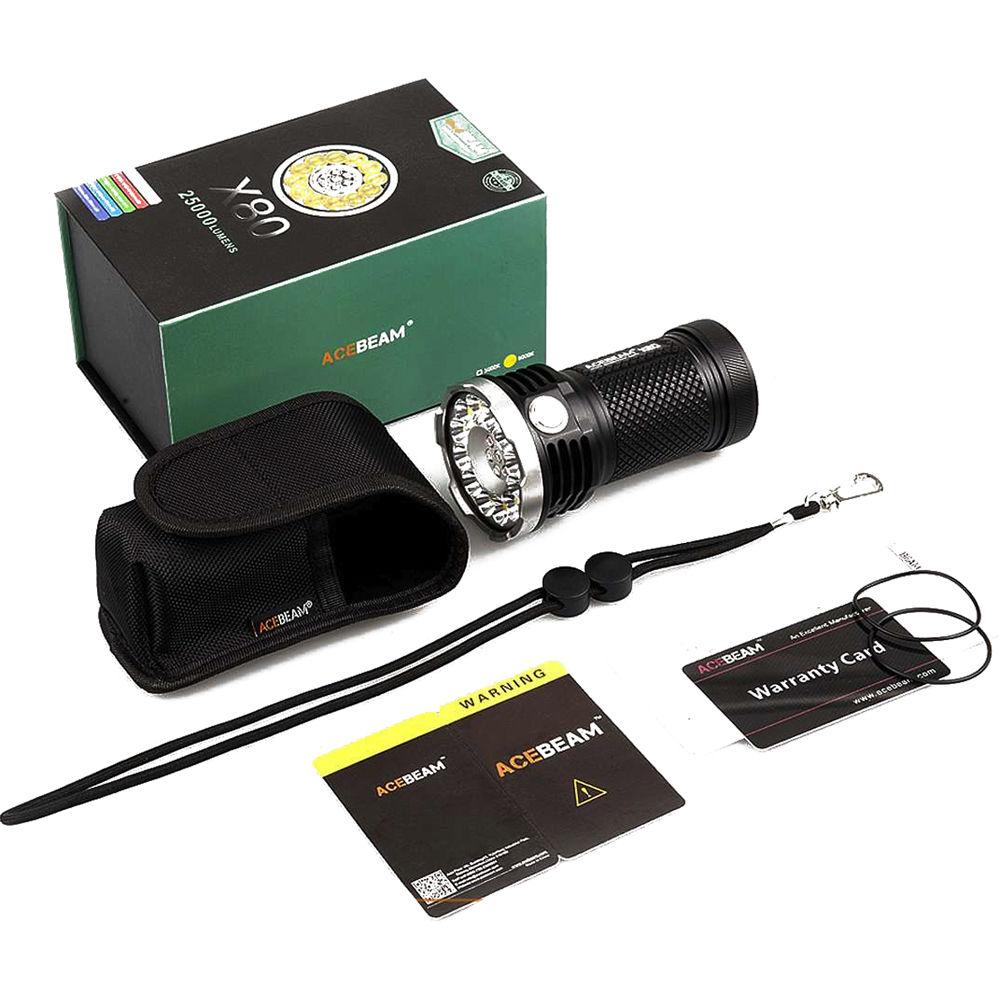

In the Box Acebeam X80 LED Flashlight
  • 2 x Spare O-Ring
  • Lanyard
  • Holster

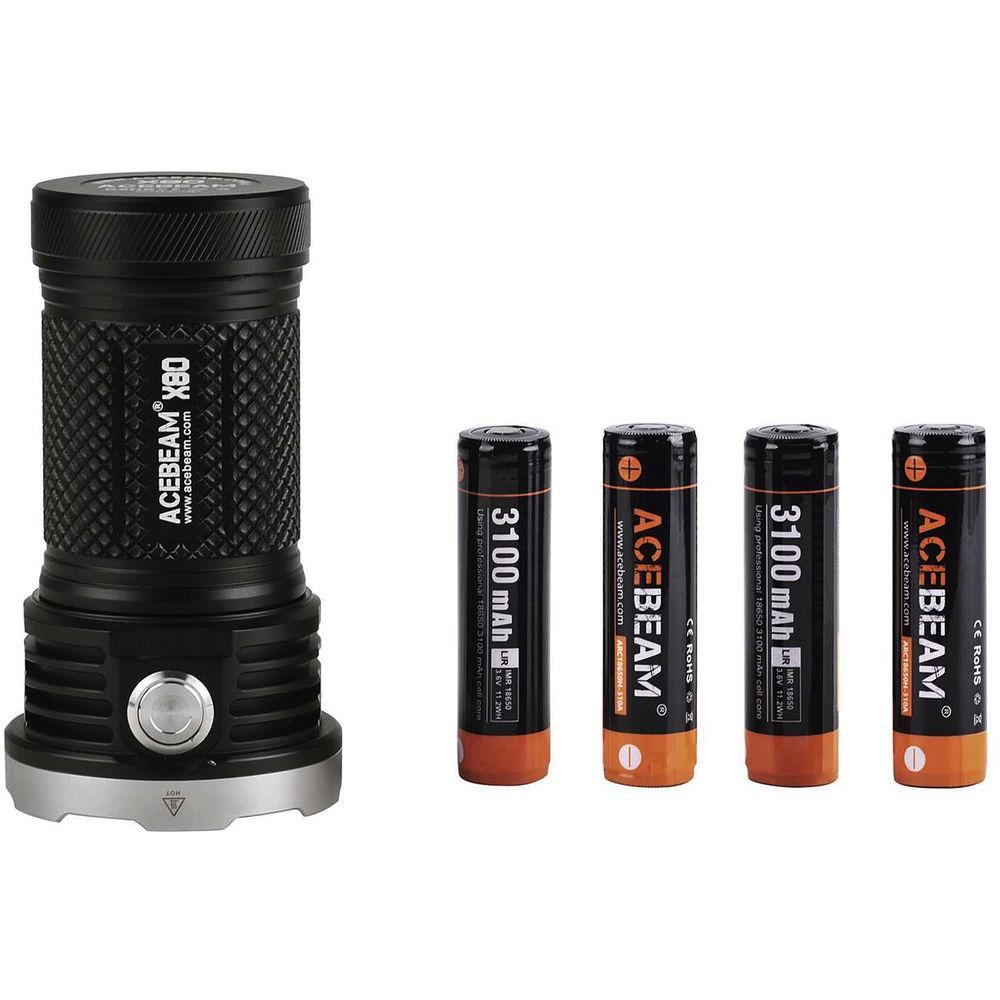

  • 4 x 3100mAh 18650 Battery
  • Limited 5-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Acebeam X80 LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:


    User manual for Acebeam X80 LED Flashlight can be downloaded below, so the upload option is not active.


    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%

    User manual for Acebeam X80 LED Flashlight can be downloaded below, so the upload option is not active.

    Download User Manual

    The user manual for the Acebeam X80 LED Flashlight can be downloaded in PDF format at the link stated below.
    Download PDF user manual - Acebeam X80 LED FlashlightDownload PDF User Manual - https://www.search-manual.com/ upload/ acebeam-x80-led-flashlight-357910-user-manual.pdf
    (PDF file, 0.77 MB)


    Technical parameters

    Acebeam X80 Specs

    Lumen Output High (White): 5000 Lumens
    Medium (White): 2500 Lumens
    Low (White): 500 Lumens
    Turbo (White): 25,000 Lumens
    Minimum (White): 80 Lumens
    Green: 350 Lumens
    Red: 270 Lumens
    Blue: 170 Lumens
    UV: 2 Lumens
    Illumination Source 12 x White LED
    2 x Blue LED
    2 x Red LED
    2 x Green LED
    1 x UV LED
    Colored Output Red: 630 nm
    Blue: 475 nm
    Green: 530 nm
    UV: 365 nm
    Estimated Runtime High (White): 1.4 Hours
    Medium (White): 3 Hours
    Low (White): 8.5 Hours
    Turbo (White): 1 Minute
    Minimum (White): 52 Hours
    Green: 10 Hours
    Red: 9 Hours
    Blue: 6.7 Hours
    UV: 17 Hours
    Battery Type 4 x 18650 Lithium-Ion
    Internal Battery Capacity 3100 mAh
    Water Resistance Waterproof, IPX8

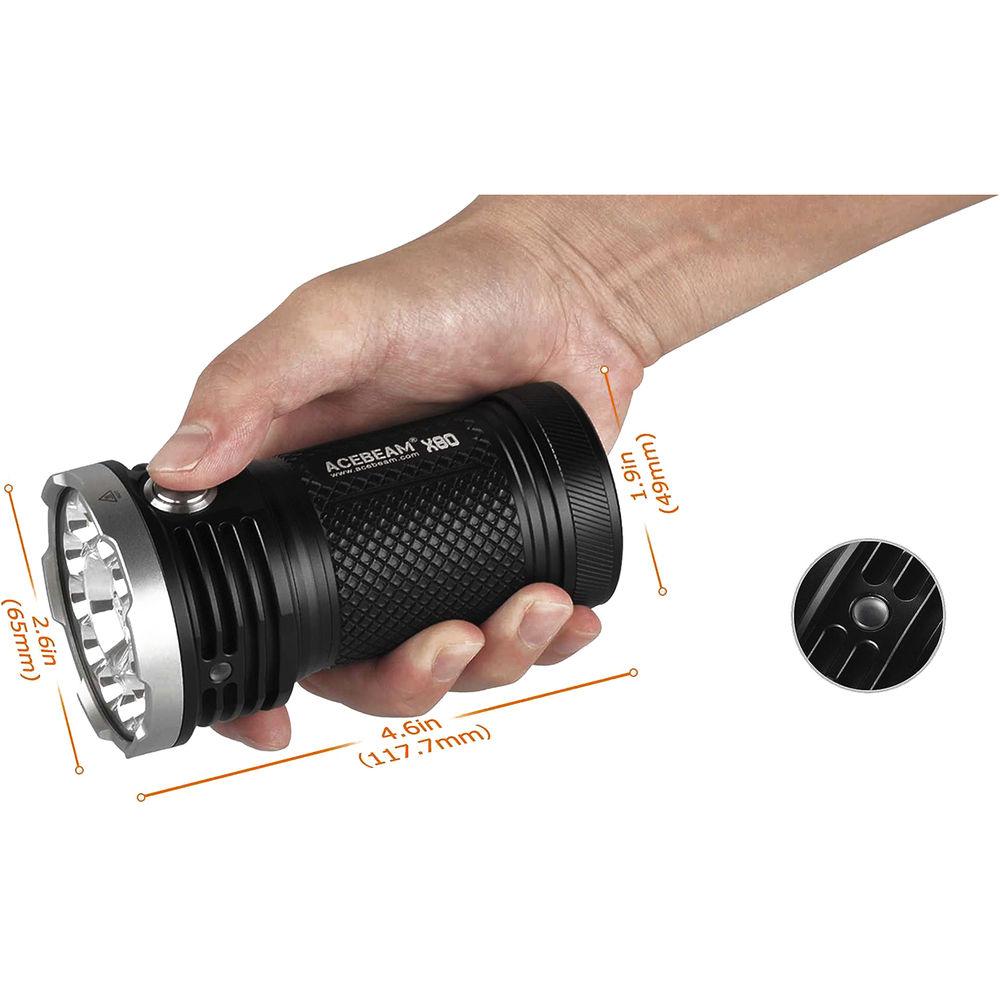

    Bezel Diameter 2.6" / 6.5 cm
    Dimensions
