Product description Designed for hunters who need to track their game, the X80-UV Rechargeable LED Flashlight from Acebeam has additional applications in forensics, manufacturing, and repairs. It's also a powerful white-light torch with a maximum output of 10,000 lumens. The X80-UV employs 16 365nm Nichia 276A ultra-violet LEDs with high (12W) and low (4W) settings, and four Cree XHP50.2 white light LEDs with six brightness levels from 100 to 10,000 lumens. A side-mounted push button turns the light on and off and cycles through the output levels.
The Type III anodized-aluminum housing is designed to withstand accidental immersion as deep as 98', though it is not a dive light and should not be turned on or off underwater. It is impact resistant to 3.9'. Its prodigious output is efficiently conveyed by a smooth reflector and a tempered glass lens with an anti-reflective coating that delivers a 98.3% light transmission rate. - Light Performance
-
- Minimum: 100 lumens
- Ultra-low: 400 lumens
- Low: 1400 lumens
- Medium: 2200 lumens
- High: 5500 lumens (2600 lumens after 7 minutes)
- Turbo: 10,000 lumens (2700 lumens after 2 minutes)
- 5000-lumen strobe for self-defense or signaling

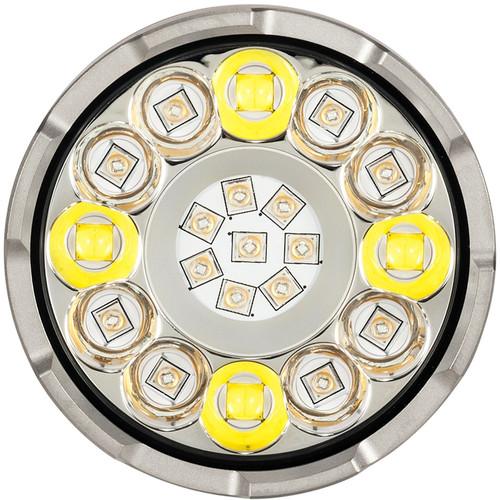

- 16 Nichia 276A UV LEDs
- 4 Cree XHP50.2 LEDs
- Smooth reflector for max light output
- Digitally regulated output for consistent performance
- Switching
-
- Type: Push button
- Location: Side
- On/off and brightness levels
- Construction Details
-
- Aluminum-alloy housing
- Type III hard anodized finish
- Can withstand submersion to 98'
- Anti-reflective coated and tempered lens
- Knurled grip for sure handling
- Crenellated bezel design
- Runs on four 18650 high-drain rechargeable batteries
- Intelligent temperature control and heat-dispersing fins
In the Box Acebeam X80-UV Rechargeable LED Flashlight 4 x 18650 Batteries Holster Lanyard 2 x Spare O-Rings Limited 5-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebeam X80-UV Rechargeable LED Flashlight in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebeam X80-UV Specs | | | Lumen Output | Minimum (White): 100 Lumens
Ultra-Low (White): 400 Lumens
Low (White): 1400 Lumens
Medium (White): 2200 Lumens
High (White): 5500 Lumens
Turbo (White): 10,000 Lumens | | Illumination Source | 16 x UV LED
4 x White LED | | | | Estimated Runtime | Minimum (White): 47 Hours
Ultra-Low (White): 16.3 Hours
Low (White): 4.9 Hours
Medium (White): 3 Hours
High (White): 2.5 Hours
Turbo (White): 2.5 Hours
Low (UV): 4.2 Hours
High (UV): 1.5 Hours | | Battery Type | 4 x 18650 Lithium-Ion | | | | Lens Material | Glass | | Material of Construction | Aluminum | | Water Resistance | Waterproof to 98' / 29.9 m | | Bezel Diameter | 2.6" / 6.5 cm | | Dimensions | W: 1.9 x L: 4.6" / W: 4.9 x L: 11.7 cm | | Weight | 11.64 oz / 330 g (Without Batteries) |
