Product description

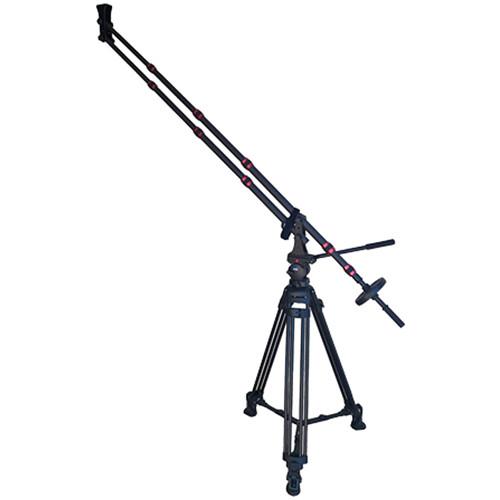

• CMJ-2 Mini Jib Arm The CMJ-2 Mini Jib Arm from Acebil is a compact jib system that enables smooth movement for cameras up to 8.8 lb. It is made from carbon fiber piping with aluminum alloy hardware.
• P-20MX Professional Tripod System The Acebil P-20MX Professional Tripod System includes the T750 Aluminum Tripod, H20 Fluid Head, MS-3 Mid-level Spreader, and the S-50 Carry Case. Capable of supporting up to 13.2 lb (6 kg), the P-20MX provides a professional tripod system solution. The T750 can be adjusted to provide a height ranging from 26.4-56.7". Operation on flat surfaces is rendered possible via the MS-3 Mid-level Spreader that holds the legs in position. You can achieve fixed counter balance, pan, and tilt drag by means of the included H20 Fluid Head. A convenient 75mm standard leveling base is also provided allowing tilt angles of +90° / -80°. You can leverage the slide range of ±35mm to enable travel capabilities essential in balancing uneven configurations. Camera mounting is provided via a side plate. You can use the S50 Soft Carry Case for storing the P-20MX Tripod System.
  • Supports up to 13.2 lb (6 kg)
  • Includes T750 Aluminum Tripod that can be adjusted to provide a height ranging from 26.4-56.7"
  • Includes H20 Fluid Head that allows you to achieve fixed counter balance, pan, and tilt drag
  • H20 Fluid Head integrates a convenient 75mm standard leveling base
  • Allows tilt angles of +90° / -80°
  • Offers a slide range of ±35mm to enable travel capabilities essential in balancing uneven configurations
  • Allows camera mounting via side plate
  • Includes MS-3 Mid-level Spreader that holds the tripod legs in position to allow operation on flat surfaces
  • Includes S50 Carry Case for storing the tripod system
• S-50 Case for P-20, P-30, P-40 or P-50 Tripod The Acebil S-50 Case (Black) is a replacement for the case supplied with an Acebil P-20, P-30, P-40 or P-50 tripod.
  Tripod Case Basics
  • • Fits Acebil P-20, P-30, P-40 or P-50 tripod
    • Replacement item
    • Flexible nylon, zippered, lightly padded case
    • Two carrying handles

• Limited 1-Year Warranty

• Tripod (T750)

• H20 Head

• GS-3 Ground Spreader for T750/T752 Tripods

• S-50 Case for P-20, P-30, P-40 or P-50 Tripod

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• CMJ-2 Mini Jib Arm

  Construction	Carbon fiber and aluminum alloy
  Payload Capacity	8.8 lb (4 kg)
  Counterbalance System	Weighted plates at back of arm
  Height Range	20.8 to 62.2" (53 to 158 cm)
  Tilt Lock	Yes
  Tilt Drag	No
  Pan Lock	Yes
  Spring Loaded Counter Balance	No
  Pan Range	360°
  Tripod Attachment	1/4"-20
  Head Attachment	75 mm ball
  Leveling Indicators	Bubble level
  Weight	12.7 lb (5.7 kg)

• P-20MX Professional Tripod System

  Payload	Approx. 13.2 lbs (6kg)
  Counterbalance	Fix
  Drag Control	Fix
  Tilt Angle	+90° / -80°
  Plate	Camera plate: slide plate Plate attachment: 1/4 screw with video pin Spare Screw: 3/8" screw (2 pcs) Slide Range +35 / -35mm
  Weight	11.7 lbs (5.3kg)
  Height	39-63.4" (99-160cm)
  Ball Diameter	75mm
  Sections	1 stage

  Box Dimensions (LxWxH)	46.0 x 9.0 x 9.0"

• S-50 Case for P-20, P-30, P-40 or P-50 Tripod

  Carrying/Transport Options	Connecting Handles
  Type of Closure	Zipper
  Exterior Material	Nylon
  Padded	Yes
  Interior Dimensions	H: 10.0 x W: 8.0 x L: 45.0" / H: 25.4 x W: 20.3 x L: 114.3 cm
  Weight	2.8 lb / 1.3 kg

  Box Dimensions (LxWxH)	21.7 x 15.0 x 5.2"
