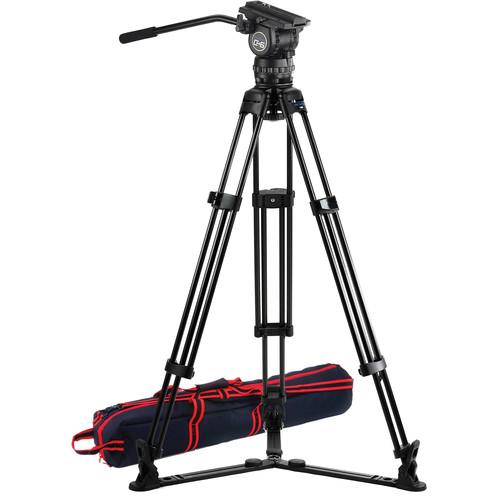

User Manual for Acebil CS-680G Professional Tripod System Click to enlarge the picture
Contents of the user manual for the Acebil CS-680G Professional Tripod System
- Product category: Tripod Systems Acebil
- Brand: Acebil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebil Tripod Systems
|
User manual for the Acebil CS-680G Professional Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebil product will considerably shorten its lifespan!
|
Product description The Acebil CS-680G Professional Tripod System features a 100mm ball CH6 Fluid Head, T1000 Aluminum Tripod, GS-3 Ground Spreader, and a S-50 Carry Case. The head supports loads up to 33 pounds and has a 6-step counterbalance and independent 6-step pan and tilt drag. It comes equipped with a sliding quick-release plate and pan handle.
The 100mm bowl T1000 tripod features a 1-stage design and aluminum construction. It has a height range of 32.2 to 53.3" and comes with a GS-3 Ground Spreader for enhanced stability. A carrying case is included for easy storage and transport of the tripod system. - Key Features
-
- Supports up to 33 lb
- CH6 Fluid Head (100mm ball)
- 6-Step counterbalance
- 6-Step pan/tilt drag
- LED illuminated bubble level
- 1-Stage T1000 aluminum tripod with 100mm bowl
- Tripod height range: 32.2 to 53.3"
- GS-3 Ground Spreader enhances tripod stability and holds the tripod legs in position
- S-50 Carry Case included for storing and transporting the tripod system
In the Box Acebil CS-680G Professional Tripod System CH6 Fluid Head (100mm Ball) T1000G Tripod Legs (100mm Bowl) S-50 Case for P-20, P-30, P-40 or P-50 Tripod Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil CS-680G Professional Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebil CS-680G Specs | | | Payload | Approx. 33 lb (15 kg) | | Ball Diameter | 100 mm | | Counterbalance | 6 steps plus zero | | Pan Drag | 6 steps plus zero | | Tilt Drag | 6 steps plus zero | | Pan Lock | Yes | | Tilt Lock | Yes | | Tilt Range | +85° / -75° | | Panning Range | 360° | | Quick Release Plate | Yes | | Leveling Bubble / Illuminated | Yes / Yes | | Weight | Not specified by manufacturer | | | | Load Capacity | 88 lb (40 kg) | | Pipe Material | Aluminum | | Height | 32.2 to 53.3" (82 to 143 cm) | | Bowl Diameter | 100 mm | | Sections | 1 stage | | Spreader | Ground level | | Weight | 7.9 lb (3.6 kg) | | | | Box Dimensions (LxWxH) | 46.0 x 19.0 x 12.0" |
