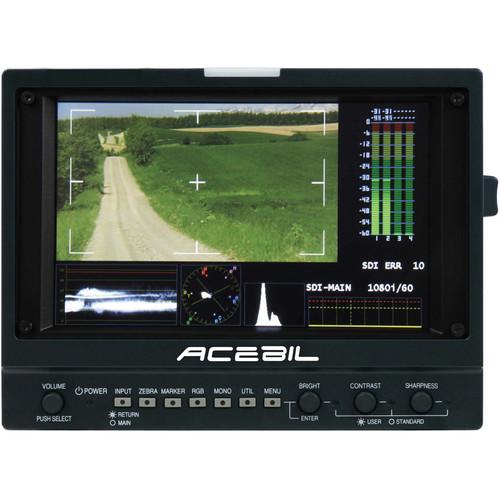

Product description The Acebil HDF-700V 7" Field Monitor and Viewfinder serves as both an on-camera monitor and viewfinder, and features a 7" LCD panel as well as HD-SDI and component BNC inputs. It offers a slew of professional features including a 15-pin VGA viewfinder interface, return video with PiP, adjustable peaking, SDI loop-through to optional additional devices, an advanced zebra function, and displays for waveform, histogram, and vectorscope.The return video function allows the operator to toggle between the main signal and program, or a second monitor feed. Other highlights include audio level metering and monitoring, analog audio output via dual XLRs, a built-in speaker, and the use of V-Mount batteries. Monochrome and RGB modes are available, and the tally feature provides both low and high intensity options. Inputs/Outputs - HD/SD-SDI and component (Y/Pb/Pr) inputs
- HD/SD-SDI return video input
- Two 8-pin (input/output) return control
- Viewfinder Interface: HD 15-Pin VGA
- Dual XLR analog audio output generated from embedded SDI audio
- Tally input and front/rear tally indicators
Display Features - Return video display with PiP function
- Red, Green, Blue, or B&W modes
- Marker Matte Modes: Clear, 1/2 tone, and black
- Resolution of 800 x 480 x 3 RGB
- Peaking with adjustable levels
- Zebra function adjustable at upper and lower limits
- Configurable user function buttons
- On-screen audio level metering
Measurements - Waveform, histogram, and vectorscope displays
Additional Features - Powered through a 12V 4-pin XLR or a V-Mount battery
- Timecode tally function with front and rear displays
- Built-in speaker with volume control
In the Box Acebil HDF-700V 7" Field Monitor and Viewfinder Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil HDF-700V 7" Field Monitor and Viewfinder in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebil HDF-700V Specs | Monitor Type | TFT-LCD | | Screen Size (Diagonal) | 7" | | Video Format Options | 1080p30
1080i60
720p60
480i60 | | Resolution | 800 x 480 | | Inputs/Outputs | 2 x HD/SD-SDI in (BNC)
1 x HD/SD-SDI out (BNC)
3 x HD component (Y/Pb/Pr) in (BNC) | | Battery Mount | V-Mount | | Return Control | 2 x 8-Pin (input/output) | | Dimensions (WxHxD) | 7.7 x 6.0 x 2.0" / 195 x 153 x 50 mm | | Weight | 2.2 lb / 1 kg |
