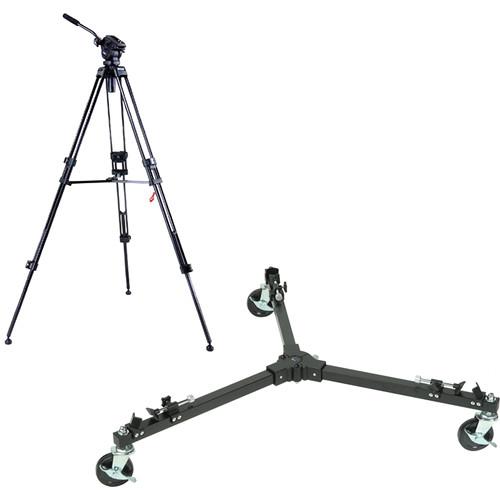

User Manual for Acebil I-605DX Prosumer Video Tripod Kit with D1 Dolly Click to enlarge the picture
Contents of the user manual for the Acebil I-605DX Prosumer Video Tripod Kit
- Product category: Tripod Systems Acebil
- Brand: Acebil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebil Tripod Systems
|
User manual for the Acebil I-605DX Prosumer Video Tripod Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebil product will considerably shorten its lifespan!
|
Product description The Acebil I-605DX Prosumer Video Tripod Kit with D1 Dolly from B&H combines the I-605DX aluminum alloy tripod with fluid head and a 3-wheel tripod dolly for camcorder support with smooth and seamless movement. The I-605DX is able to support camcorders up to 6.6 lb and its maximum height is 59", it comes with a fluid video head with quick release plate. The 605 standard head provides counterbalance and drag and tilt angles of +90° / -60°. The tripod features a middle brace for assured stability on flat surfaces and comes with a soft carry case for storage and transport. The included aluminum alloy dolly securely holds the feet of the tripod in place and with its 3" (75mm) wheels, allows for smooth rolling and tracking movements. The dolly is able to support up to 66 lb and its leg extension from center is 1.7' The dolly's legs fold together for easy transport. - Acebil I-605DX Prosumer Tripod System The Acebil I-605DX Prosumer Tripod System includes a 2 stage, lightweight (7.9 lb) aluminum tripod, the Standard 605 Fluid Head, a middle brace, and the S-7 Carry Case. Capable of supporting up to 6.6 lb (3kg), the I-605DX provides an optimum entry-level solution for amateur use of handycams and camcorders. The aluminum tripod can be adjusted to a height ranging from 30.3-59". Operation on flat surfaces is rendered possible via the middle brace that holds the legs in position. You can achieve fixed counter balance and drag by means of the included 605 standard head. A convenient standard leveling base with 65mm ball diameter is also provided allowing tilt angles of +90° / -60°. Camera mounting is provided via a quick release slide plate. You can use the S-7 Soft Carry Case for storing the I-605DX tripod system.
- Supports up to 6.6 lb (3kg)
- Offers an optimum entry-level solution for amateur use of handycams and camcorders
- Includes a 2 stage, lightweight (7.9 lb) aluminum tripod that can be adjusted to a height ranging from 30.3-59"
- Includes a middle brace that holds the tripod legs in position to allow operation on flat surfaces
- Provides fixed counter balance and drag via the 605 standard head
- 605 standard head integrates a convenient standard leveling base with 65mm ball diameter
- Allows tilt angles of +90° / -60°
- Provides camera mounting via quick release slide plate
- Includes the S-7 Carry Case for storing the tripod system
- Acebil D1 Dolly for Prosumer Tripods The Acebil D1 Dolly for Prosumer Tripods allows smooth and seamless movement of cameras and tripods weighing up to 66 lb (30 kg). It is equipped with 75mm wheels and is made of aluminum.
- Allows smooth and seamless movement of cameras weighing up to 66 lb (30 kg)
- Equipped with 75mm wheels and has an aluminum construction
- Foldable length - 18.1 x 7.1 x 5.9" (46 x 18 x 15 cm)
- Leg extension from center - 44 mm
In the Box - I-605DX Prosumer Tripod System stvbzyeqfcyebdaxrexzzrrwtqfdxyutrd
- Tripod
- Standard 605 Fluid Head
- Middle Brace
- S-7 Case for I-605DX Tripod
- Limited 1-Year Warranty
- D1 Dolly for Prosumer Tripods
Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil I-605DX Prosumer Video Tripod Kit with D1 Dolly in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Acebil I-605DX Prosumer Tripod System
| Payload | Approx. 6.6 lb (3kg) | | Tilt Angle | +90° / -60° | | Counterbalance | Fix | | Drag Control | Fix | | Plate | Camera plate: Quick release slide plate
Plate attachment: 1/4 screw with video pin | | Weight | 7.9 lb (3.6kg) | | Height | 3-59" (77-150cm) | | Ball Diameter | 65mm | | Sections | 2 stage | | | | Box Dimensions (LxWxH) | 31.0 x 6.8 x 6.5" | - Acebil D1 Dolly for Prosumer Tripods
| Payload | 66 lb (30kg) | | Material | Pipe material: aluminum | | Weight | 4.2 lb (1.9kg) | | Dimensions | Collapsed dimensions: 18.1 x 7.1 x 5.9" (46 x 18 x 15cm) | | Wheel Diameter | 3" (75mm) | | Extension | Leg extension from center: 1.7" (44mm) | | | | Box Dimensions (LxWxH) | 19.4 x 7.8 x 6.6" |
