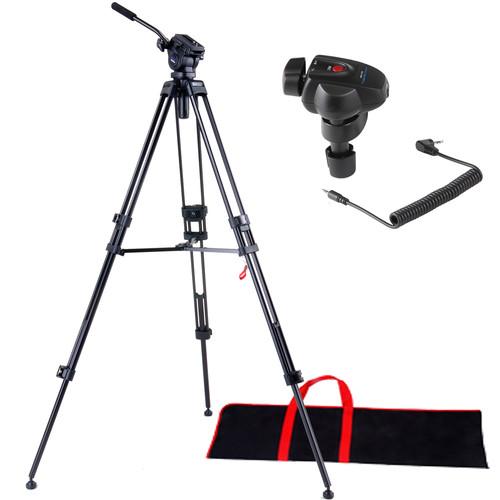

User Manual for Acebil I-605DX Tripod System with SZ300 Universal Zoom Controller Click to enlarge the picture
Contents of the user manual for the Acebil I-605DX Tripod System with SZ300
- Product category: Tripod Systems Acebil
- Brand: Acebil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebil Tripod Systems
|
User manual for the Acebil I-605DX Tripod System with SZ300 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebil product will considerably shorten its lifespan!
|
Product description The I-605DX Tripod System with SZ300 Universal Zoom Controller from Acebil includes a two-stage aluminum tripod, H605 fluid head, S-9 carry case, and SZ300 zoom controller. Capable of supporting up to 8.8 lb, the I-605DX provides an optimum entry-level solution for mounting handycams and camcorders. A leveling base with 65mm ball is provided, allowing for +90/-60° tilt angles. In addition, the camera mounting is provided via a quick release slide plate.
The SZ-300 zoom controller is designed to work with the Canon protocols, Sony/Canon LANC, JVC HDV cameras, and Panasonic MiniDV or HDV cameras. It features a built-in auto switch and can be used as a 3-in-1 remote. i-605DX Tripod - Height adjustment range of 30.3 to 59"
- Maximum payload of 8.8 lb
SZ-300 Controller - Zoom lever can be used for variable zoom speed
In the Box Acebil I-605DX Tripod System with SZ300 Universal Zoom Controller 2-Stage Tripod Standard 605 Fluid Head S-9 Case for I-705DX Tripod xytxvcqx SZ-300 Zoom Controller User Manual PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil I-605DX Tripod System with SZ300 Universal Zoom Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebil I-605PK Specs | | | Payload | 8.8 lb / 4 kg, approx. | | Tilt Angle | +90° / -60° | | Counterbalance | Fixed | | Drag Control | Fixed | | Plate | Camera Plate: Quick release slide plate
Plate Attachment: 1/4"-20 screw with video pin | | Weight | 7.2 lb / 3.3 kg | | Height | 30.3 to 59" / 77 to 150 cm | | Ball Diameter | 65 mm | | Sections | 2-stage | | | | Distance | Clamp: ψ 0.39 to 1.18" / 10 to 30 mm | | Connection | Mini A/V remote jack | | Cable Length | 20" / 510 mm |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 92 owners. Add your rating and experience with the product.
