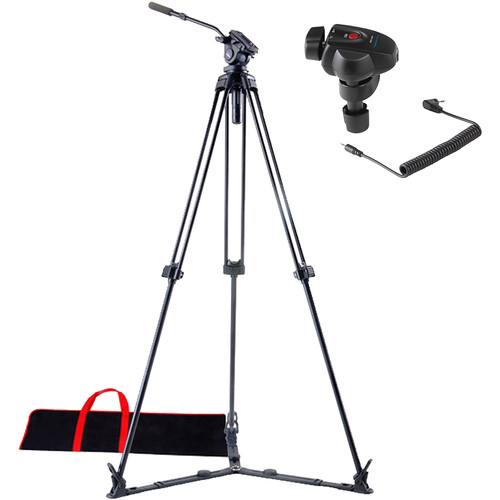

User Manual for Acebil J-805GX Prosumer Tripod System & SZ-300 Zoom Controller Bundle Click to enlarge the picture
Contents of the user manual for the Acebil J-805GX Prosumer Tripod System &
- Product category: Tripod Systems Acebil
- Brand: Acebil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebil Tripod Systems
|
User manual for the Acebil J-805GX Prosumer Tripod System & contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebil product will considerably shorten its lifespan!
|
Product description This Acebil Bundle features the J-805GX Prosumer Tripod System and the SZ-300 Zoom Controller. It supports up to 8.8 lb loads and allows you to control zoom and record start/stop remotely. The tripod system includes a fluid head, quick release plate, ground spreader, and carry case. The zoom controller comes with a 20" coiled cable and is compatible with Canon protocols, Sony/Canon LANC, and JVC and Panasonic HDV cameras. - J-805GX Prosumer Tripod System The Acebil J-805GX Prosumer Tripod System includes a single stage, lightweight (9.1 lb / 4.12kg) aluminum tripod, the 805 fluid head, a ground spreader, and the s-30 carry case. Capable of supporting up to 8.8 lb (4kg), the J-805GX provides an optimum solution for small and high performance MiniHD camcorders.
The aluminum tripod can be adjusted to a height ranging from 34.2“ to 59” (86.8 - 149.8 cm), and the ground spreader holds the legs in two positions (45° and 90°) and provides augmented stability and rigidity. You can achieve fixed counter balance and drag by means of the included 805 standard head. A convenient standard leveling base with 75mm ball diameter is provided allowing tilt angles of +90° / -60°.
Camera mounting is provided via a quick release slide plate. You can use the s-30 soft carry case for storing the J-805GX tripod system. - Supports up to 8.8 lb (4kg)
- Offers an optimum solution for small and high performance MiniHD camcorders
- Includes a single stage, lightweight (9.1 lb / 4.12kg) aluminum tripod that can be adjusted to a height ranging from 34.2" to 59" (86.8 - 149.8 cm)
- Includes a ground spreader that offers 45° and 90° positions and holds the tripod legs in position providing augmented stability and rigidity
- Provides fixed counter balance and drag via the 805 head
- 805 standard head integrates a convenient standard leveling base with 75mm ball diameter
- Allows tilt angles of +90° / -60°
- Provides camera mounting via quick release slide plate
- Includes the s-30 carry case for storing the tripod system
- SZ-300 Zoom Controller The SZ-300 Zoom Controller from Acebil is designed to work with the Canon protocols, Sony/Canon LANC, JVC HDV cameras, and Panasonic MiniDV or HDV cameras. It features a built-in auto switch, variable zoom, record start/stop, and can be used as a 3-in-1 remote.
- Zoom lever can be used for variable zoom speed
In the Box Bundle Items J-805GX Prosumer Tripod System zabzrusqzarzbvuwrbxrrazqccesswdcq - S-30 Case for J-805Mx or J-80GX Tripod
SZ-300 Zoom Controller Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil J-805GX Prosumer Tripod System & SZ-300 Zoom Controller Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - J-805GX Prosumer Tripod System
Payload | Approx. 8.8 lb (4kg) | Tilt Angle | +90° / -60° | Counterbalance | Fix | Drag Control | Fix | Plate | Camera plate: Quick release slide plate Plate attachment: 1/4 screw with video pin | Weight | 9.1 lb (4.1kg) | Height | 34.2-59" (82-158cm) | Ball Diameter | 75mm | Sections | 1 stage | | Box Dimensions (LxWxH) | 39.3 x 7.8 x 7.8" | - SZ-300 Zoom Controller
Distance | Clamp: ψ 0.39 to 1.18" (10 to 30 mm) | Connection | Mini A/V remote jack | Cable Length | 20" (51.0 cm) | | Box Dimensions (LxWxH) | 5.2 x 4.0 x 2.9" |
