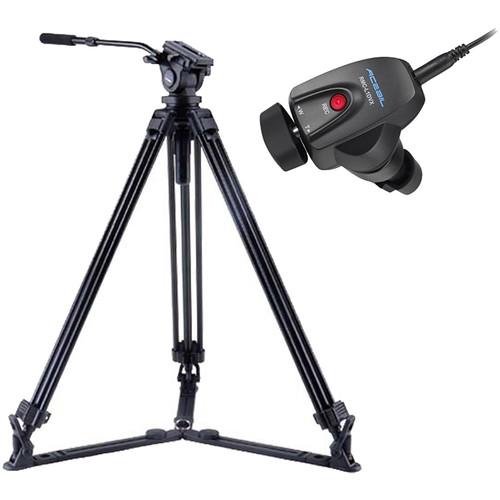

Acebil J-805GX Tripod & Zoom Controller

User Manual for Acebil J-805GX Tripod & Zoom Controller Kit for Panasonic Cameras

• Product category: Tripod Systems Acebil
• Brand: Acebil
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for Acebil Tripod Systems

Product description

• J-805GX Prosumer Tripod System The Acebil J-805GX Prosumer Tripod System includes a single stage, lightweight (9.1 lb / 4.12kg) aluminum tripod, the 805 fluid head, a ground spreader, and the s-30 carry case. Capable of supporting up to 8.8 lb (4kg), the J-805GX provides an optimum solution for small and high performance MiniHD camcorders.

  The aluminum tripod can be adjusted to a height ranging from 34.2“ to 59” (86.8 - 149.8 cm), and the ground spreader holds the legs in two positions (45° and 90°) and provides augmented stability and rigidity. You can achieve fixed counter balance and drag by means of the included 805 standard head. A convenient standard leveling base with 75mm ball diameter is provided allowing tilt angles of +90° / -60°.

  Camera mounting is provided via a quick release slide plate. You can use the s-30 soft carry case for storing the J-805GX tripod system.
  • Supports up to 8.8 lb (4kg)
  • Offers an optimum solution for small and high performance MiniHD camcorders
  • Includes a single stage, lightweight (9.1 lb / 4.12kg) aluminum tripod that can be adjusted to a height ranging from 34.2" to 59" (86.8 - 149.8 cm)
  • Includes a ground spreader that offers 45° and 90° positions and holds the tripod legs in position providing augmented stability and rigidity
  • Provides fixed counter balance and drag via the 805 head
  • 805 standard head integrates a convenient standard leveling base with 75mm ball diameter
  • Allows tilt angles of +90° / -60°
  • Provides camera mounting via quick release slide plate
  • Includes the s-30 carry case for storing the tripod system
• Zoom Controller for Panasonic Mini DV or HDV Cameras The Zoom Controller for Panasonic Mini DV or HDV Cameras from Acebil is a multi-speed zoom rocker and camera start/stop unit. It allows you to bypass your camera's built-in zoom control and REC start/stop switch so you can operate the camera remotely. This enables you to opearate your camera on a tripod and control your start/stop and zoom without removing your hand from the panhandle.

  The controller connects to your camera via the stereo mini jack and features a push button for starting and stopping video recording. The zoom lever can be used to control the wide angle and telephoto functions, as well as the zoom speed.
  • Operating the zoom lever on your camera when it is mounted on a tripod can lead to unsatisfactory results, especially when trying to zoom, pan, and tilt at the same time. With this hardwired controller, you don't have to take your hand from the panhandle to start/stop your camera or to zoom.
  • The controller features a 2.5mm connector and includes cable with a 2.5mm connector on both ends.
  • Clamps to items 0.39 - 1.18" in width

• Tripod

• 805 Fluid Head

• Ground Spreader

• S-30 Case for J-805Mx or J-80GX Tripod

• Limited 1-Year Warranty

• Control Cable

• Limited 3-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• J-805GX Prosumer Tripod System

  Payload	Approx. 8.8 lb (4kg)
  Tilt Angle	+90° / -60°
  Counterbalance	Fix
  Drag Control	Fix
  Plate	Camera plate: Quick release slide plate Plate attachment: 1/4 screw with video pin
  Weight	9.1 lb (4.1kg)
  Height	34.2-59" (82-158cm)
  Ball Diameter	75mm
  Sections	1 stage

  Box Dimensions (LxWxH)	39.3 x 7.8 x 7.8"

• Zoom Controller for Panasonic Mini DV or HDV Cameras

  Clamp Range	0.39 - 1.18" (10 - 30 mm)
  Cable Length	20.1" (510 mm)
  Connector	2.5mm stereo mini jack
  Ports and Connectors	Number 1 Type Panasonic

  Box Dimensions (LxWxH)	5.15 x 3.8 x 2.9"
