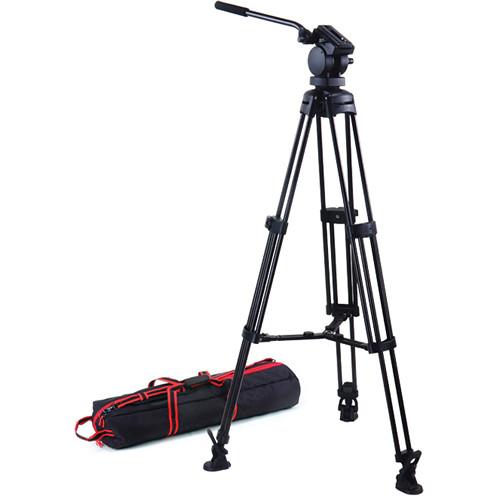

User Manual for Acebil P-30MX Professional Tripod System Click to enlarge the picture
Contents of the user manual for the Acebil P-30MX Professional Tripod System
- Product category: Tripod Systems Acebil
- Brand: Acebil
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acebil Tripod Systems
|
User manual for the Acebil P-30MX Professional Tripod System contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acebil product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acebil user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acebil product will considerably shorten its lifespan!
|
Product description The Acebil P-30MX Professional Tripod System includes the T750 Aluminum Tripod, H30 Fluid Head, MS-3 Middle Spreader, and the S-50 Carry Case. Capable of supporting up to 17.6 lb (8kg), the P-30MX provides a professional tripod system solution. The T750 can be adjusted to provide a height ranging from 39 to 63" (99 to 160cm). A 15 sec auto-LED level illumination feature is also offered by the P-30MX system. The MS-3 Middle Spreader provides rigidity and support to the tripod by holding the legs in position. You can achieve fixed counter balance, pan, and tilt drag by means of the included H30 fluid head. A convenient 75mm standard leveling base is also provided allowing tilt angles of +90° / -80°. Camera mounting is provided via a slide plate via 1/4" screw with video pin. A slide range of +/- 35mm is offered via the slide plate. The single stage P-30MX tripod system weighs 11.7 lb (5.3kg). You can use the S-50 soft carry case for storing the P-30MX tripod system. - Supports up to 17.6 lb (8kg)
- Includes T750 Aluminum Tripod that can be adjusted to provide a height ranging from 39 to 63" (99 to 160cm))
- Offers a 15 sec auto-LED level illumination feature
- Includes H30 Fluid Head that allows you to achieve fixed counter balance, pan, and tilt drag
- H30 Fluid Head integrates a convenient 75mm standard leveling base
- Allows tilt angles of +90° / -80°
- Includes MS-3 Middle Spreader that holds the tripod legs in position to provide stability and rigidity to the tripod
- Provides camera mounting via a slide plate via 1/4" screw with video pin
- Provides a slide range of +/- 35mm via slide plate
- Includes S-50 Carry Case for storing the tripod system
In the Box Acebil P-30MX Professional Tripod System H30 Head T750M Tripod System MS3 Middle Spreader Rubber Foot for T750/T752 Tripod (Set of 3) S-50 Case for P-20, P-30, P-40 or P-50 Tripod Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil P-30MX Professional Tripod System in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebil P-30MX Specs | Payload | 17.6 lb (8kg) | | Counterbalance | Fix | | Drag Control | Fix (pan/tilt) | | Tilt Angle | +90° / -80° | | Leveling Indicators | LED Level Illumination: 15 sec. auto | | Plate | Camera plate: slide plate
Plate attachment: 1/4 screw with video pin
Spare Screw: 3/8" screw - 2 pcs | | Slide Range | +35 / -35mm | | Weight | 11.7 lb (5.3kg) | | Height | 39-63" (99-160cm) | | Ball Diameter | 75mm | | Sections | 1 stage | | | | Package Weight | 18.0 lb | | Box Dimensions (LxWxH) | 46.0 x 9.0 x 9.0" |
