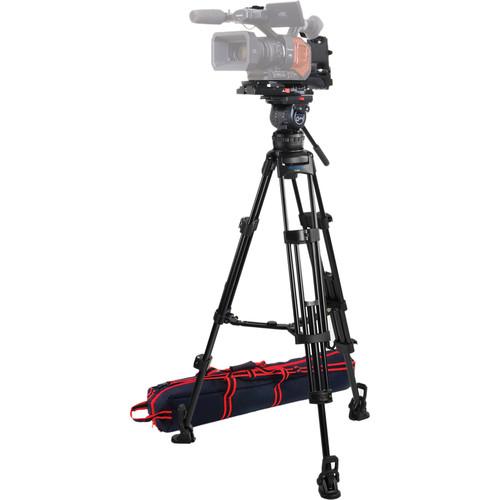

Product description The Acebil ST-7R KIT2M Kit comprises the ST-7R Mountable Shoulder Adapter, CS-482M Professional Tripod System, VST-14 Quick-Release Tripod Base Plate, and DC cable for ST-7R. The ST-7R Mountable Shoulder Adapter allows you to use the Panasonic AG-DVX200 Camcorder in a shoulder-mount configuration with direct viewing through the camcorder's view finder. The adapter's strong die-cast aluminum frame makes it very easy to move around the camera. It is equipped with two built-in CamTap outputs, a V-mount battery holder, two sets of DC outputs, and BNC junction terminals. The CS-482M Professional Tripod System features a 100mm CH4 Fluid Head, T1002 Aluminum Tripod, MS-3 Mid-Level Spreader, and an S-52 Carry Case. The 482M tripod features a 2-stage design and aluminum construction. It has a height range of 31.9 to 65" and comes with the MS-3 Mid-Level Spreader for enhanced stability. The 100mm CH4 Fluid Head supports loads up to 26.4 lb and has a 6-step counterbalance and independent 4-step pan and tilt drag. It comes equipped with a sliding quick-release plate and pan handle. A carrying case is included for easy storage and transport of the tripod system. - Shoulder Adapter for Panasonic AG-DVX200 Camcorder The Acebil ST-7R Shoulder Rig is designed to enhance your use of the Panasonic AG-DVX200 4K Camcorder in both shoulder- and tripod-mounted modes. In either mode, access to the camera's viewfinder, controls, and connectors remain unimpeded. Using a V-mount battery on the ST-7R Shoulder Rig's rear plate counterbalances the weight of the camera, and the padded shoulder mount provides a comfortable fit. Constructed of lightweight aluminum, the rig provides four DC outputs and three built-in CamTap BNC outputs. The ST-7R Shoulder Rig is compatible with the Acebil CS-382 or CS-482 tripod systems.
Compatibility - Acebil CS-382 and CS-482 tripod systems
Features - Lightweight aluminum construction
- Standard V-mount battery plate at rear
- Three CamTap connectors provide accessible BNC output on the operator's right side
- Two 4-pin XLR, and two 4-pin mini DC outputs
- Shoulder pad and carrying-strap studs for comfortable use
- Quick Release Tripod Base Plate
- Key Features
-
- Quick-release tripod base plate
- Allows for easy docking
- CS-482M Professional Tripod System The Acebil CS-482M Professional Tripod System features a 100mm ball CH4 Fluid Head, T1002 Aluminum Tripod, MS-3 Mid-Level Spreader, RF-3 Rubber Feet, and a S-52 Carry Case. The head supports loads up to 26.4 pounds and has a 6-step counterbalance and independent 4-step pan and tilt drag. It comes equipped with a sliding quick-release plate and pan handle.
The 100mm bowl T1002 tripod features a 2-stage design and aluminum construction. It has a height from of 17.7 to 60.2" and comes with a MS-3 Mid-Level Spreader for enhanced stability. The RF-3 Rubber Feet help protect indoor surfaces from tripod feet abrasions. A carrying case is included for easy storage and transport of the tripod system. - Key Features
-
- Supports up to 26.4 lb
- CH4 Fluid Head (100mm ball)
- 6-Step counterbalance
- 4-Step pan/tilt drag
- 2-Stage T1002 aluminum tripod with 100mm bowl
- Tripod height range: 17.7 to 60.2"
- MS-3 Mid-Level Spreader enhances tripod stability and holds the tripod legs in position
- RF-3 Rubber Feet
- S-52 Carry Case included for storing and transporting the tripod system
In the Box Bundle Items Shoulder Adapter for Panasonic AG-DVX200 Camcorder wvdbbtxraxsffyszxbduvsxqzxddsaavcyru Quick Release Tripod Base Plate CS-482M Professional Tripod System wvdbbtxraxsffyszxbduvsxqzxddsaavcyru - CH4 Fluid Head (100mm Ball)
- T1002M Tripod Legs (100mm Bowl)
- S-52 Case for P-22, P-20, P-42 or P-52 Tripod
Also Includes - DC-DVX200 DC Cable for ST-7R
User Manual PDF 1.8mbwvdbbtxraxsffyszxbduvsxqzxddsaavcyru Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil ST-7R KIT2M ST-7R Mountable Shoulder Adapter and CS-482M Professional Tripod System Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Shoulder Adapter for Panasonic AG-DVX200 Camcorder
| DC In and Out Connectors | DC In:
1 x 4-pin XLR (12 VDC)
DC Out:
1 x 4-pin XLR (12 VDC)
1 x 4-pin mini (12/8.4 VDC) | | Video Output Ports | 3 x BNC | | Material of Construction | Aluminum | | Temperature Ranges | Operating: 32 to 104°F (0 to 40°C)
Storage: -4 to 140°F (-20 to 60°C) | | Weight | 3.3 lb (1.5 kg) | | | | Box Dimensions (LxWxH) | 21.6 x 9.1 x 8.5" | - Quick Release Tripod Base Plate
| | | Accessory Type | Mounting plate | | | | Designed for | Sony DVW-970P, HDW-650P, HDW-730S, HDW-750P, HDW-790P, HDW-F900R, HVR-S270E, HVR-S270U, MSW-970P, PDW-510P, PDW-530P, PDW-700, PDW-F335L, PDW-F355L, PDW-F800, PMW-350K
Sony CineAlta HDW-F900R
Sony XDCAM PXW-X400KC
Sony XDCAM EX PMW-320K, PMW-350K, PMW-350L | | | | Box Dimensions (LxWxH) | 12.0 x 3.0 x 3.0" | - CS-482M Professional Tripod System
| | | Payload | Approx. 26.4 lb (12 kg) | | Ball Diameter | 100 mm | | Counterbalance | 6 steps plus zero | | Pan Drag | 4 steps plus zero | | Tilt Drag | 4 steps plus zero | | Pan Lock | Yes | | Tilt Lock | Yes | | Tilt Range | +85° / -75° | | Panning Range | 360° | | Quick Release Plate | Yes | | Weight | Not specified by manufacturer | | | | Load Capacity | 88 lb (40 kg) | | Pipe Material | Aluminum | | Height | 17.7 to 60.2" (45 to 153 cm) | | Bowl Diameter | 100 mm | | Sections | 2 stage | | Spreader | Mid-level | | Weight | 9.3 lb (4.2 kg) |
