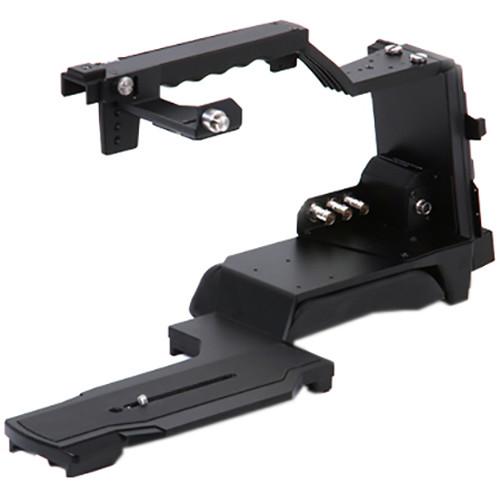

This Acebil ST-7R Shoulder Adapter Bundle includes the DC-XH1 DC cable that allows you to use the ST-7R with the Canon XF305 camera. The ST-7R is a self-contained shoulder support with a V-Mount battery plate on the rear and four DC outputs throughout.

Attach an optional V-Mount battery and plug the camera and various other accessories into the DC outputs for power. The ST-7R also provides three BNC outputs and features a shoulder pad, top handle, and tripod mounts.
  • Shoulder Adapter for Panasonic AG-DVX200 Camcorder The Acebil ST-7R Shoulder Rig is designed to enhance your use of the Panasonic AG-DVX200 4K Camcorder in both shoulder- and tripod-mounted modes. In either mode, access to the camera's viewfinder, controls, and connectors remain unimpeded. Using a V-mount battery on the ST-7R Shoulder Rig's rear plate counterbalances the weight of the camera, and the padded shoulder mount provides a comfortable fit. Constructed of lightweight aluminum, the rig provides four DC outputs and three built-in CamTap BNC outputs. The ST-7R Shoulder Rig is compatible with the Acebil CS-382 or CS-482 tripod systems.

    Compatibility

    • Acebil CS-382 and CS-482 tripod systems

    Features

    • Lightweight aluminum construction
    • Standard V-mount battery plate at rear
    • Three CamTap connectors provide accessible BNC output on the operator's right side
    • Two 4-pin XLR, and two 4-pin mini DC outputs
    • Shoulder pad and carrying-strap studs for comfortable use

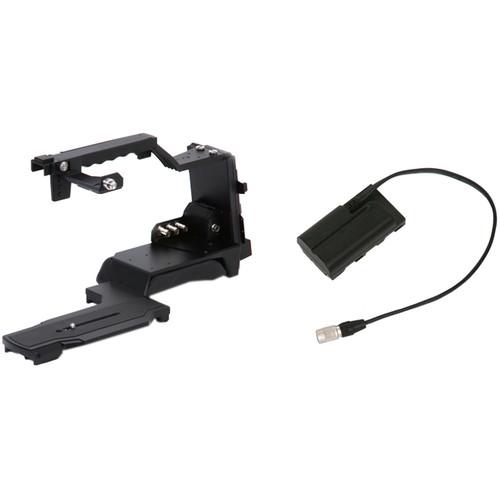

In the Box Bundle Items Shoulder Adapter for Panasonic AG-DVX200 Camcorder uxrsuazbtzcxczsrsbvuyauydfzusqbzvfwau
  • Limited 1-Year Warranty
DC Cable for Canon XF305/205 Camcorder Table of Contents




Upload User Manual

Have you got an user manual for the Acebil ST-7R Shoulder Adapter with DC-XH1 Cable for Canon XF305 in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

  • Shoulder Adapter for Panasonic AG-DVX200 Camcorder
    DC In and Out Connectors DC In:
    1 x 4-pin XLR (12 VDC)

    DC Out:
    1 x 4-pin XLR (12 VDC)
    1 x 4-pin mini (12/8.4 VDC)
    Video Output Ports 3 x BNC
    Material of Construction Aluminum
    Temperature Ranges Operating: 32 to 104°F (0 to 40°C)
    Storage: -4 to 140°F (-20 to 60°C)
    Weight 3.3 lb (1.5 kg)
    Box Dimensions (LxWxH) 21.6 x 9.1 x 8.5"

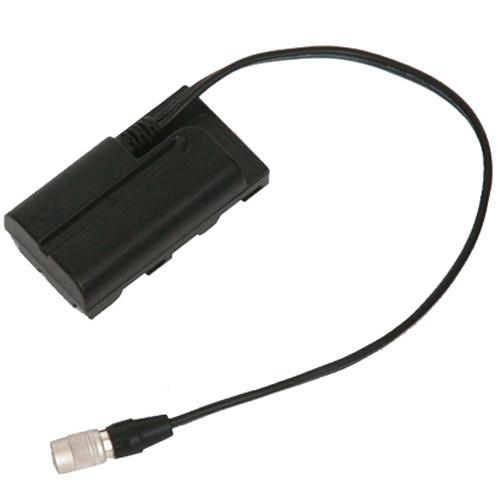

  • DC Cable for Canon XF305/205 Camcorder
