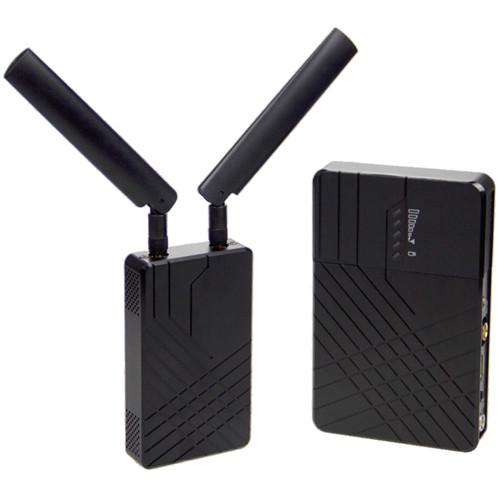

Product description The Acebil WT-120 Wireless Video Transmitter/Receiver Set provides HDMI/SDI audio/video transmission up to 394' away. It supports signals up to uncompressed 1080p. The WT-120's <1 ms latency provides real-time viewing, crucial for accurate focus pulling by your camera assistant. Up to four systems can be used together without interruption, each paired to one of 10 channels (at 5 GHz frequency). Each transmitter and receiver set is factory pre-paired, reducing on-set startup time. Multiple audio formats are supported, including Dolby True HD, and DTS-HD master audio. An optional Sony NP-F970 battery adapter (available separately) can be used for powering the units. - Up to 1080p uncompressed wireless video and audio transmission
- Transmits up to a distance of 394' with under one millisecond latency
- HDMI and 3G-SDI input and output
- Select from ten 5 GHz channels
- Employ up to four sets simultaneously
- Factory-paired transmitter and receiver sets
- LED indicators for receiver signal strength, network status, and video status
- Multiple audio formats are supported
- Works with optional Sony NP-F970 battery adapter plate
In the Box Acebil WT-120 Wireless Video Transmitter/Receiver Set Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acebil WT-120 Wireless Video Transmitter Receiver Set in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcebil WT-120 Specs Interface - Connectors | Transmitter: 1 x SDI input (BNC female) 1 x HDMI input (Type A female) 2 x Antenna ports (RF-2 SMA male) 1 x DC input (4-pin LEMO female) Receiver: 1 x SDI input (BNC female) 1 x HDMI input (Type A female) 1 x DC input (4-pin LEMO female) | Video Input/Output | HDMI: 1080p 23.98/24/25/29.9/30/50/59.94/60 1080i 50/59.94/60 720p 50/59.94/60 625i 50/59.94/60 525i 50/59.94/60 3G/HD/SD-SDI (Auto-Selected): SMPTE-259/274/292/296/372/424/425 | Audio Input / Output | SDI 4-channel / embedded / 24-bit / 48 kHz | ESD Protection | All Ports: +/- 8 kV | Frequency | 5.1 to 5.9 GHz | Modulation Mode | OFDM 16-QAM | Transmission Distance | 131' (120 m) | Maximum Transmit Power | 21 dBm | Receiver Sensitivity | -75 dBm | Occupied Bandwidth | 40 MHz | Encryption | AES-128 | Material of Construction | Anodized aluminum | Power Supply Voltage | Transmitter/Receiver: 7 to 36 VDC | Power Consumption | Transmitter: <6.5 W Receiver: <7.5 W | Operating Temperature | 32 to 104°F (0 to 40°C) | Storage Temperature | -4 to 140°F (-20 to 60°C) | Dimensions (LxWxH) | Transmitter: 4.5 x 2.6 x 0.9" (11.5 x 6.7 x 2.3 cm) Receiver: 6.0 x 3.7 x 0.9" (15.2 x 9.5 x 2.3 cm) | Weight | Transmitter: 9.5 oz (270 g) Receiver: 12.5 oz (355 g) | | Package Weight | 4.8 lb | Box Dimensions (LxWxH) | 12.2 x 7.6 x 3.7" |
