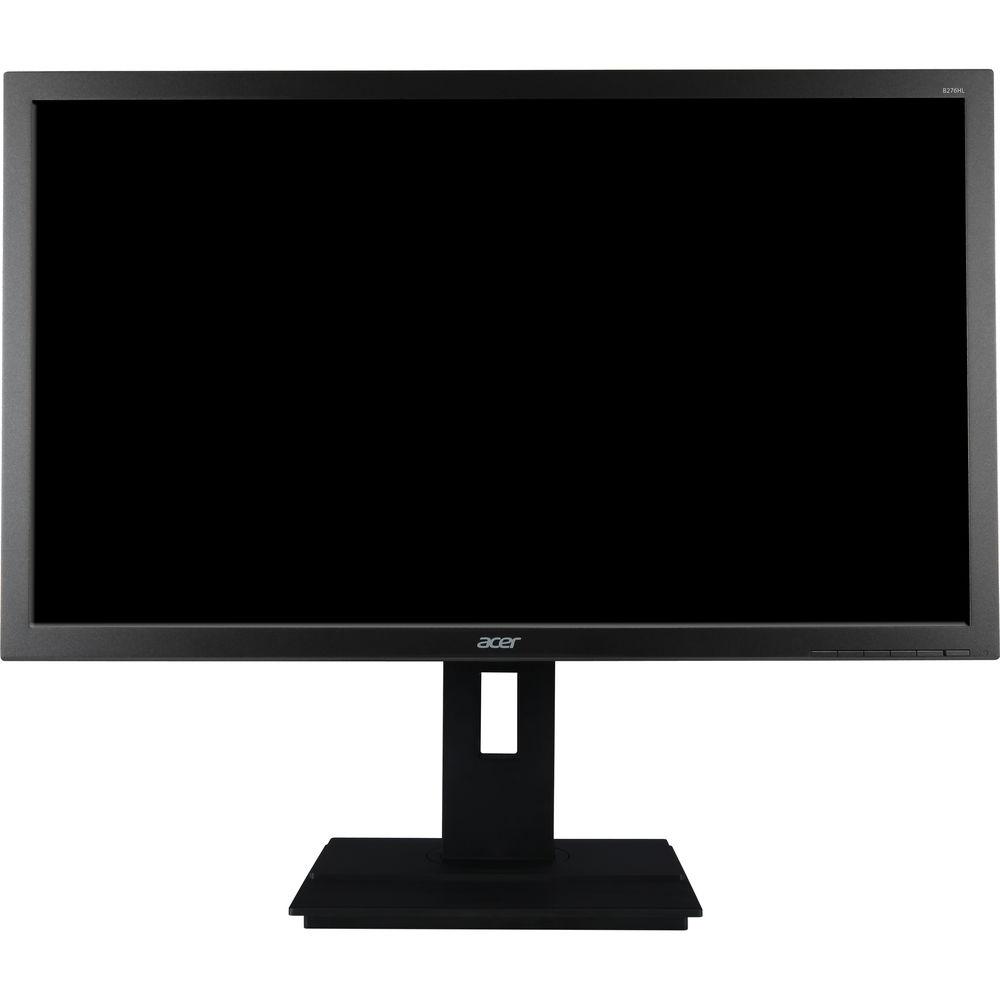

User Manual for Acer B276HL Cymiprx 27" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Acer B276HL Cymiprx 27" 16:9 LCD
- Product category: Computer Monitors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Computer Monitors
 |
User manual for the Acer B276HL Cymiprx 27" 16:9 LCD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|

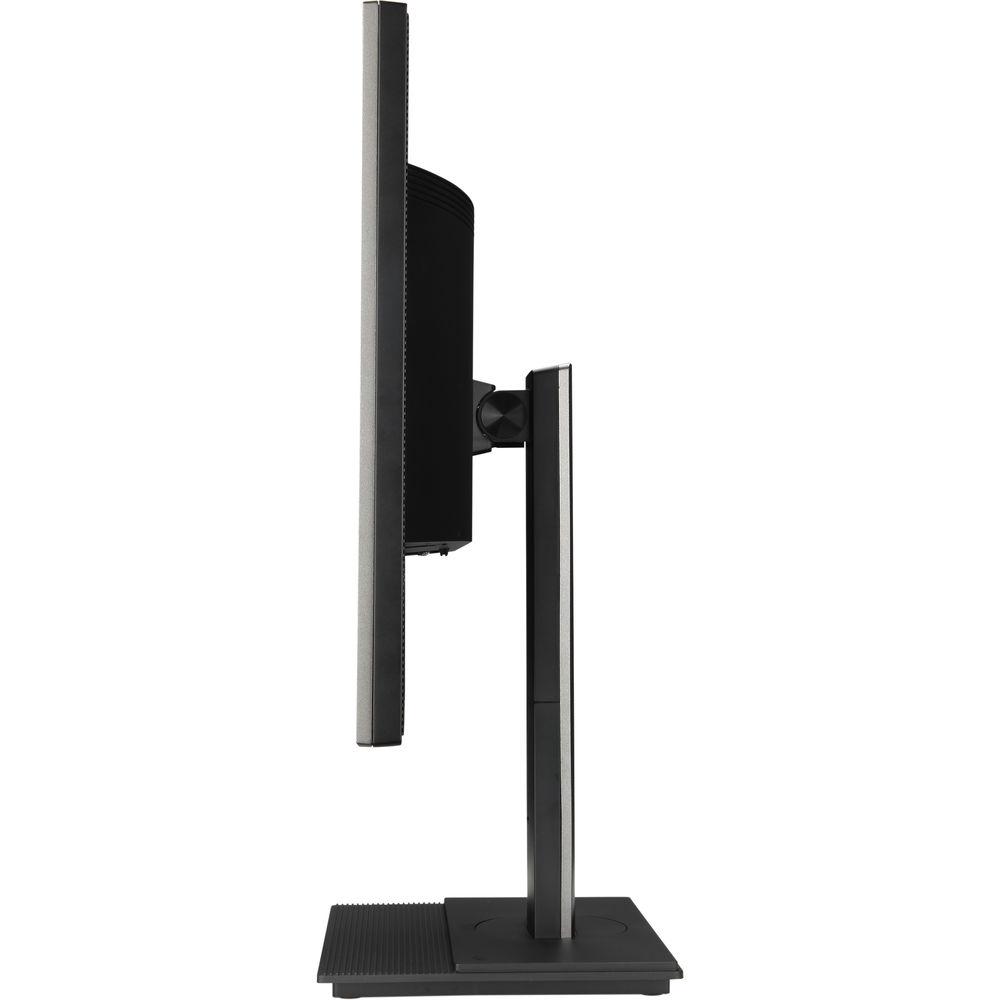

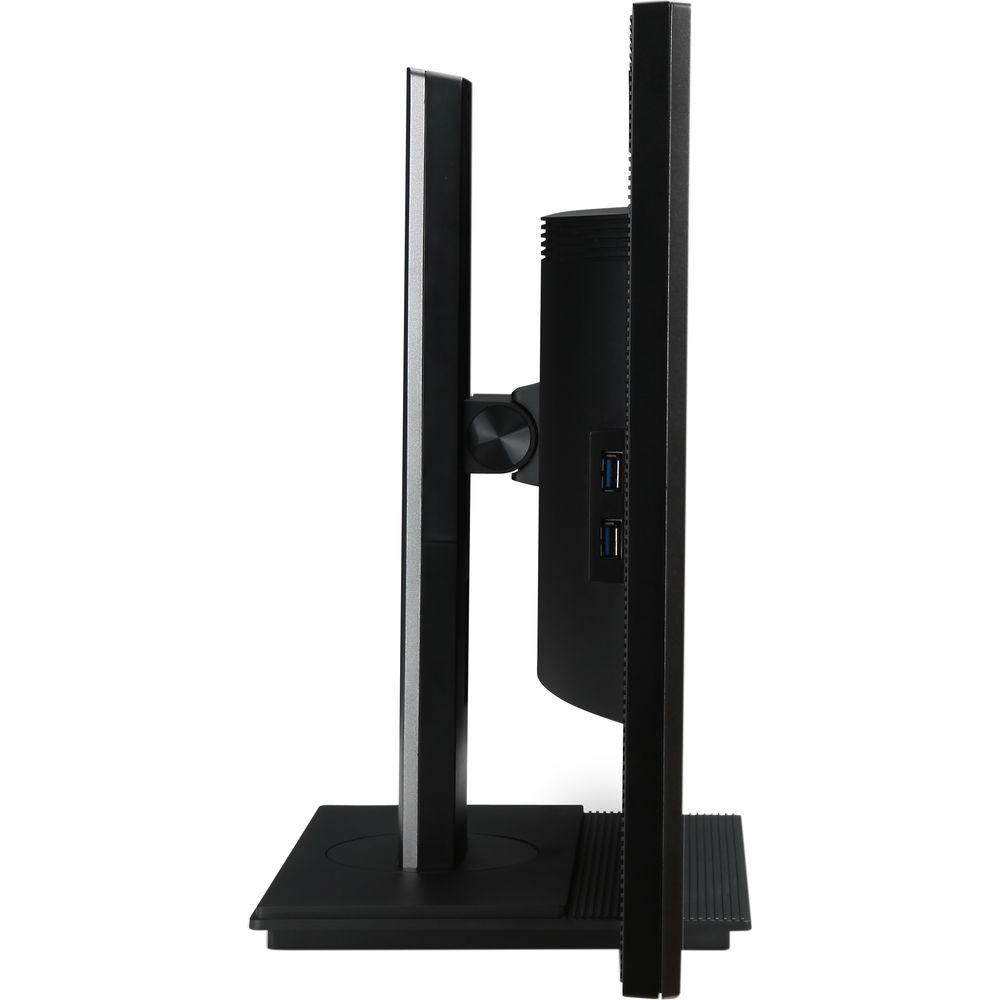

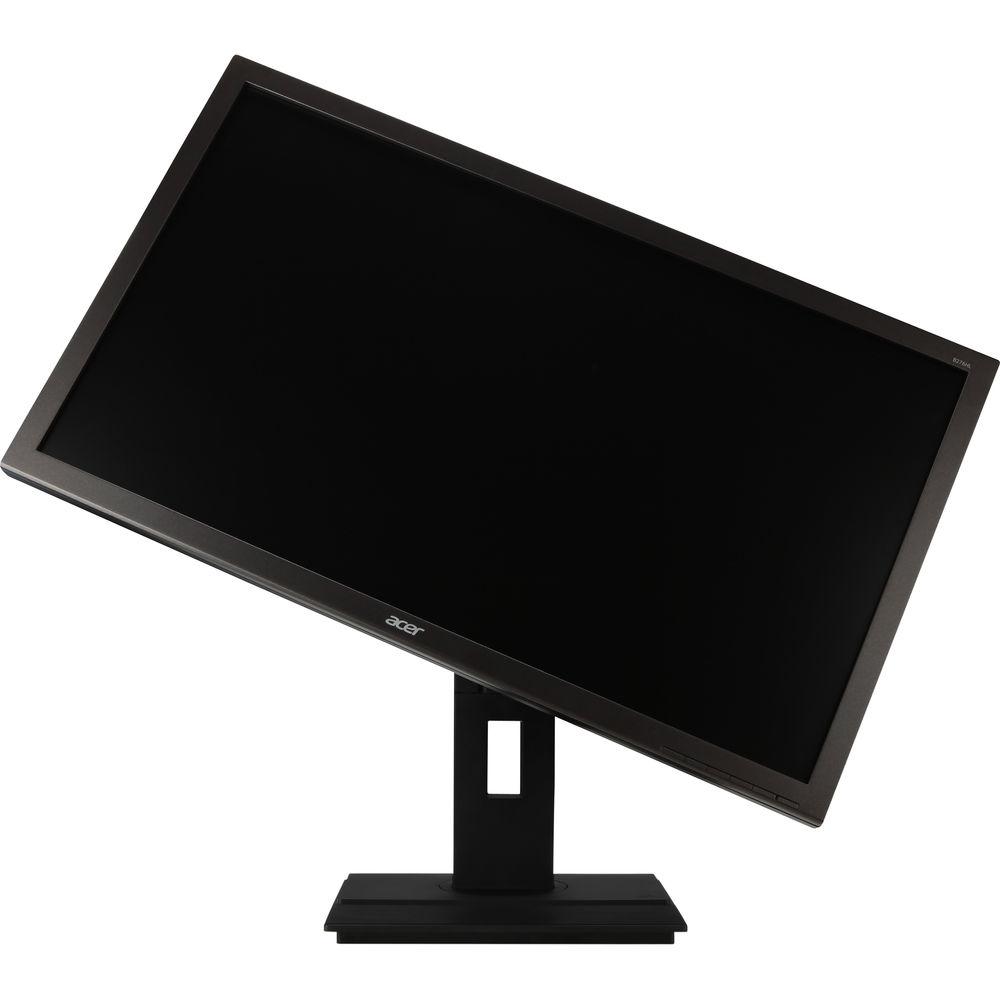

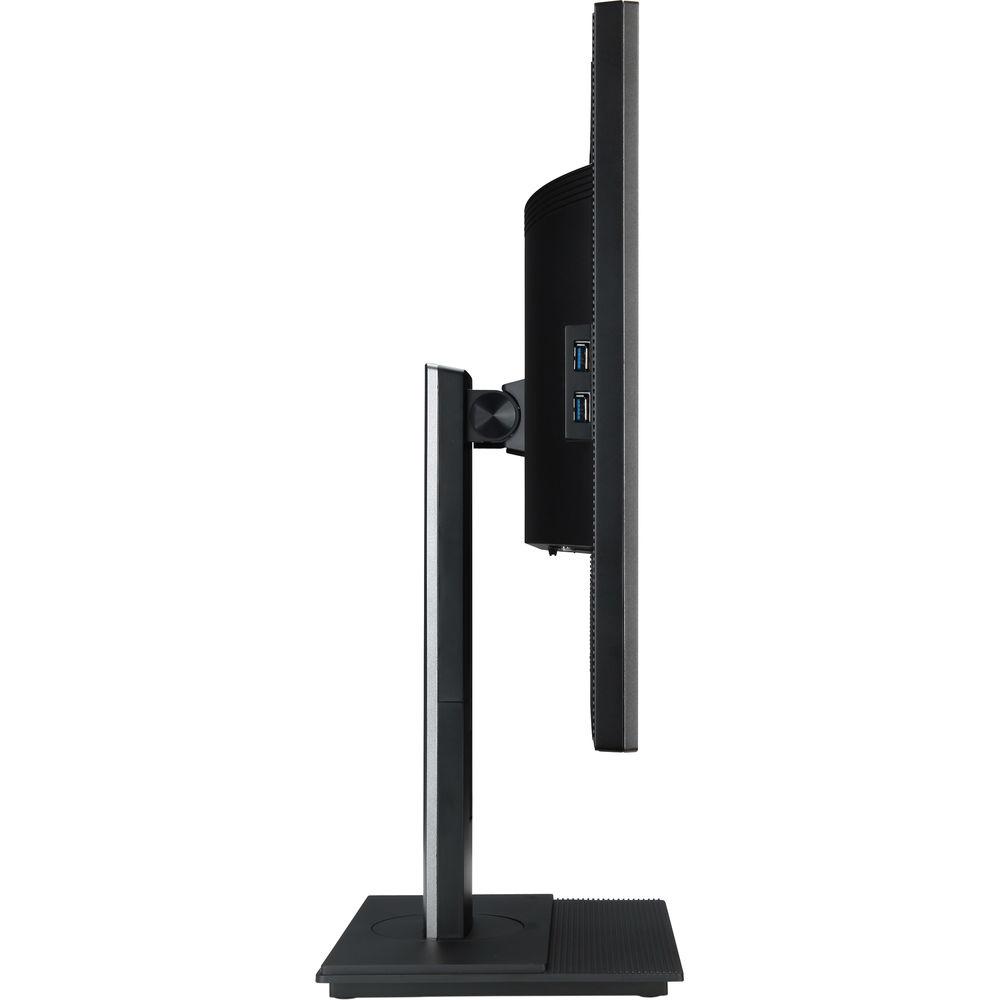

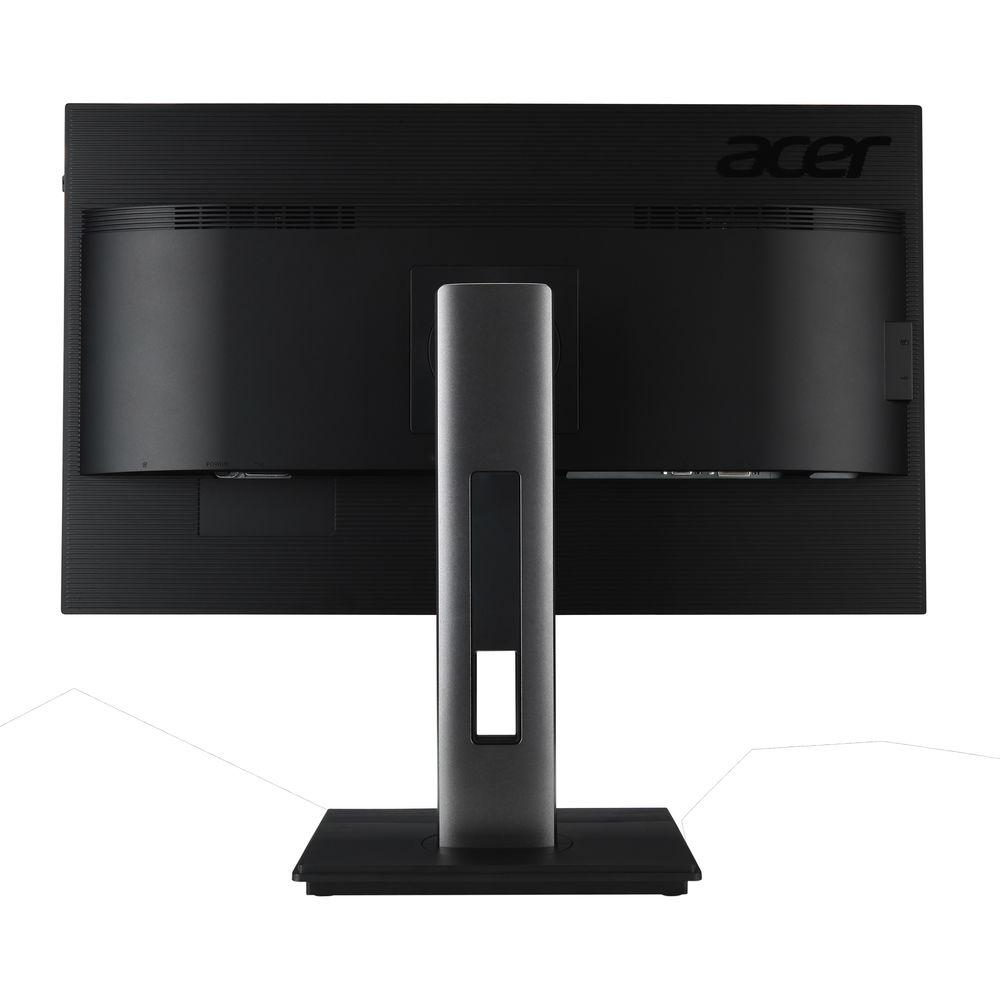

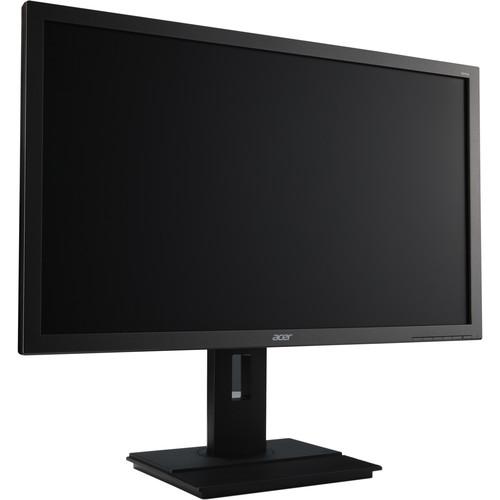

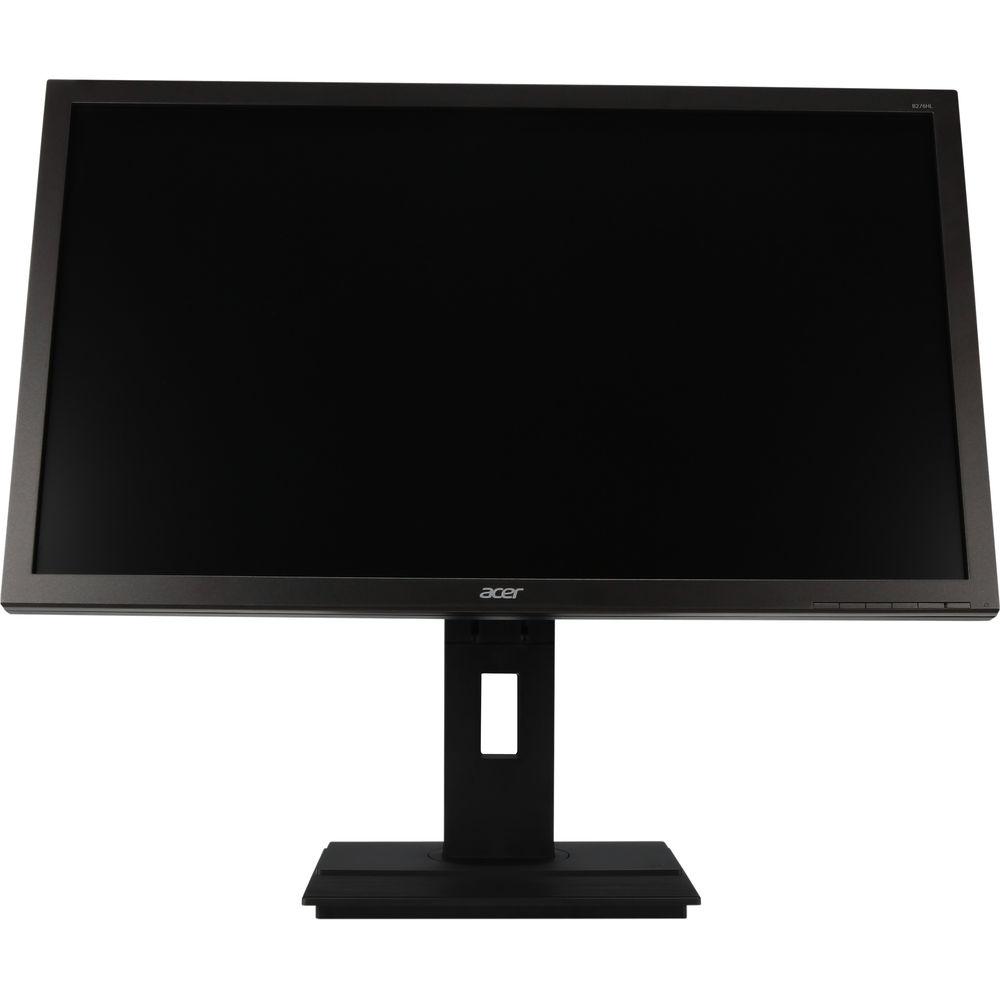

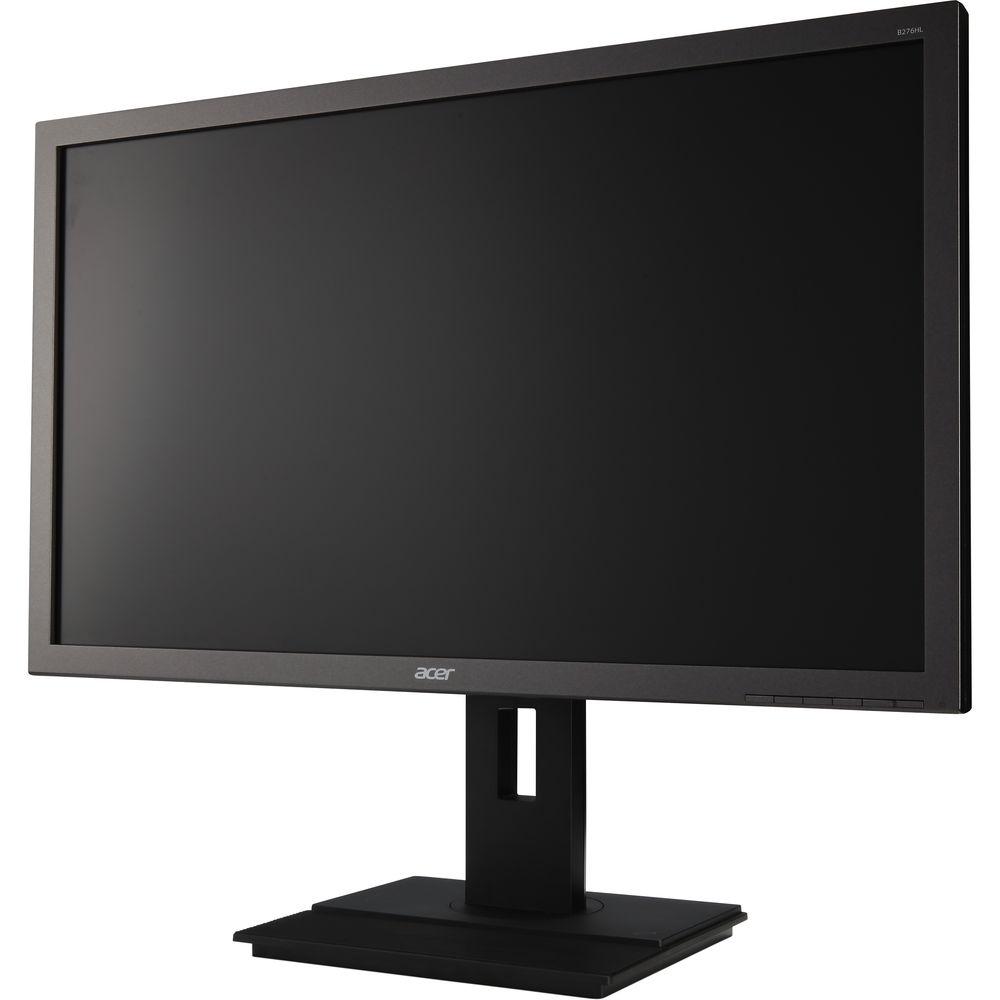

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD 1920 x 1080 resolution and a Zero Frame Design, the B276HL Cymiprx 27" 16:9 LCD Monitor from Acer offers an enhanced viewing experience. This monitor features a 5 ms response time, a 100,000,000:1 dynamic contrast ratio, a 300 cd/m² brightness rating, and support for up to 16.7 million colors. Setup and configuration of this Acer monitor has been simplified thanks to the HDMI, VGA, and DisplayPort inputs. Once configured, the display can be viewed from the included ErgoStand, which allows you to adjust the height as well as tilt, pivot, and swivel the monitor into place. Ditch the stand and mount the B276HL to the wall using a VESA compatible wall mount and take full advantage of the 178° horizontal and vertical viewing angles along with the ability to adjust color hue and saturation using Acers 6-Axis Color Tuning feature. - ErgoStand

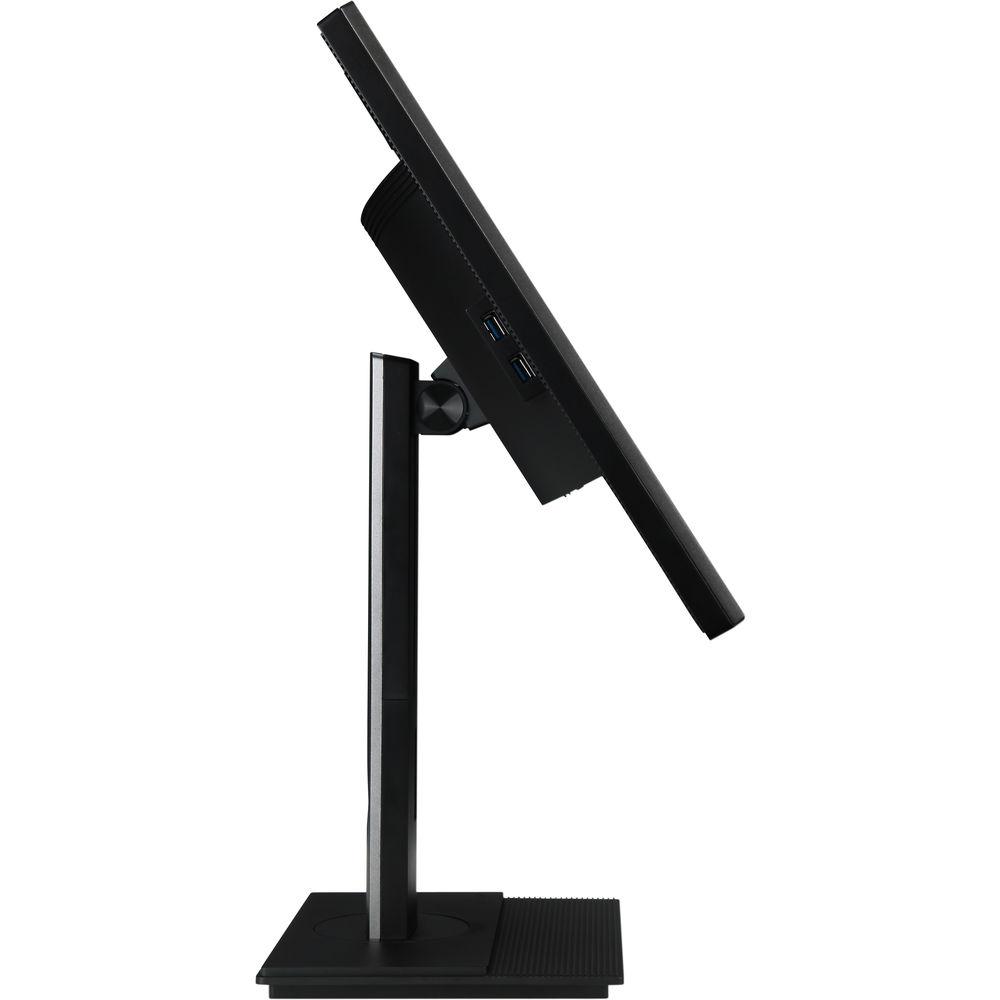

- Tilt, swivel, pivot, and adjust the height of this display to get the perfect angle and enjoy the ultimate in comfort.
- Acer EcoDisplay
- This display has an environmentally friendly design that focuses on recyclability and low power consumption.
- Full HD
- 1920 x 1080 resolution in a 16:9 aspect ratio makes movies seem more real and dramatic. Small details and text are rendered with enhanced clarity.
- Zero Frame Design
- Enjoy more screen and less distraction with this frameless design.
- VESA Mount
- Save space within any room by mounting this VESA compliant monitor to the wall.
- 6-Axis Color Tuning
- Set the hue and saturation of red, green, blue, magenta, yellow, or cyan independently - for improved calibration.
UPC: 191114585917 In the Box Acer B276HL Cymiprx 27" 16:9 LCD Monitor DisplayPort Cable VGA Cable Power Cable Limited 3-Year Warranty User Manual PDF 2mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer B276HL Cymiprx 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer B6 Specs | | | Size | 27" | | Panel Type | VA LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 82 ppi | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | HDR Compatibility | None | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI Input
1 x VGA Input
1 x DisplayPort Input | | Built-In Speakers | Yes, 2 x 4 W | | | | Power Consumption | 26.6 W (Typical)
0.4 W (Standby) | | | | Height Adjustment | 5.91" / 150.11 mm | | Tilt Adjustment | -5 to 35° | | Dimensions (W x H x D) | 24.2 x 21.5 x 9.7" / 61.5 x 54.6 x 24.6 cm (With Stand)
24.2 x 14.5 x 9.7" / 61.5 x 36.8 x 24.6 cm (Without Stand) | | Weight | 15.4 lb / 6.99 kg (With Stand)
8.8 lb / 3.99 kg (Without Stand) | | | | Package Weight | 19.15 lb | | Box Dimensions (LxWxH) | 27.3 x 20.0 x 8.3" |
Rating50% users recommend this product to others. And what about you?
This product has already been rated by 10 owners. Add your rating and experience with the product.
