User Manual for Acer EI491CR Pbmiiipx 49" 32:9 Curved 120 Hz FreeSync LCD Gaming Monitor Click to enlarge the picture
Contents of the user manual for the Acer EI491CR Pbmiiipx 49" 32:9 Curved
- Product category: Computer Monitors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Computer Monitors
 |
User manual for the Acer EI491CR Pbmiiipx 49" 32:9 Curved contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|

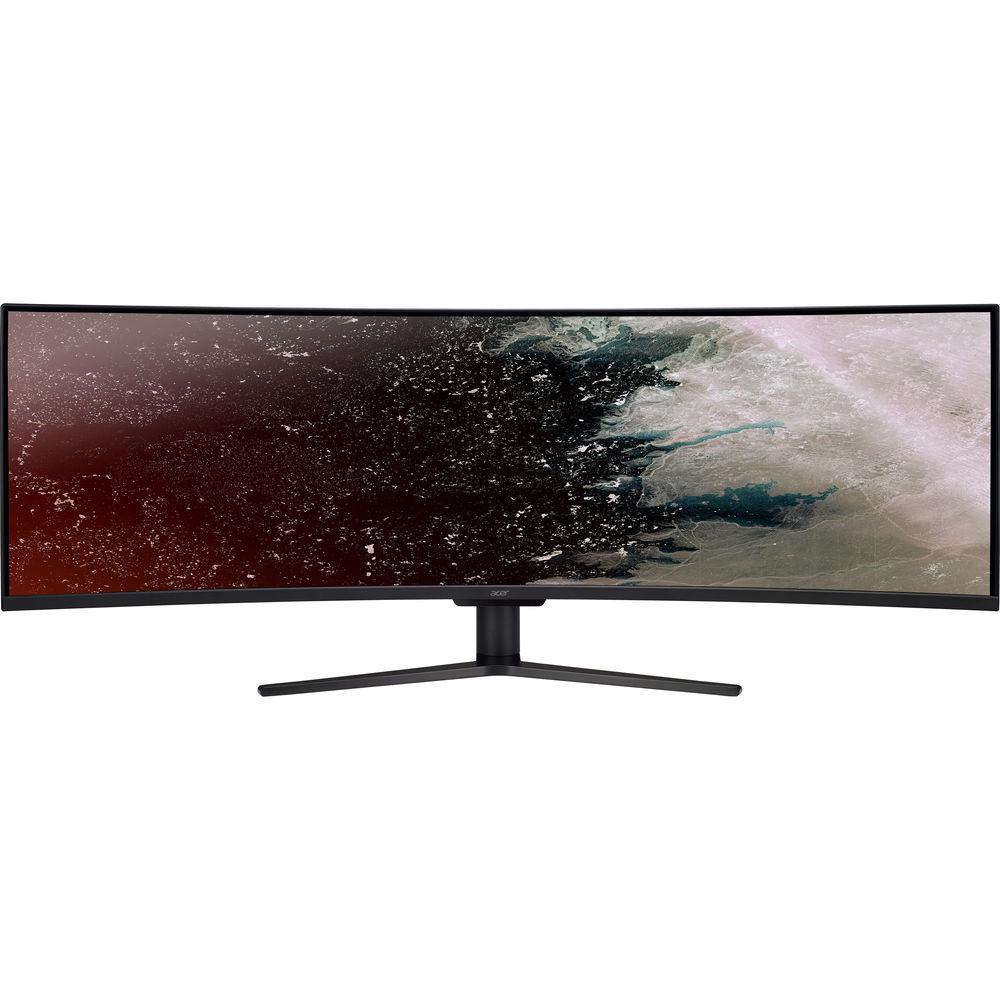

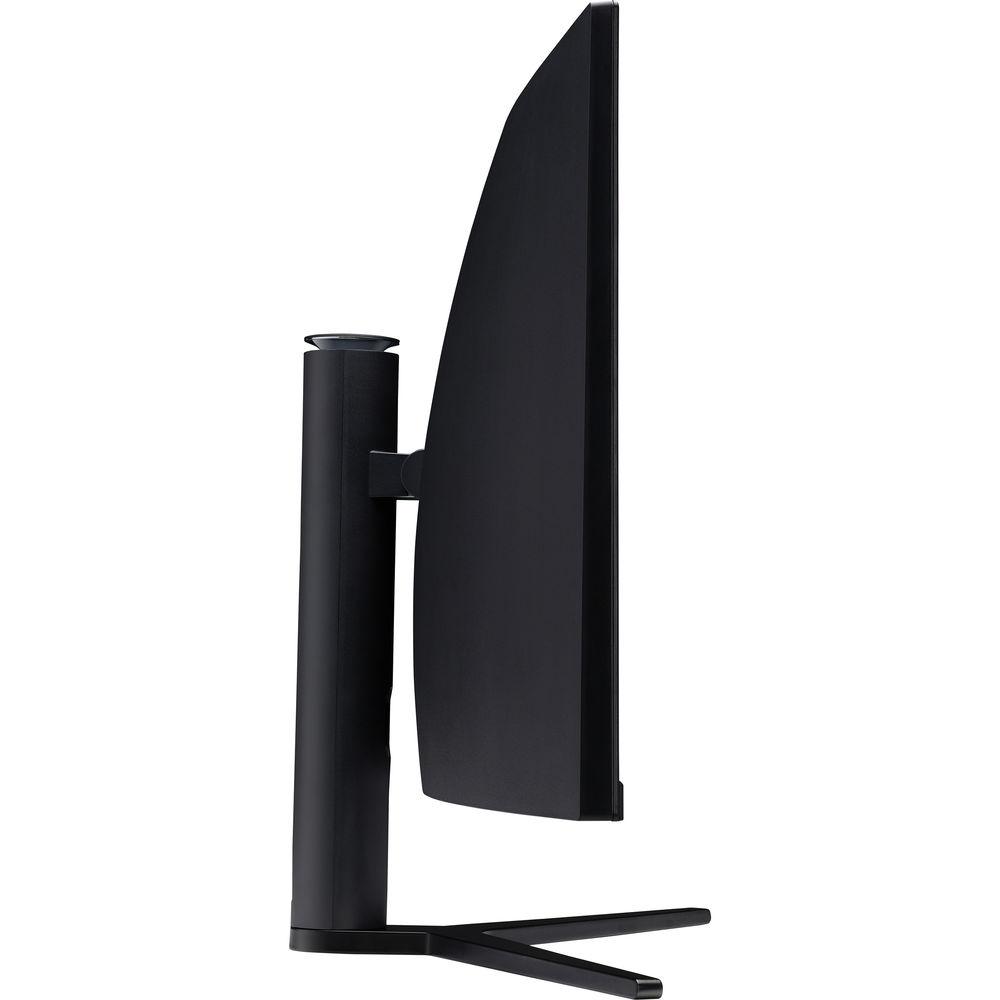

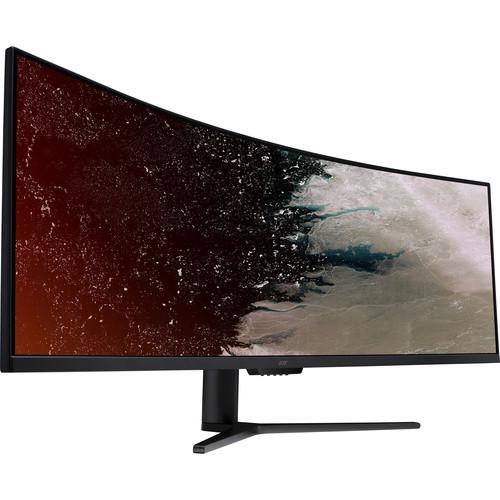

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More azbsqecuwsrfyryc Part of the EI1-series, the EI491CR Pbmiiipx 49" 32:9 Curved 120 Hz FreeSync LCD Gaming Monitor from Acer features an expansive 49" curved Vertical Alignment (VA) panel that wraps around your field-of-view for an immersive viewing experience. Specs-wise, it has a 3840 x 1080 resolution a 400 cd/m² brightness rating, a 3000:1 static contrast ratio, and support for up to 16.7 million colors. With these combined, it can deliver crisp, clear details as well as vivid and accurate colors. Connect it to your system via HDMI or DisplayPort and adjust its versatile stand to best fit your viewing preference. Otherwise, you can install an optional VESA-compatible stand, mount, or arm if needed. - AMD FreeSync 2
- AMD FreeSync technology syncs the display's refresh rate with your graphics card frame rate output to reduce screen tearing, ghosting, and stuttering for a smoother gaming experience. At default, this display has a 120 Hz refresh rate, which can be overclocked to reach up to 144 Hz. AMD FreeSync 2 builds on its predecessor, offering support for HDR content and additional improvements.
- VESA DisplayHDR 400
- The VESA DisplayHDR 400 certification is an industry standard that ensures this display can reach 400 cd/m² level of brightness with specific color gamut, bit depth, and rise time values for improved color accuracy and contrast.
- Widescreen Versatility
- Reaching 49", this display has plenty of on-screen real estate for you to work with. Utilize PIP and PBP functions for easy multitasking.
- Light it Up

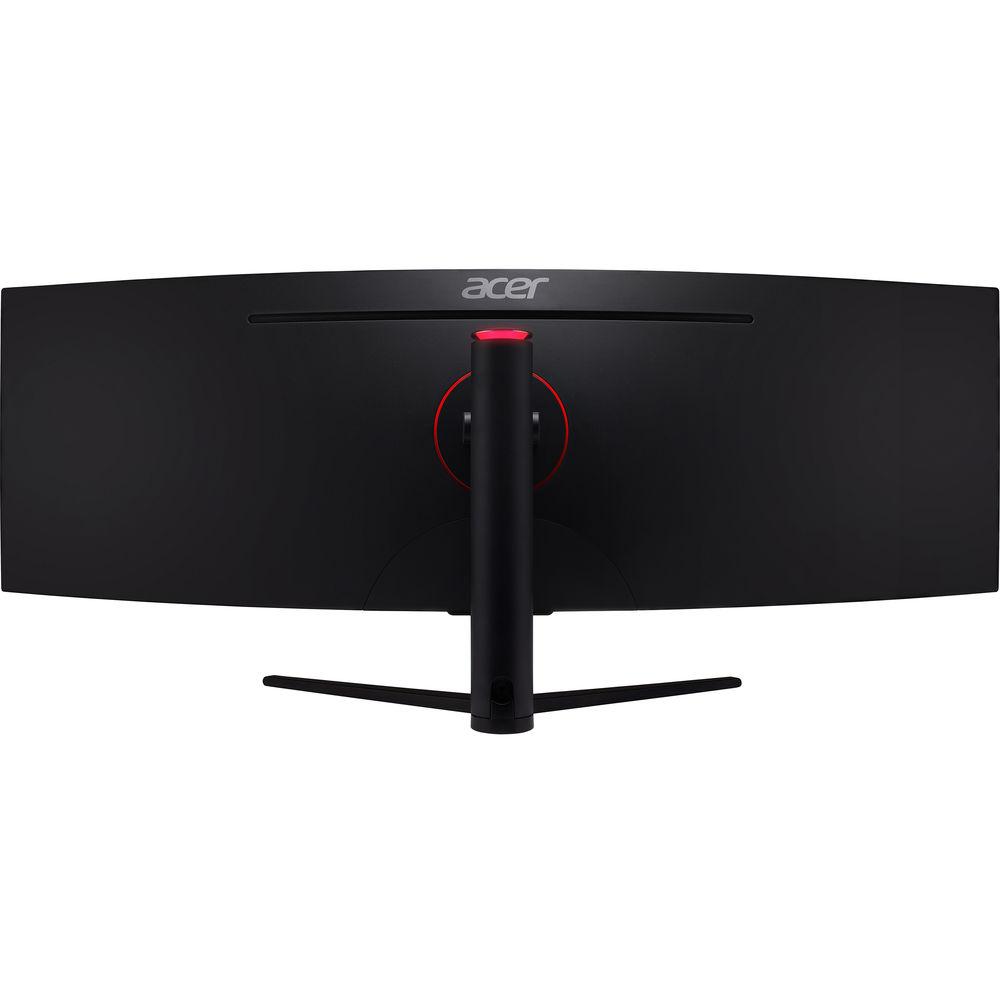

- The back of this display features built-in, customizable seven-color LED bias lighting with a variety of color and lighting effect options.
UPC: 193199056955 In the Box Acer EI491CR Pbmiiipx 49" 32:9 Curved 120 Hz FreeSync LCD Gaming Monitor DisplayPort Cable Power Cable Limited 3-Year Warranty User Manual PDF 4.3mbazbsqecuwsrfyryc More info from Acer Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer EI491CR Pbmiiipx 49" 32:9 Curved 120 Hz FreeSync LCD Gaming Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer EI491CR Pbmiiipx Specs | | | Size | 49" | | Panel Type | VA LCD | | Curvature | 1800R | | Touchscreen | No | | Resolution | 3840 x 1080 | | Aspect Ratio | 32:9 | | Pixels Per Inch (ppi) | 81 ppi | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 3000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 120 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 53.5 to 160.6 kHz | | Vertical Frequency | 48 to 120 Hz (DisplayPort, HDMI)
48 to 60 Hz (HDMI) | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | HDR Compatibility | None | | Color Gamut | 90% DCI-P3 | | Response Time | 4 ms (GtG) | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | | | Connectivity | 1 x HDMI 2.0
1 x HDMI 1.4
1 x DisplayPort 1.2 | | Built-In Speakers | Yes, 2 x 3 W | | | | Power Consumption | 90 W (Eco)
4.5 W (Standby) | | AC Input Power | 120 to 230 VAC, 50 / 60 Hz | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 75 x 75 mm | | Dimensions (W x H x D) | 47.2 x 9.4 x 18.0" / 1198.0 x 240.0 x 456.0 mm (With Stand)
47.2 x 6.8 x 14.8" / 1198.0 x 172.0 x 375.0 mm (Without Stand) | | Weight | 25.13 lb / 11.4 kg (With Stand)
20.50 lb / 9.3 kg (Without Stand) | | | | Package Weight | 33.5 lb | | Box Dimensions (LxWxH) | 52.7 x 21.5 x 8.8" |
