User Manual for Acer ET241Y Abmir 24" 16:9 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Acer ET241Y Abmir 24" 16:9 IPS
- Product category: Computer Monitors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Computer Monitors
 |
User manual for the Acer ET241Y Abmir 24" 16:9 IPS contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|

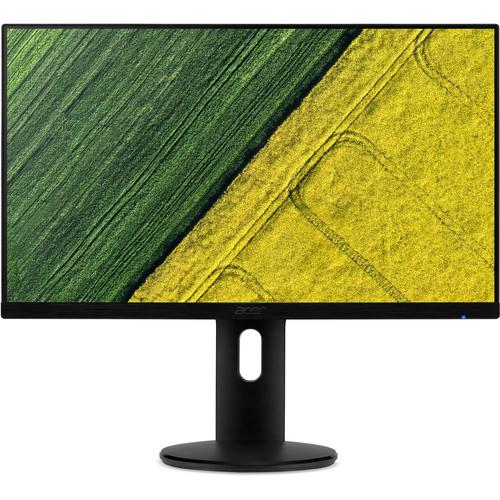

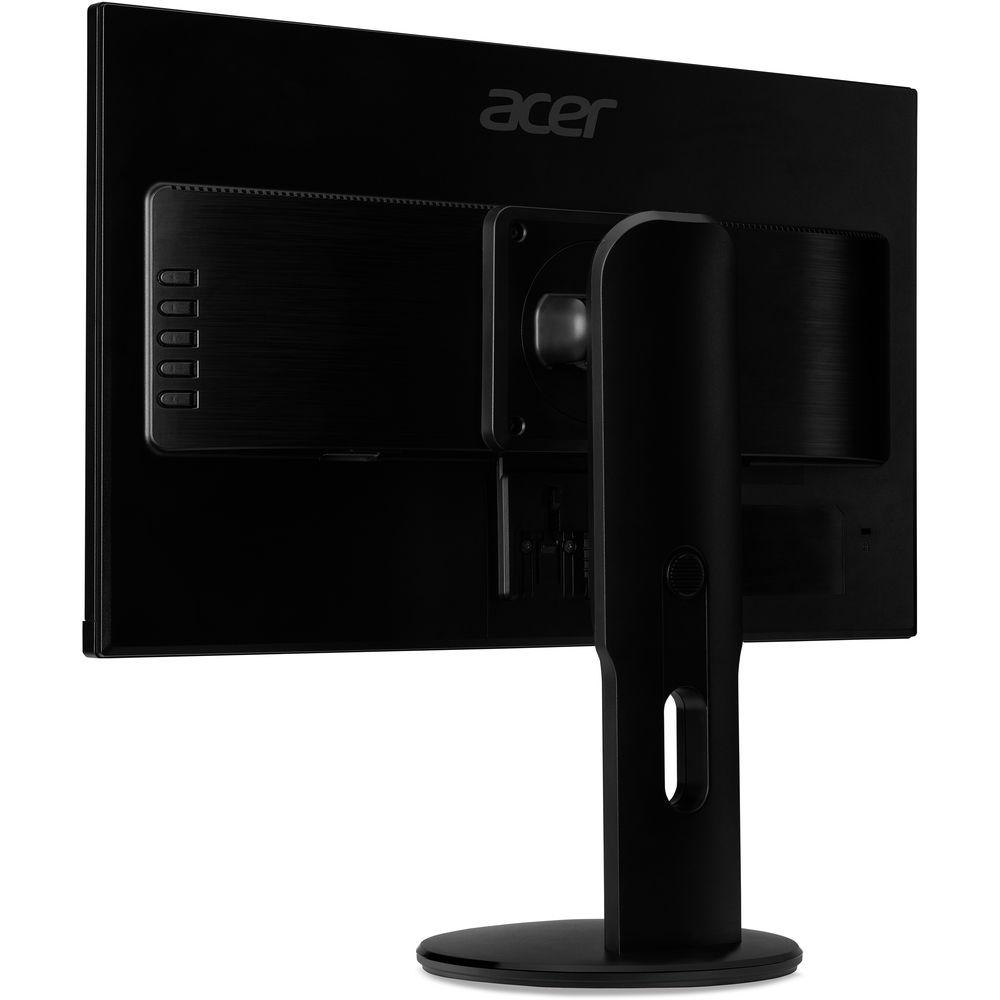

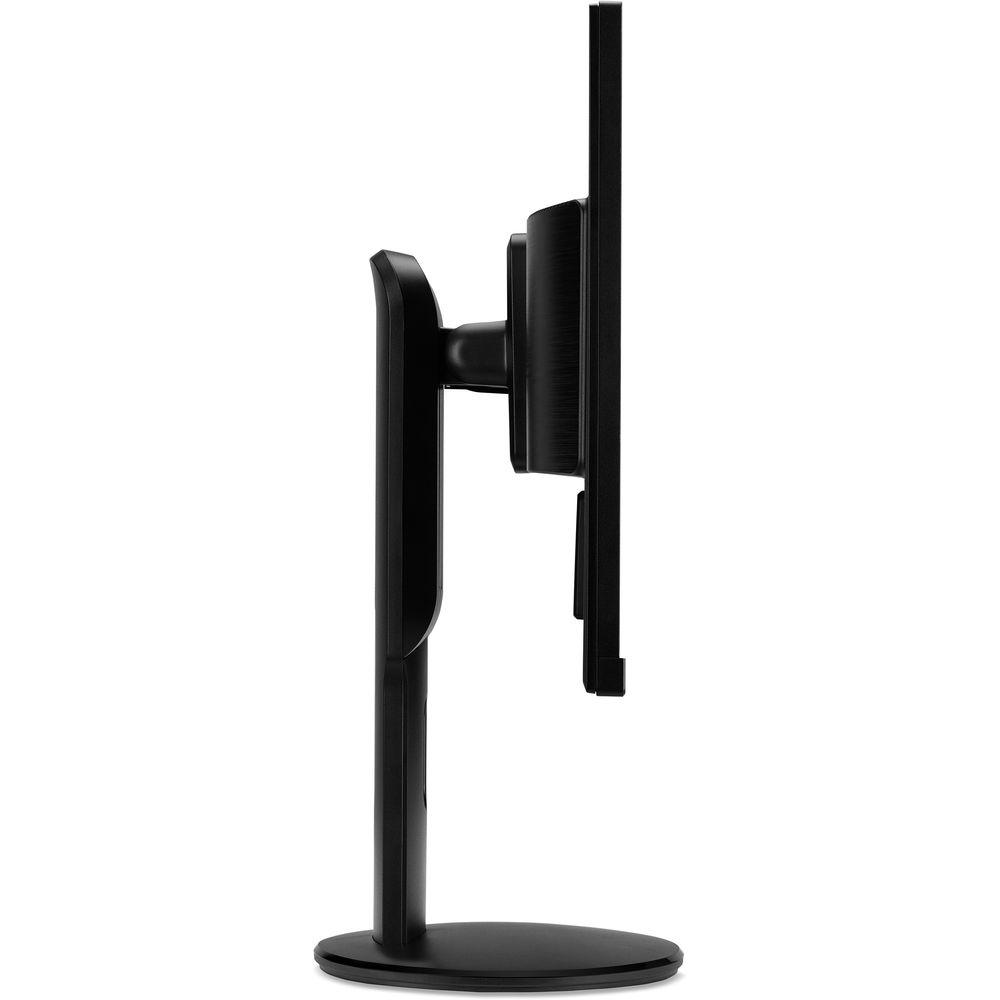

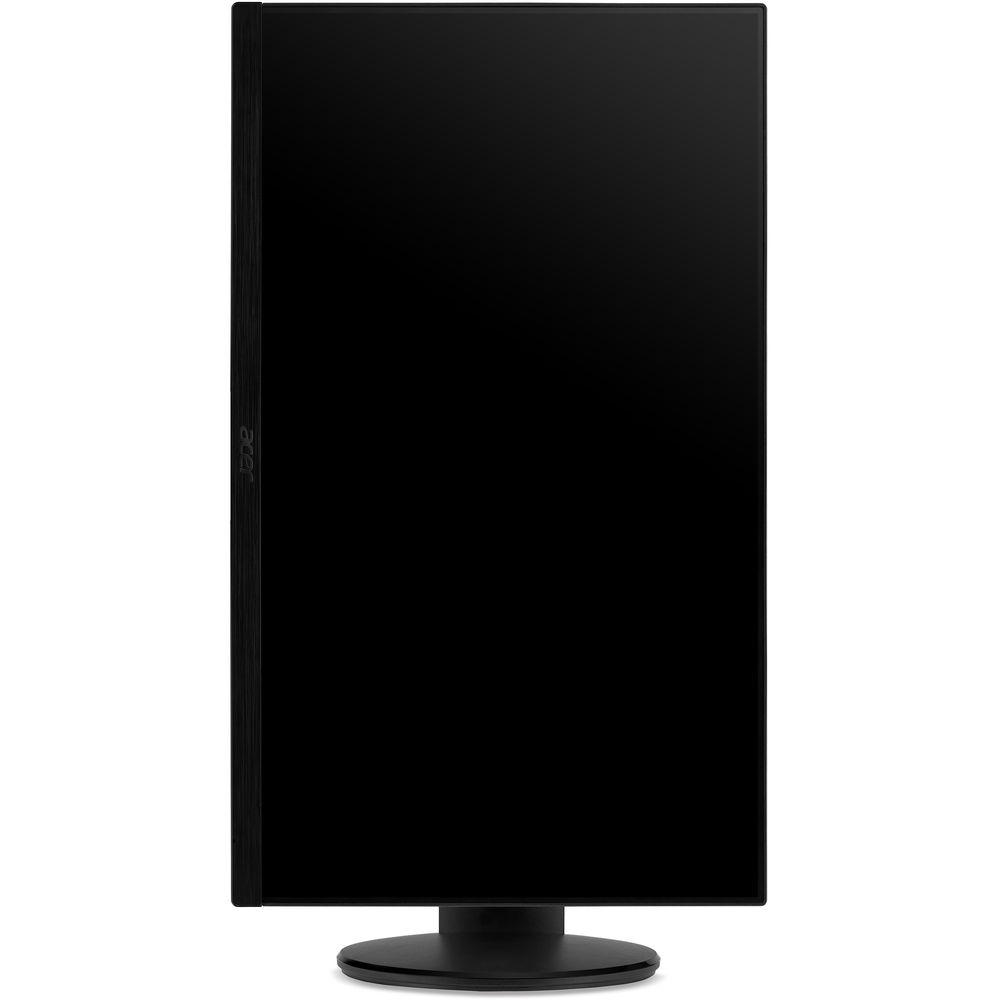

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More uqwcxvtvuqcsawrbydaeccszdwcw The ET241Y Abmir 24" 16:9 IPS Monitor from Acer features a 1920 x 1080 resolution display, a 4 ms response time, and a 250 cd/m² brightness rating to offer clear and sharp images. It also features a height adjustable and tiltable stand. This LED backlit display provides HDMI and VGA connections as well as two built-in 2W speakers. - ZeroFrame, ultrathin display for maximum visibility
- BlueLightShield technology reduces exposure to blue light
- Flickerless technology eliminates screen flicker
- ComfyView & low dimming technology reduces reflections from ambient light sources
UPC: 191114431610 In the Box Acer ET241Y Abmir 24" 16:9 IPS Monitor Power Cord VGA Cable Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer ET241Y Abmir 24" 16:9 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer ET241Y Abmir Specs | | | Size | 23.8" | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 93 ppi | | Finish | Matte | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 100,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Response Time | 4 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.275 x 0.275 mm | | | | Connectivity | 1 x HDMI Input
1 x VGA
1 x 3.5 mm Input | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 18.5 W (Eco)
0.45 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | CE, ENERGY STAR, FCC, GS, MPR II, RoHS, TCO Certified, TUV, UL, VCCI, cUL, as per Manufacturer | | | | Height Adjustment | 3.15" / 8.00 cm | | Rotation Adjustment | 90° | | Swivel Adjustment | 180° (-90 to 90°) | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 21.3 x 17.9 x 7.9" / 54.1 x 45.5 x 20.1 cm (With Stand)
21.3 x 12.7 x 1.9" / 54.1 x 32.3 x 4.8 cm (Without Stand) | | Weight | 10.6 lb / 4.81 kg (With Stand)
7.3 lb / 3.31 kg (Without Stand) | | | | Package Weight | 12.0 lb | | Box Dimensions (LxWxH) | 24.0 x 18.0 x 9.5" |
