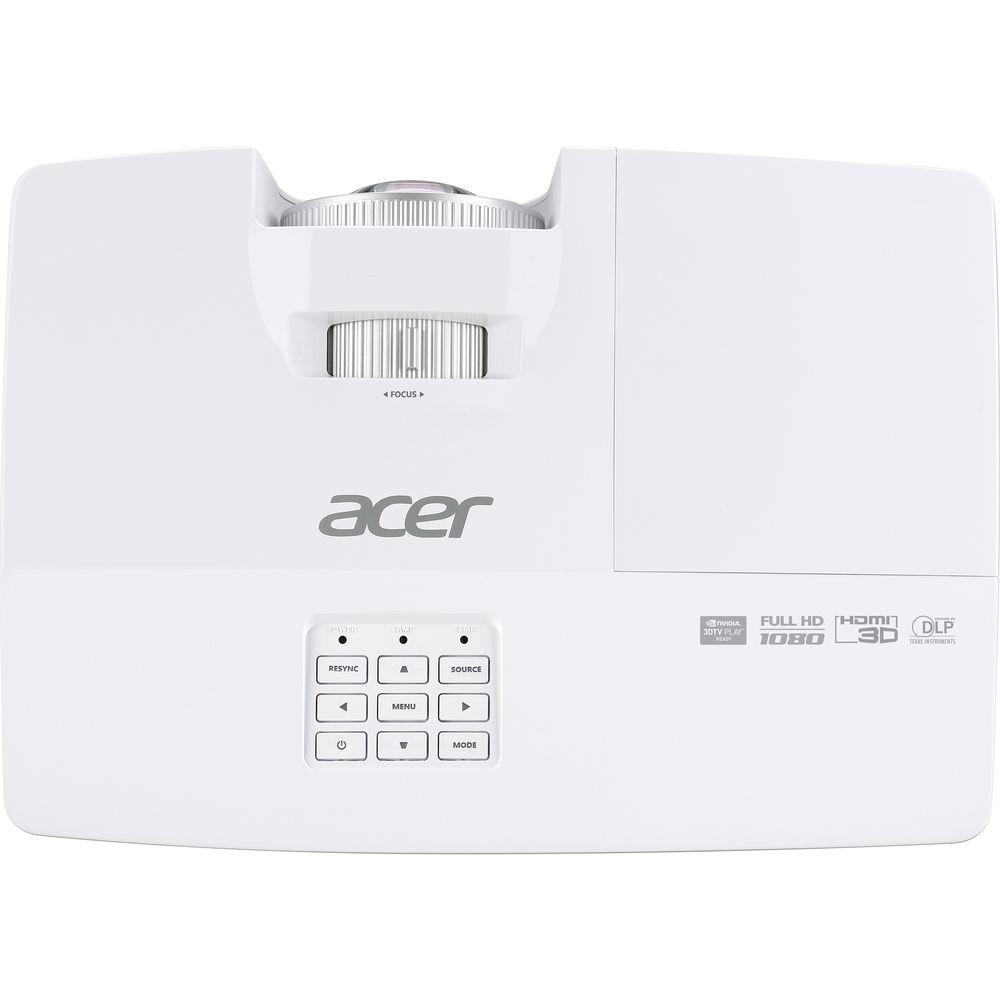

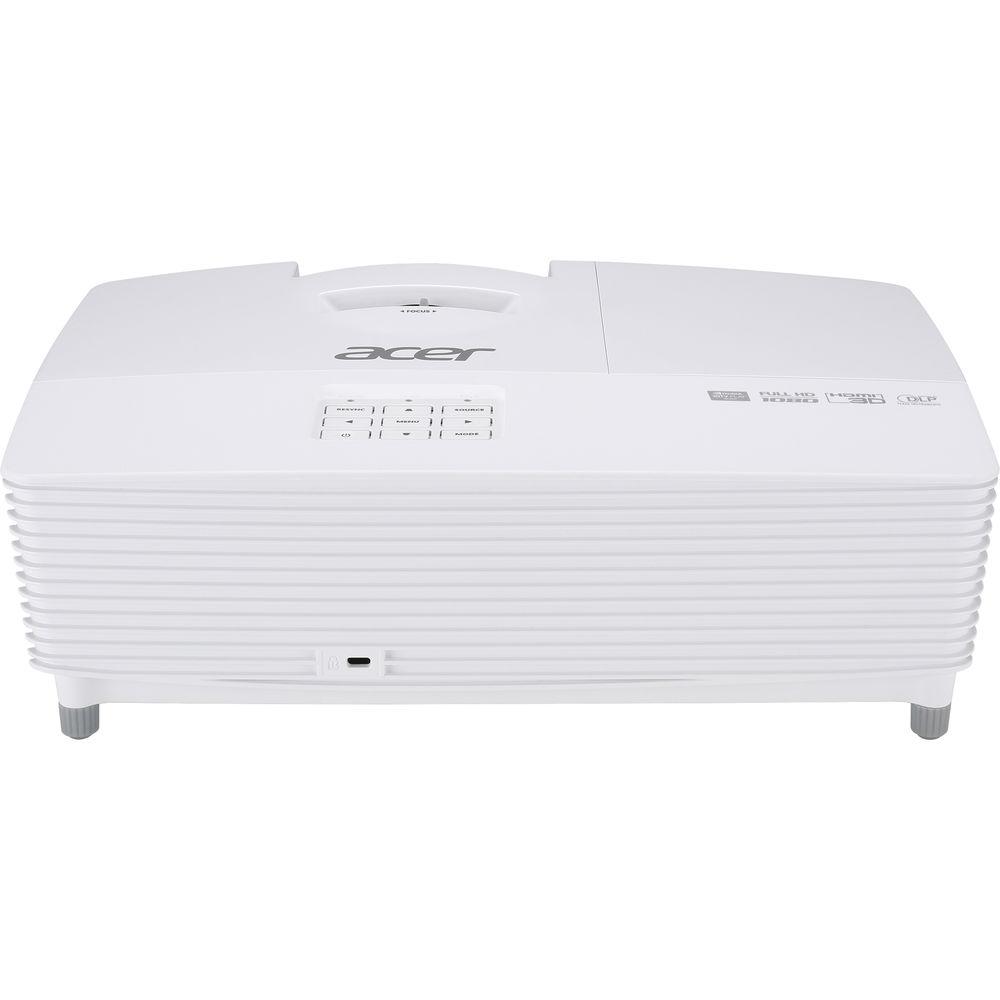

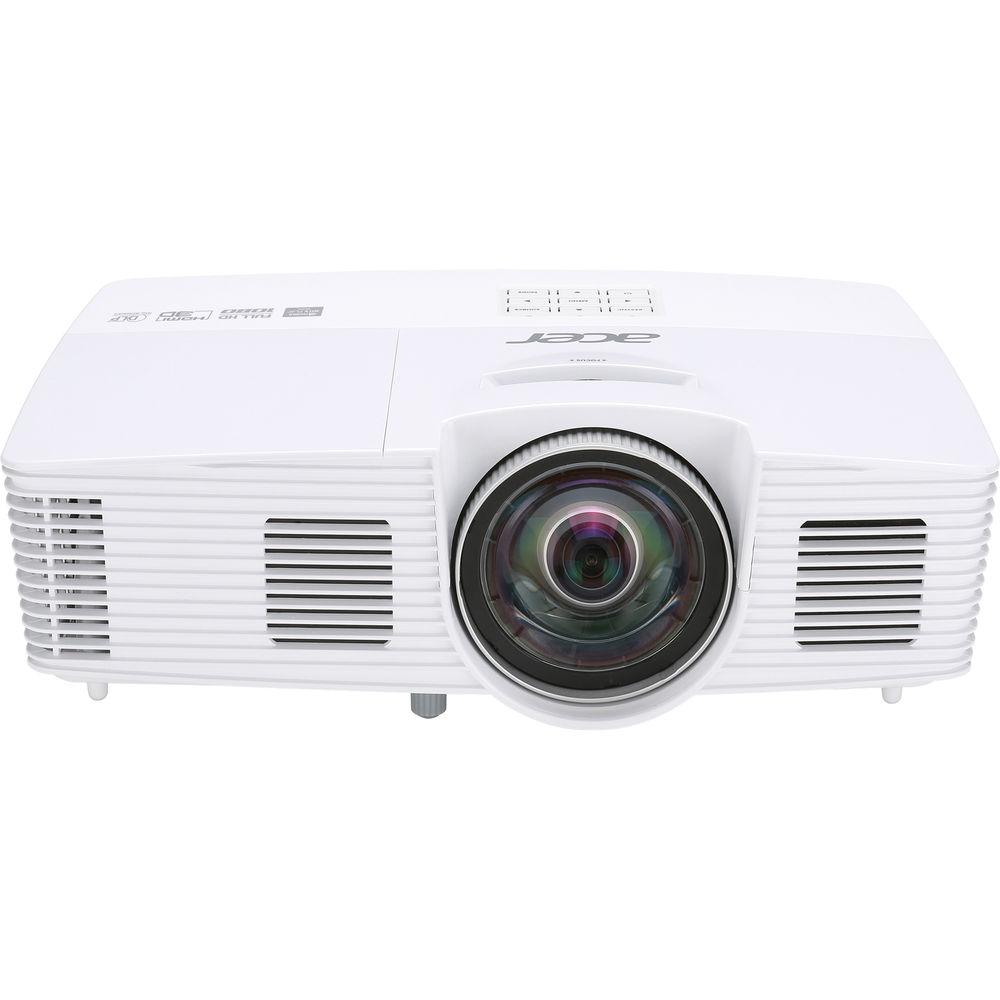

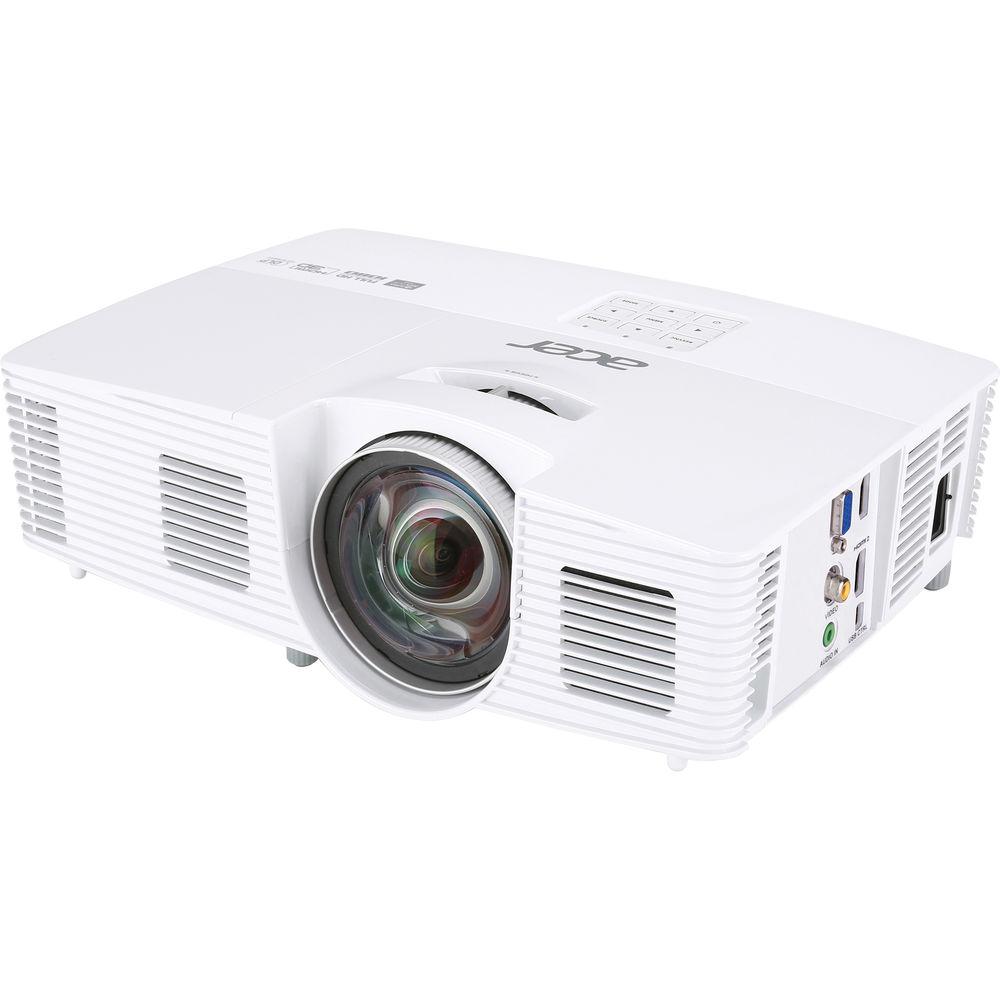

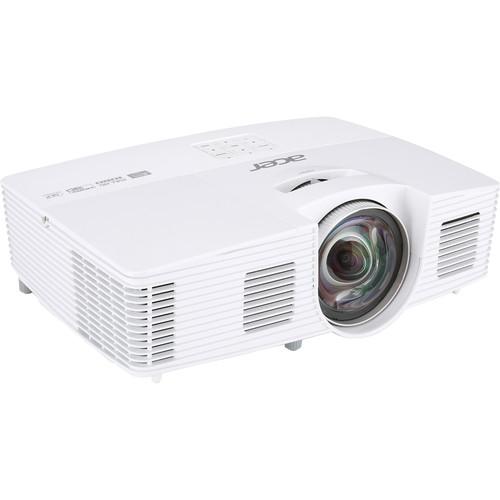

User Manual for Acer H6517ST 3000-Lumen 1080p Short Throw DLP 3D Projector Click to enlarge the picture
Contents of the user manual for the Acer H6517ST 3000-Lumen 1080p Short Throw
- Product category: Multimedia Projectors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Multimedia Projectors
 |
User manual for the Acer H6517ST 3000-Lumen 1080p Short Throw contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|
Product description The H6517ST 3000-Lumen 1080p Short Throw DLP 3D Projector has a short throw ratio of 0.5:1 at a throw distance from 19.69 to 130.00". It offers 2x digital zoom with vertical digital keystone correction of ±40°. Its connectivity includes a composite and two HDMI inputs and it has a built-in 2W mono speaker. The projector includes a VGA cable and an IR remote control. UPC: 887899913556 In the Box Acer H6517ST 3000-Lumen 1080p Short Throw DLP 3D Projector VGA Cable Remote Control with Batteries User Manual PDF 6.1mbysxazwbuqtbeztevbaxtxzqrwtvfaaarq Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer H6517ST 3000-Lumen 1080p Short Throw DLP 3D Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer H6517ST Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1080 (Full HD) | | Supported Resolutions | Maximum: Full HD 1080p - 1920 x 1200
VGA - 640 x 480 @ 60 Hz
VGA - 640 x 480 @ 72 Hz
VGA - 640 x 480 @ 75 Hz
VGA - 640 x 480 @ 85 Hz
VGA - 640 x 480 @ 120 Hz
SVGA - 800 x 600 @ 56 Hz
SVGA - 800 x 600 @ 60 Hz
SVGA - 800 x 600 @ 72 Hz
SVGA - 800 x 600 @ 75 Hz
SVGA - 800 x 600 @ 85 Hz
SVGA - 800 x 600 @ 120 Hz
XGA - 1024 x 768 @ 60 Hz
XGA - 1024 x 768 @ 70 Hz
XGA - 1024 x 768 @ 75 Hz
XGA - 1024 x 768 @ 85 Hz
XGA - 1024 x 768 @ 120 Hz
SXGA - 1152 x 864 @ 70 Hz
SXGA - 1152 x 864 @ 75 Hz
SXGA - 1152 x 864 @ 85 Hz
SXGA - 1280 x 1024 @ 60 Hz
SXGA - 1280 x 1024 @ 72 Hz
SXGA - 1280 x 1024 @ 75 Hz
SXGA - 1280 x 1024 @ 85 Hz
1280 x 960 @ 60 Hz
1280 x 960 @ 75 Hz
SXGA+ - 1400 x 1050 @ 60 Hz
UXGA - 1600 x 1200 @ 60 Hz
640 x 480 @ 60 Hz
640 x 480 @ 67 Hz
800 x 600 @ 60 Hz
1024 x 768 @ 60 Hz
1152 x 870 @ 75 Hz
1280 x 960 @ 75 Hz
1024 x 768 @ 75 Hz
WXGA - 1280 x 768 @ 60 Hz
WXGA - 1280 x 768 @ 75 Hz
WXGA - 1280 x 768 @ 85 Hz
WXGA - 1280 x 720 @ 60 Hz
WXGA - 1280 x 720 @ 120 Hz
WXGA - 1280 x 800 @ 120 Hz
WXGA - 1920 x 1200 @ 60 Hz
WXGA - 1440 x 900 @ 60 Hz
WSXGA+ - 1680 x 1050 @ 60 Hz
WSXGA+ - 1920 x 1080 @ 60 Hz
1366 x 768 @ 60 Hz
WUXGA - 1920 x 1200 @ 60 Hz
720 x 480 @ 60 Hz
1440 x 480 @ 30 Hz
720 x 576 @ 50 Hz
1440 x 576 @ 25 Hz
1280 x 720 @ 60 Hz
1280 x 720 @ 50 Hz
1920 x 1080 @ 60 Hz
1920 x 1080 @ 30 Hz
1920 x 1080 @ 50 Hz
1920 x 1080 @ 25 Hz
1920 x 1080 @ 24 Hz
VGA - 640 x 480 @ 60 Hz
720 x 480 @ 60 Hz
1440 x 480 @ 60 Hz
720 x 576 @ 50 Hz
1440 x 576 @ 50 Hz
1440 x 480 @ 60 Hz | | Max Brightness | 3000 Lumens | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Contrast Ratio | 10000:1 | | DLP Link 3D | Yes | | Supported 3D Formats | Frame Packing (up to 1080i/p)
Top Bottom (up to 1080i/p)
Side by Side (up to 1080p) | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Vertical: 24 to 120 Hz

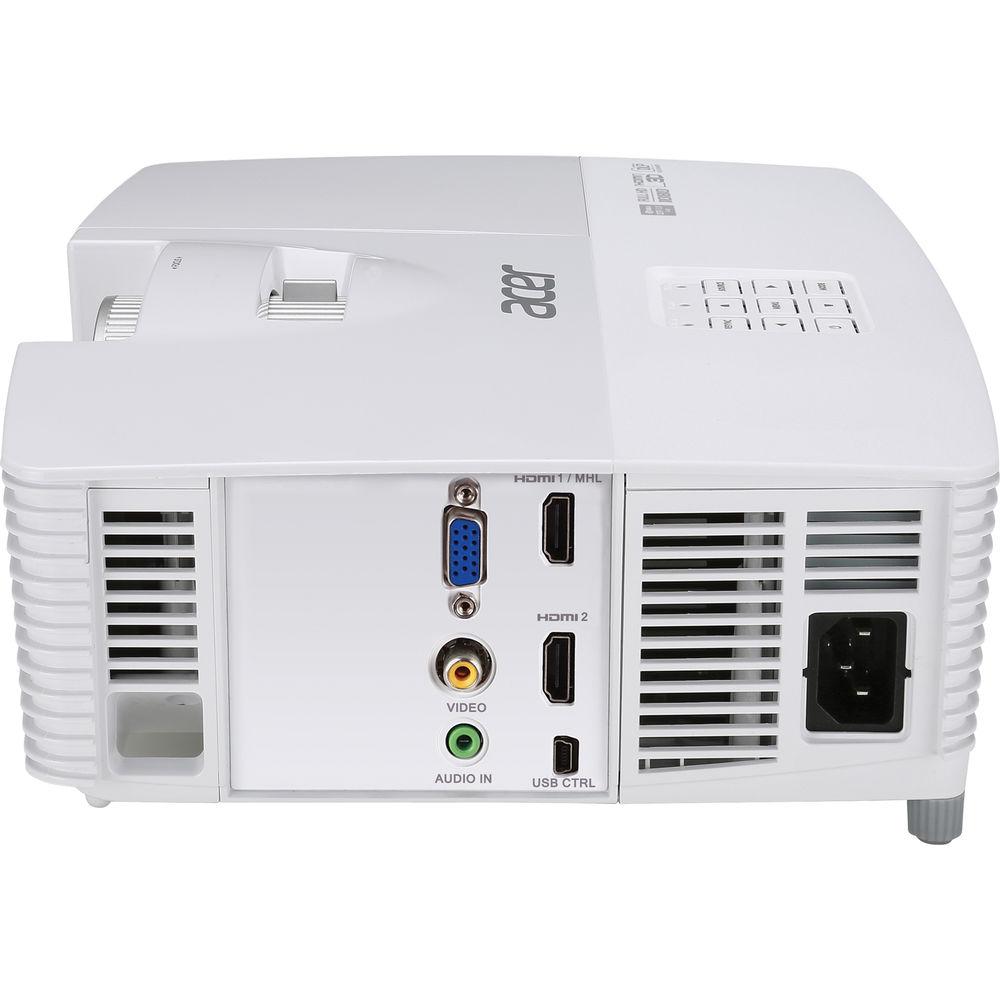

Horizontal: 15 to 100 Hz | | | | Focus | Manual | | Lens | f/2.80 (f = 7.42 mm) | | Throw Distance | 19.69 - 130" / 50.013 - 330.2 cm | | Throw Ratio | 0.5:1 (181" @ 2 m) | | Projection Size | 45 - 300" / 114.30 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Digital Zoom | 2x | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 2W | | Closed Captioning | Yes | | | | Inputs/Outputs | 2 x HDMI Audio/Video (Input)
1 x Mini-USB Type-A Female (Input)
1 x Composite (RCA) Video (Input)
1 x VGA (DE-15) Video (Input)
1 x 1/8" (3.5 mm) Mini Audio (Input) | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x OSRAM) | | Lamp Power | 210 W | | Expected Lamp Life | Medium Brightness: 4000 Hours
Low Brightness: 8000 Hours | | Fan Noise | Medium Brightness: 33 dB
Low Brightness: 27 dB | | Security | Keypad Lock
Security Bar | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 255 W
Low Brightness: 196 W
Standby Mode (Lamp Off): <0.5 W | | Max Operating Altitude | 10000' / 3048 m | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 80% | | Dimensions (W x H x D) | 8.8 x 3.7 x 12.4" / 22.4 x 9.4 x 31.5 cm | | Weight | 5.51 lb / 2.50 kg Approximately | | | | Package Weight | 9.45 lb | | Box Dimensions (LxWxH) | 15.827 x 11.496 x 5.984" |
