Product description Buying Guide to Projectors Read More bfyvrrdqvdcwtszazyzwyxdcfxsqdwaut The H6810 HDR XPR UHD DLP Home Theater Projector from Acer uses XPR technology to produce UHD 4K on-screen images with compatible content and features HDR10 compatibility to produce a wide color gamut. It outputs up to 3500 ANSI lumens of brightness and has a 10,000:1 dynamic contrast ratio to help produce details even in dark areas of the image. There is a 5.57 to 18.67mm manual focus and zoom lens with a 1.2x optical zoom. The 240W UHP lamp has a 4000 hour lamp life in normal mode. This can be extended if it is used in Eco mode to 10,000 hours and in ExtremeEco mode to 15,000 hours. This projector features two HDMI inputs (one version 2.0), one VGA video input, and 3.5mm input and output audio connectors. - XPR technology combines image processing with the ability of the DMD's mirrors to shift at the microsecond level to allow each mirror to project two pixels per frame, creating a UHD 4K image from an otherwise non-UHD chip
- Projects images onto screens of up to 300"
- HDR compatibility adjusts bright and dark scenes to bring out the correct color

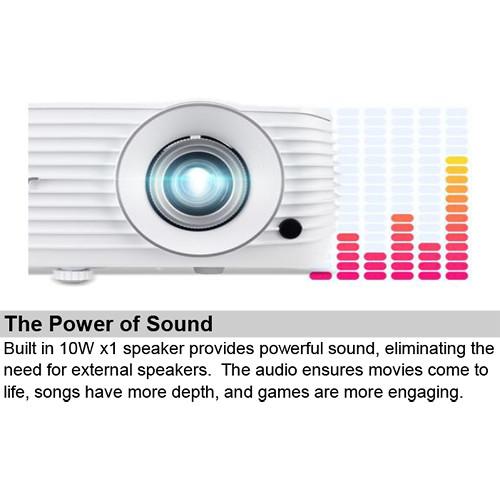

- Built-in 10W speaker provides powerful sound and eliminates the need for external speakers
- Auto ceiling mount correction automatically flips the projected image over if the projector is turned upside-down
- EcoProjection automatically reduces standby power consumption by as much as 80%
UPC: 191114579497 In the Box Acer H6810 HDR XPR UHD DLP Home Theater Projector AC Power Cord HDMI Cable Remote Control Battery for Remote Control Lens Cap Security Card Carrying Case Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer H6810 HDR XPR UHD DLP Home Theater Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer H6810 Specs | | | Display System | 1-Chip 0.47" DMD DLP | | On-Screen Resolution | Up to UHD 4K (3840 x 2160) via XPR | | Supported Resolutions | Maximum: UHD 4K - 3840 x 2160 | | Max Brightness | 3500 Lumens | | Aspect Ratio | Native: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 10,000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 135 kHz

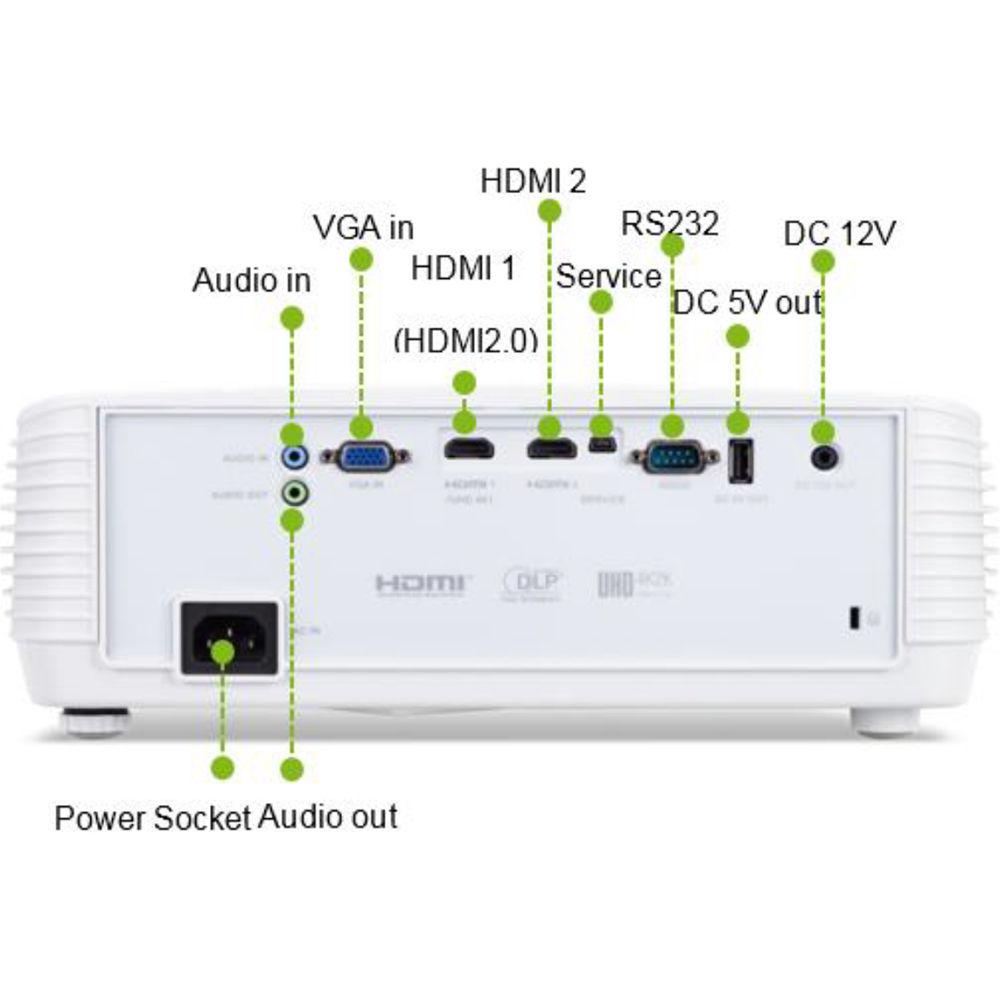

Vertical: 24 to 120 kHz | | | | Focus | Manual | | Lens | f/1.94 - 2.06 (f = 5.57 - 18.67 mm) | | Optical Zoom | Manual: 1.2x | | Throw Distance | 3.3 - 32' / 1.006 - 9.754 m | | Throw Ratio | 1.47 - 1.76:1 (100" @ 3.25 m) | | Projection Size | 26 - 300" / .66 - 7.62 m | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Mono) | | Speaker Power | 10W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15) Video Input
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x USB 2.0 (USB Type-A) Power Output
1 x USB 2.0 (Mini-USB) Control
1 x RS-232 (DE-9) Control
1 x 12 V Trigger Control | | | | Wireless LAN / Wi-Fi | None | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 240 W | | Expected Lamp Life | Full Brightness: 4000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Full Brightness: 33 dB
Medium Brightness: 29 dB
Low Brightness: 23 dB | | Security | Cable Lock Slot | | AC Input Power | 120 VAC, 60 Hz | | Power Consumption | Full Brightness: 335 W
Low Brightness: 270 W
Standby Mode (Lamp Off): <0.5 W | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 0 - 80% | | Dimensions (W x H x D) | 13.5 x 4.9 x 10.2" / 342.9 x 124.5 x 259.1 mm | | Weight | 8.82 lb / 4.00 kg | | | | Package Weight | 12.05 lb | | Box Dimensions (LxWxH) | 17.8 x 13.2 x 7.3" |
