User Manual for Acer KG270 27" 16:9 LCD Monitor Click to enlarge the picture
Contents of the user manual for the Acer KG270 27" 16:9 LCD Monitor
- Product category: Computer Monitors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Computer Monitors
 |
User manual for the Acer KG270 27" 16:9 LCD Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a Full HD resolution, the KG270 27" 16:9 HD LCD Monitor from Acer offers increased clarity regardless of the content being viewed on the screen. In addition to the 1920 x 1080 resolution this widescreen display features a 300 cd/m² brightness rating, a 100,000,000:1 dynamic contrast ratio, and a 1 ms response for a bright, dynamic picture with reduced ghosting.
Setup and configuration of the KG270 is simple as it comes equipped with both HDMI and VGA inputs. Once configured the ergonomic stand allows the display to be tilted from -5 to 15° for enhanced viewing comfort. To further enhance your viewing experience Acer has included both Flicker-less and Low Blue Light technologies right into the monitor to reduce the strain placed on your eyes during extended viewing sessions. - Improved Viewing Experience
- The Acer KG 27" monitor features a Full HD resolution (1920 x 1080) presenting high quality images with enhanced detail that not only improves users' working efficiency, but creates visual enjoyment.
With AMD FreeSync, a game's frame rate is determined by your graphics card, not the fixed refresh rate of the monitor. This means the monitor's frames are synced with the graphics card's frames, which eliminates screen tearing and delivers very smooth gaming experiences.
A fast response time of 1 ms enhances the in-game experience. No matter how fast-moving the action is, transitions are rendered smoothly without the annoying effects of smearing or ghosting. - Eye Care Technologies
- Acer's large 27-inch flicker-less monitor eliminates annoying screen flicker, and provides a comfortable viewing experience, especially for those heavy monitor users, like programmers, writers, students, or graphic designers.
For users who need to view their monitors for extended periods, the KG monitor is equipped with Acer EyeProtect technology that reduces eye strain and provides a comfortable viewing experience. Flicker-less technology helps to eliminate screen flicker and a Blue Light Filter reduces exposure to blue light that can potentially cause long-term eye damage. - Ergonomic Design

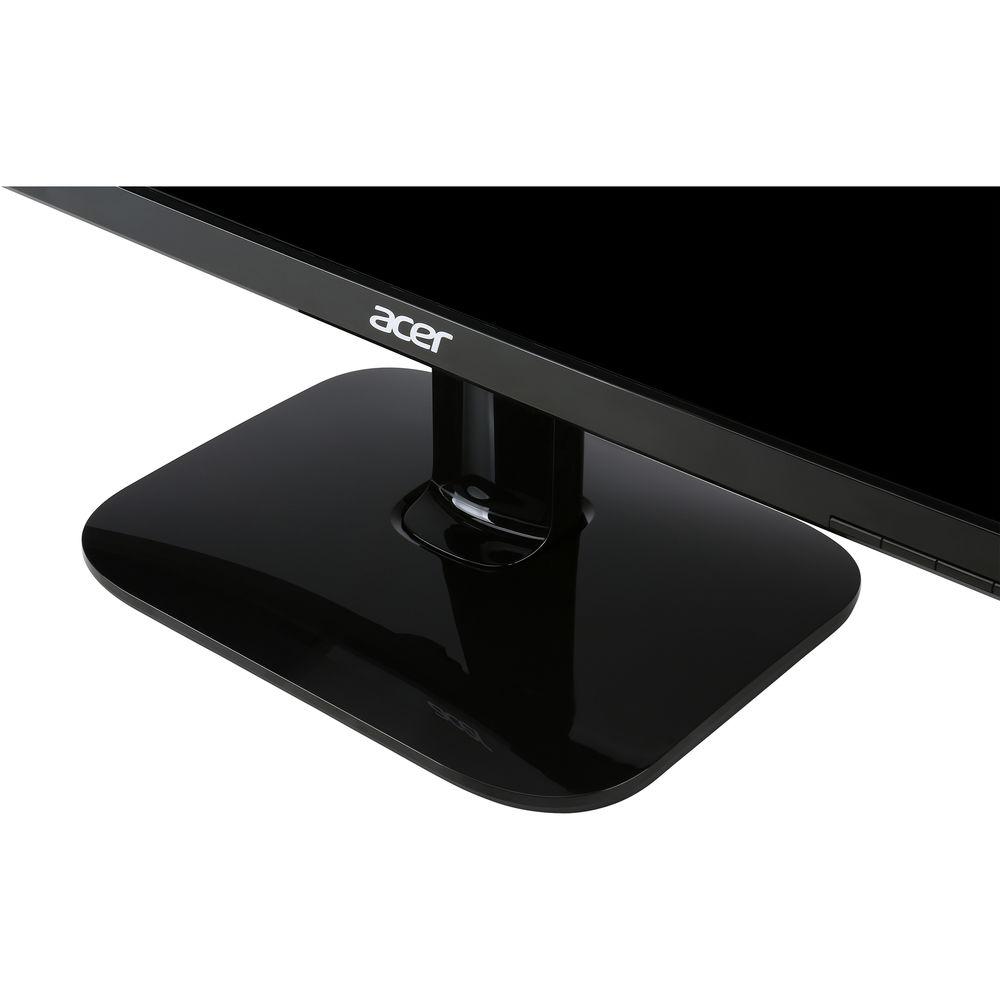

- Give your neck a break too, the ergonomic stand lets you find your most comfortable view with tilts from -5 - 15°.
As part of our commitment to sustainable operations and corporate social responsibility, Acer uses methods to carry out product design and material management distinctly meant to reduce environmental impact. UPC: 888863860791 In the Box Acer KG270 27" 16:9 LCD Monitor Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer KG270 27" 16:9 LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer KG270 Specs | | | Size | 27" | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Finish | Matte | | Maximum Brightness | 300 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Response Time | 1 ms | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.3113 x 0.3113 mm | | | | Connectivity | 2 x HDMI
1 x VGA | | | | Power Consumption | 19.5 W (Typical)
1 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | | | Certifications | MPR II, RoHS, TCO Certified, as per Manufacturer | | | | Tilt Adjustment | -5 to 15° | | Mounting-Hole Pattern | 100 x 100 mm | | Lock Slot | Yes | | Dimensions (W x H x D) | 25.2 x 18.9 x 7.9" / 64.0 x 47.9 x 20.0 cm | | Weight | 11.7 lb / 5.3 kg | | | | Package Weight | 15.0 lb | | Box Dimensions (LxWxH) | 27.75 x 19.0 x 5.5" |
