User Manual for Acer Predator Z650 2200-Lumen Full HD DLP Projector Click to enlarge the picture
Contents of the user manual for the Acer Predator Z650 2200-Lumen Full HD
- Product category: Multimedia Projectors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Multimedia Projectors
 |
User manual for the Acer Predator Z650 2200-Lumen Full HD contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|

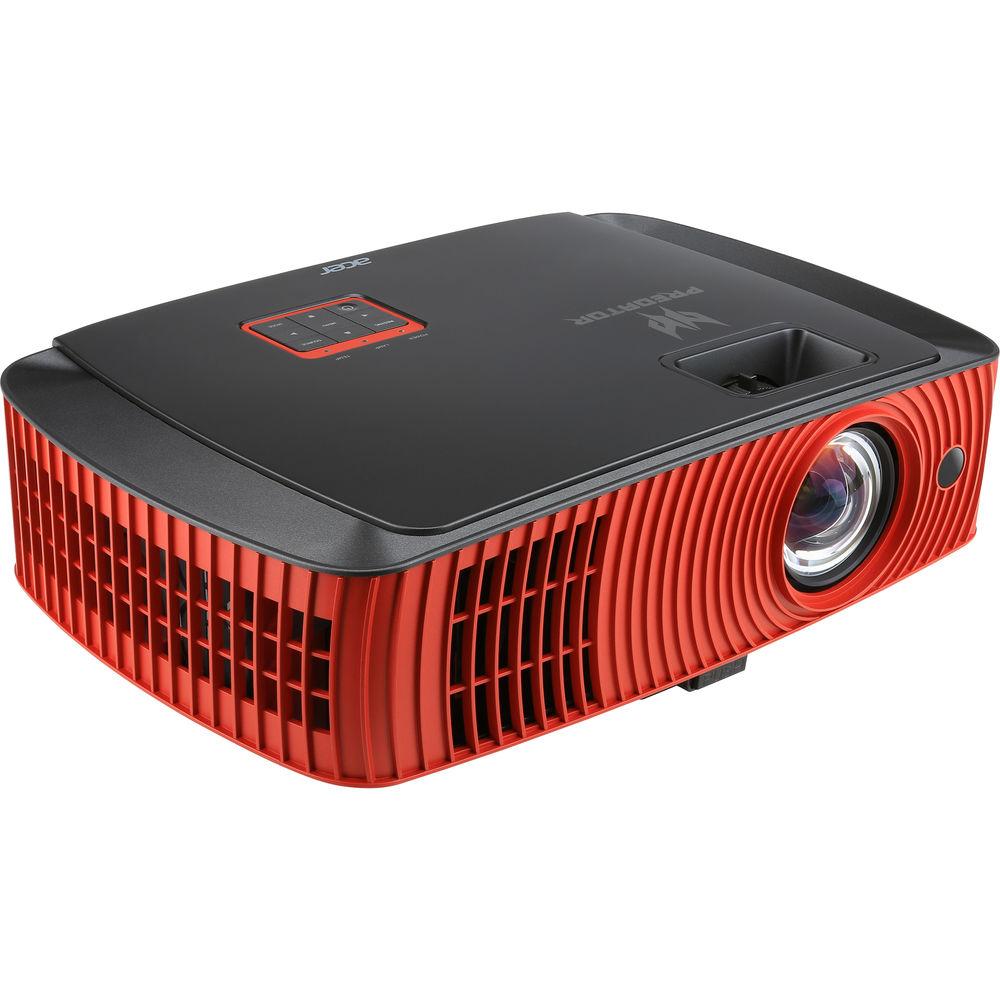

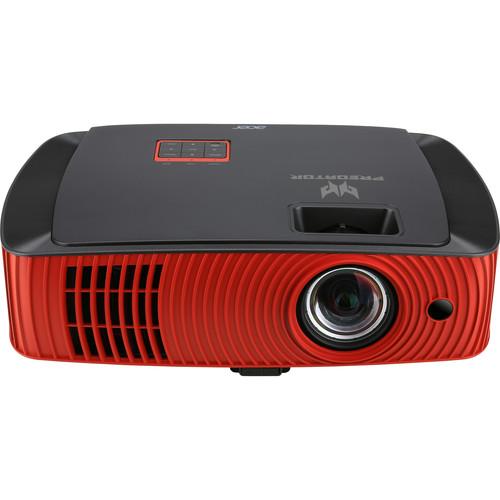

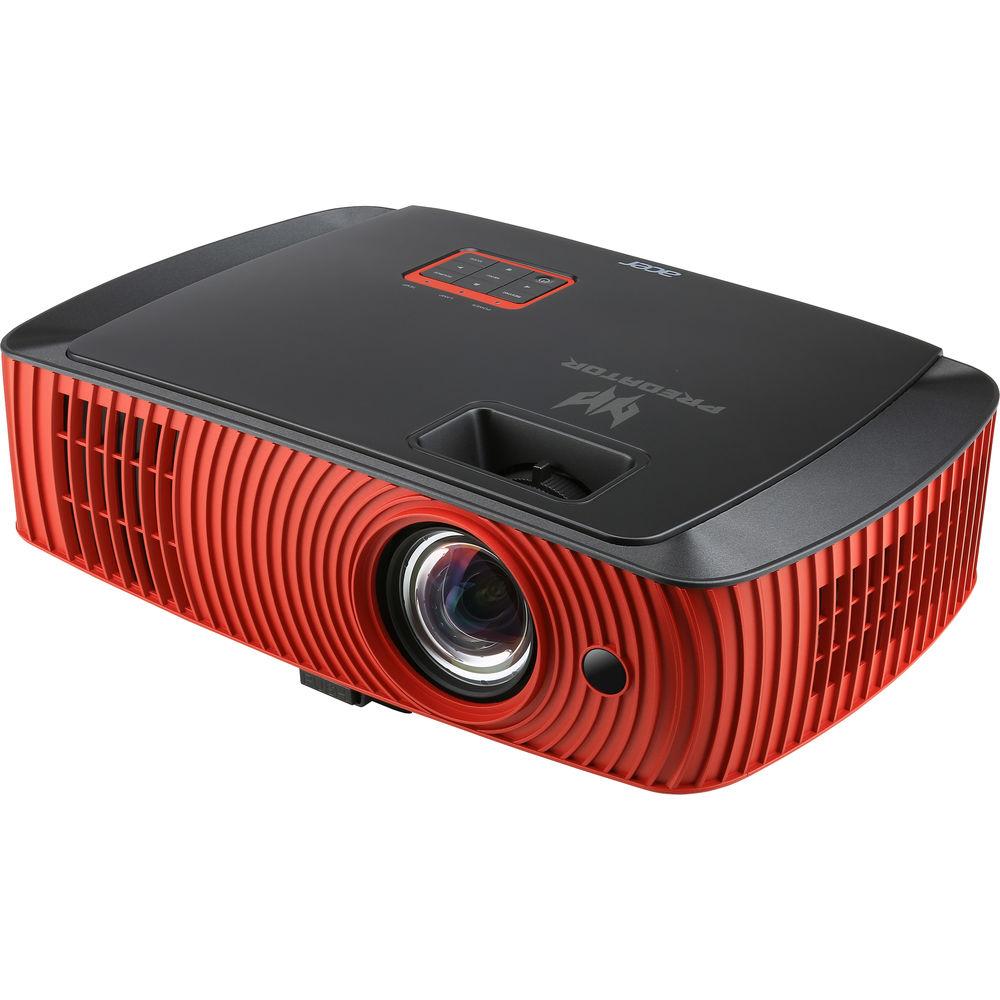

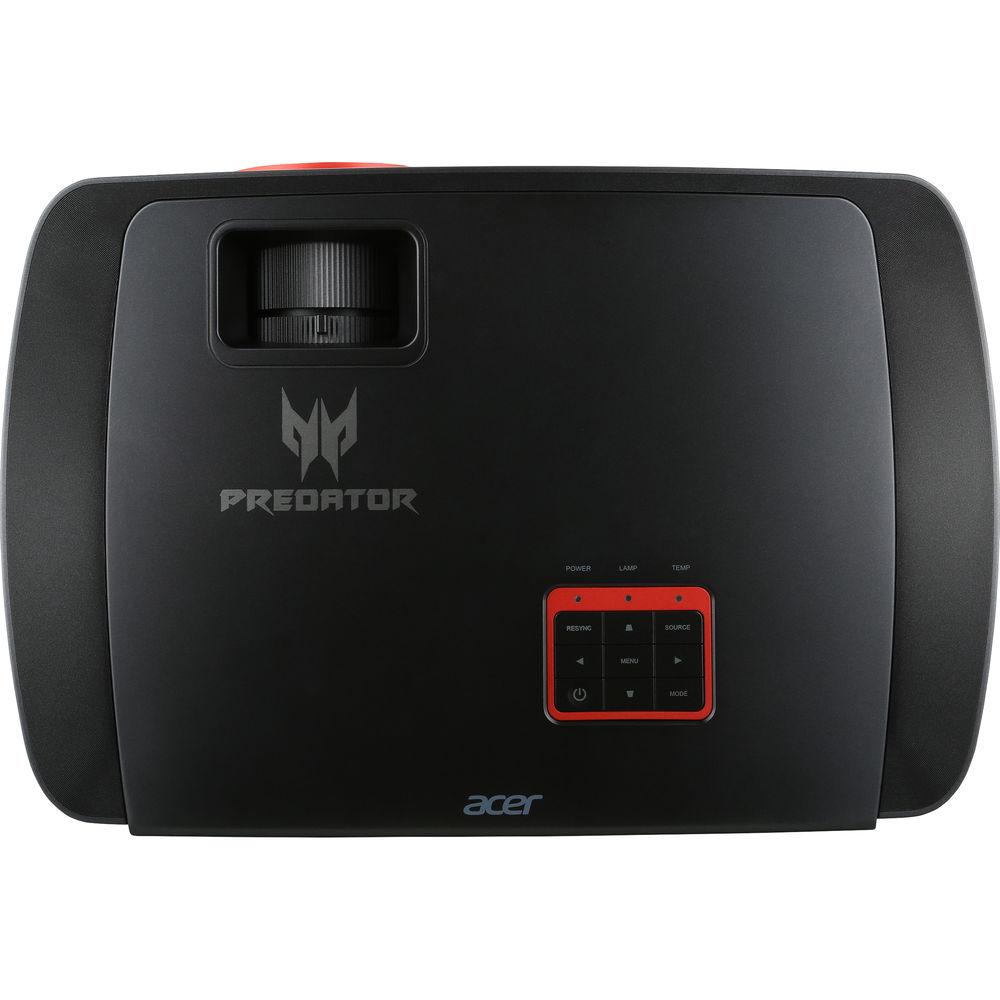

Product description The Predator Z650 2200-Lumen Full HD DLP Projector from Acer provides a 20,000:1 contrast ratio, with a 1920 x 1080 native resolution and long lamp life of up to 6,000 hours in ECO mode. The Predator Z650 projects up to a 300" diagonal image, and features a wide range of inputs including HDMI, composite, and S-video. The projector also comes equipped with a USB port for control purposes. Other features include vertical keystone correction, 1.1x optical zoom, and a 2x digital zoom. - Native aspect ratio of 16:9
- Supports Full HD (1920 x 1080)
- Throw ratio of 0.69 to 0.76:1
UPC: 888863346363 In the Box Acer Predator Z650 2200-Lumen Full HD DLP Projector Remote Control with Battery AC Power Cord Security Card VGA Cable Carrying Case Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Lamp Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer Predator Z650 2200-Lumen Full HD DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer Z650 Specs | | | Display System | DLP | | Native Chip Resolution | 1920 x 1080 | | Supported Resolutions | 1920 x 1200 | | Max Brightness | 2200 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 20000:1 | | Color Depth | 10-Bit (1.07 Billion Colors) | | Scan | Horizontal: 15 to 100 kHz
Vertical: 24 to 120 Hz | | | | Focus | Manual | | Lens | f/2.6 - 2.8 (f = 10.2 - 11.22 mm) | | Optical Zoom | Manual: 2x | | Throw Distance | 3 - 15.1' / 0.914 - 4.602 m | | Throw Ratio | 0.69 - 0.76:1 | | Projection Size | 4.5 - 300" / 11.43 - 762.00 cm | | | | Keystone Correction | Vertical: ± 30°

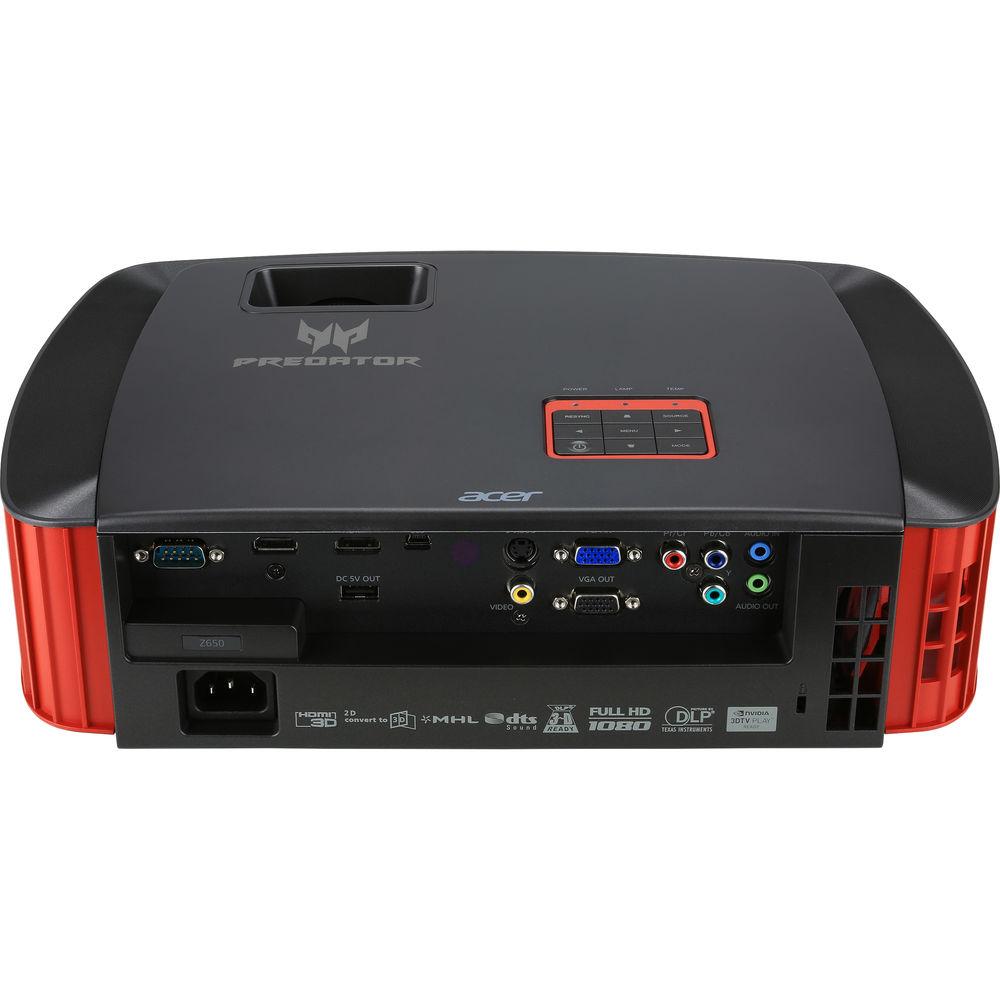

Horizontal: ± 30° | | Ceiling Mountable | Yes | | Rear Screen Projection | Yes | | Built-In Speaker | Yes (Stereo) | | Speaker Power | 10W | | | | Inputs/Outputs | 3 x HDMI Video
1 x Composite (RCA) Video
1 x Component (3RCA) Video
1 x VGA (DE-15) Video
1 x S-Video (4-Pin DIN) Video
2 x 1/8" (3.5 mm) Mini Audio
1 x Mini-USB Control | | | | Light Source | Lamp (1 x UHP) | | Lamp Power | 240 W | | Expected Lamp Life | Medium Brightness: 3000 Hours
Low Brightness: 6000 Hours | | Fan Noise | Medium Brightness: 33 dB
Low Brightness: 30 dB | | AC Input Power | 120 to 240 VAC, 50 / 60 Hz | | Power Consumption | Medium Brightness: 424 W
Low Brightness: 360 W | | Temperature | Operating
32 to 104°F (0 to 40°C)
Humidity: 0 - 80% | | Dimensions (W x H x D) | None | | Weight | 7.50 lb / 3.40 kg approximately | | | | Package Weight | 13.35 lb | | Box Dimensions (LxWxH) | 18.3 x 16.0 x 9.7" |
