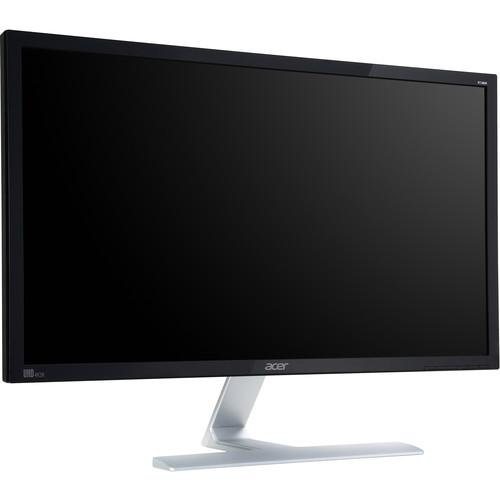

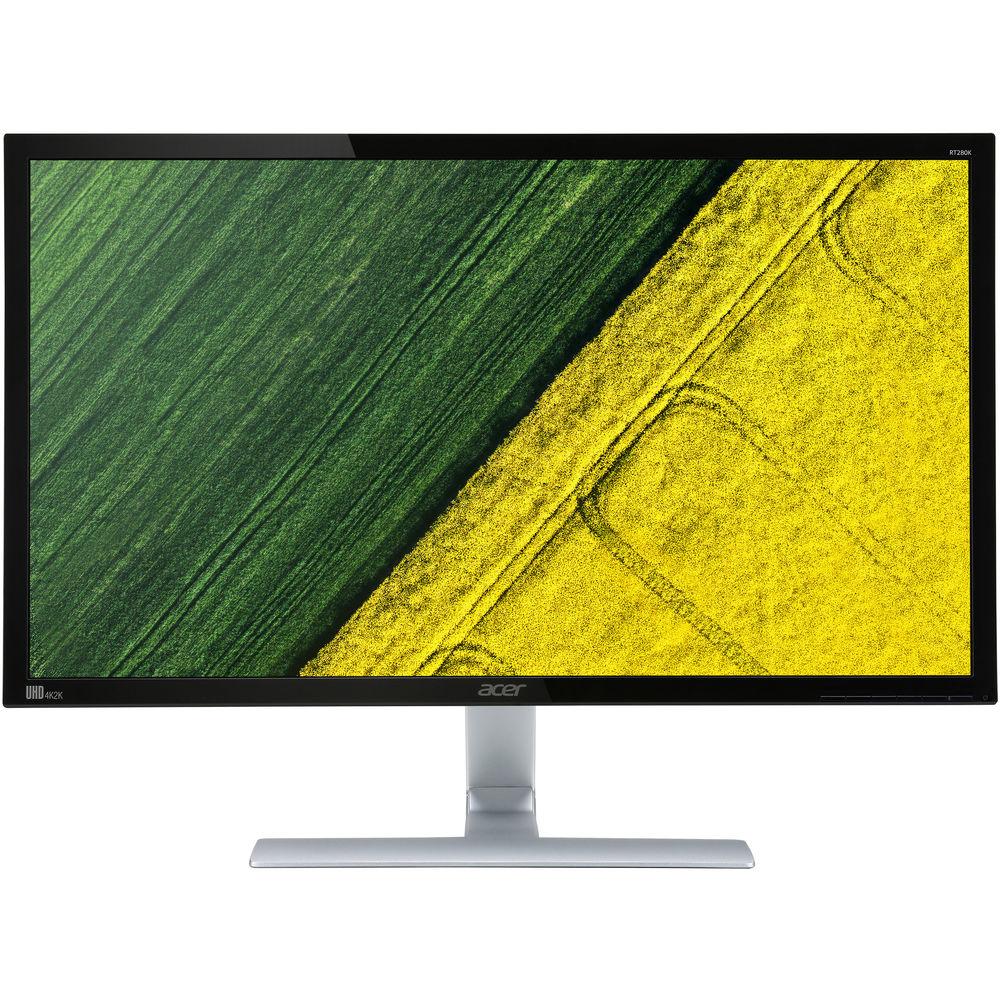

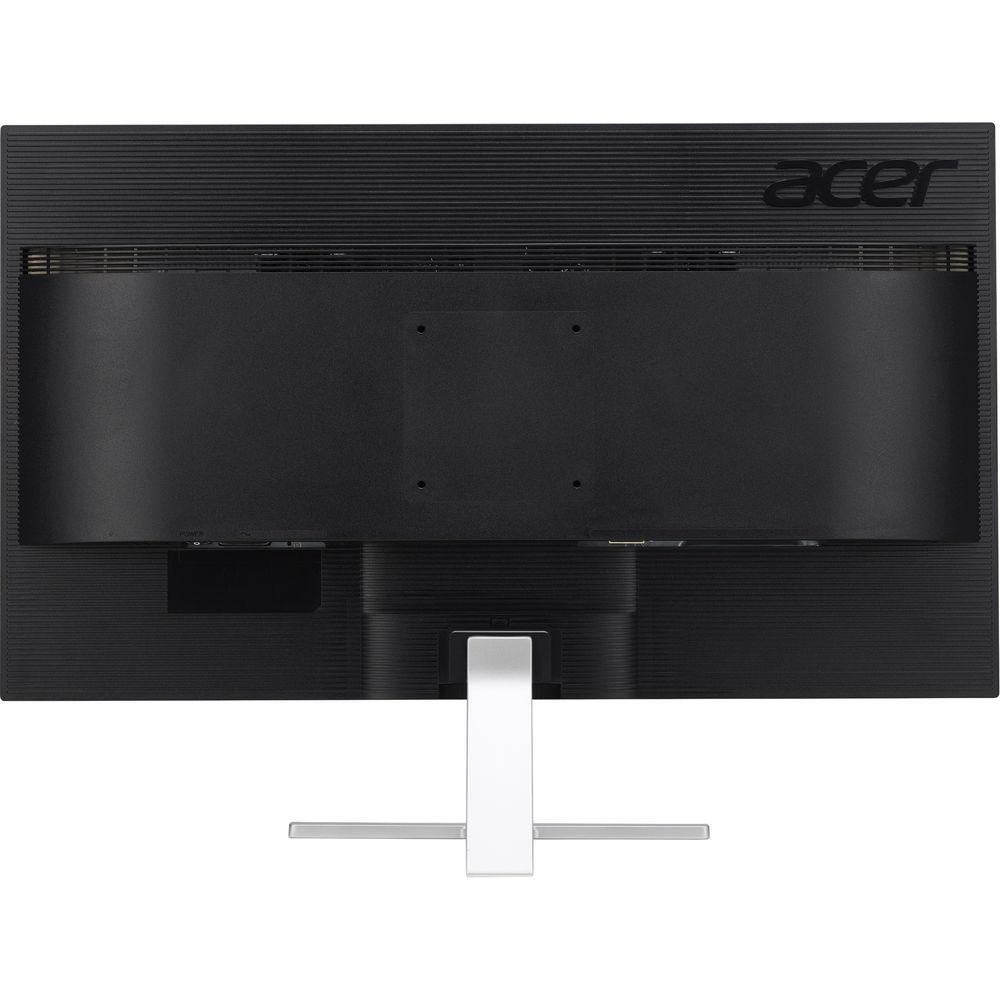

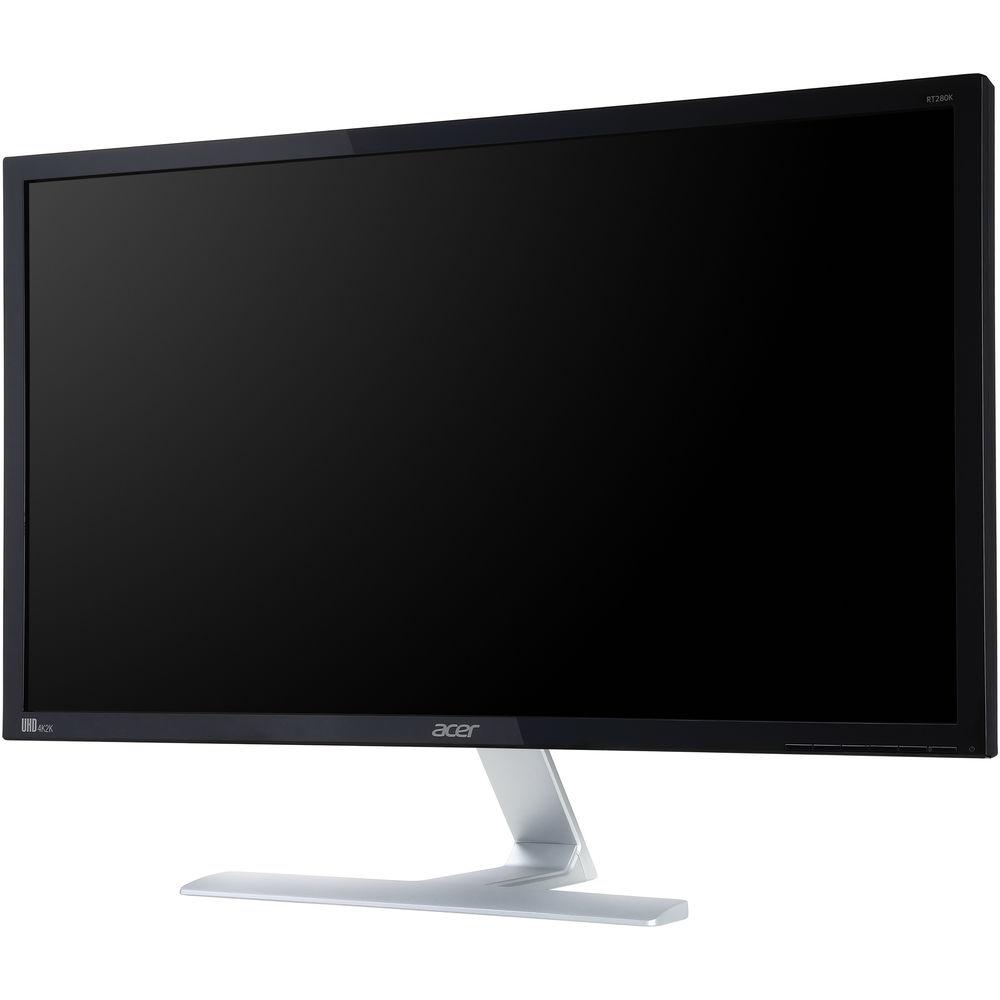

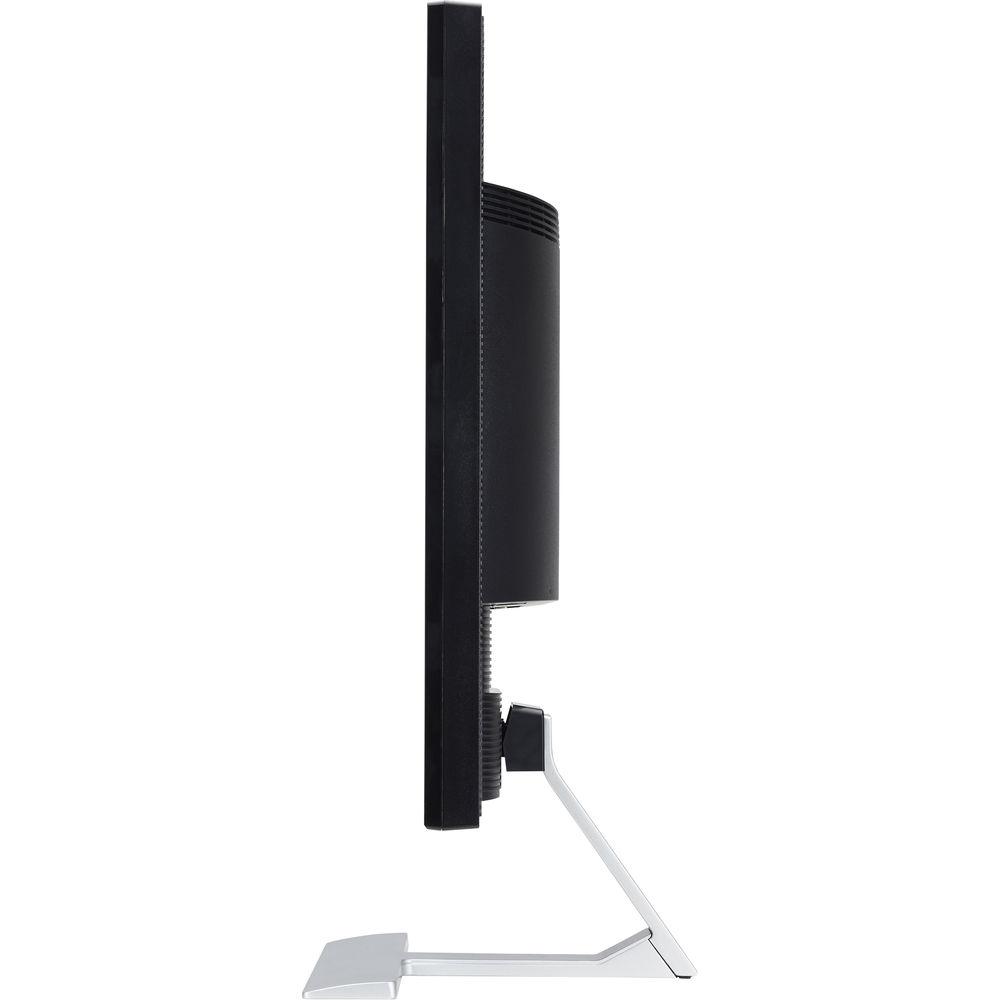

User Manual for Acer RT280K abmiipx 28" 16:9 4K LCD Monitor Click to enlarge the picture
Contents of the user manual for the Acer RT280K abmiipx 28" 16:9 4K
- Product category: Computer Monitors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Computer Monitors
 |
User manual for the Acer RT280K abmiipx 28" 16:9 4K contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|
Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More A sleek, aesthetically pleasing stand along with a ZeroFrame design makes the RT280K abmiipx 28" 16:9 4K LCD Monitor from Acer a nice addition to nearly any desktop. Besides the ultra-thin bezels, the display features a 4K UHD 3840 x 2160 resolution for enhanced picture quality, a 1 ms response time, a 330 cd/m² brightness rating, and support for up to 1.07 billion colors. Setup and configuration is simple as the RT280K comes equipped with both HDMI and DisplayPort inputs. Once configured, the display can be tilted or mounted to the wall to take advantage of the enhanced 170° horizontal and 160° vertical viewing angles. - Quality Visuals
- This display delivers a 3840 x 2160 4K UHD resolution enhanced by TN (Twisted Nematic) display technology, for vivid images that look clear from virtually any angle. You also get multiple display connectors to make it easy to connect any video source.
- Slender Body, Sleek Stand
- This RT0 monitor features a very thin panel. Its "ZeroFrame" design means the bezels around the sides of the screen are also very thin, to minimize visual clutter. The slender screen is balanced by the sleek T-shaped stand.
- Good for Your Eyes
- This RT0 display uses Flicker-less technology to reduce eye-strain-causing screen flickering. Blue Light Filter tech lets you filter out strain-causing blue light when you have to work long hours, and Acer ComfyView tech reduces the light reflected off the screen.
- No Screen Tearing
- Virtually eliminate stuttering and tearing with FreeSync and Adaptive-Sync technologies, designed to match the refresh rate of your monitor with your graphics card for a smooth gaming experience.
UPC: 191114801109 In the Box Acer RT280K abmiipx 28" 16:9 4K LCD Monitor DisplayPort Cable Power Cable Limited 3-Year Warranty User Manual PDF 2.8mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer RT280K abmiipx 28" 16:9 4K LCD Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer RT0 Specs | | | Size | 28" | | Screen Area | 24.44 x 13.43" / 62.09 x 34.12 cm | | Panel Type | TN LCD | | Touchscreen | No | | Resolution | 3840 x 2160 | | Aspect Ratio | 16:9 | | Pixels Per Inch (ppi) | 157 ppi | | Finish | Matte | | Maximum Brightness | 330 cd/m2 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | FreeSync | | Horizontal Frequency | 30 to 160 kHz (HDMI)
160 to 160 Hz (DisplayPort) | | Vertical Frequency | 40 to 60 Hz (HDMI)
40 to 60 Hz (DisplayPort) | | Pixel Clock Frequency | 600 MHz | | Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) | | HDR Compatibility | None | | Response Time | 1 ms (GtG) | | Viewing Angle | Horizontal: 170°
Vertical: 160° | | Dot Pitch | 0.16 x 0.16 mm | | | | Connectivity | 2 x HDMI Input
1 x DisplayPort Input | | Built-In Speakers | Yes, 2 x 2 W | | | | Power Consumption | 41.5 W (Typical)
0.5 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Operating Humidity | 20 to 80% | | | | Height Adjustment | None | | Rotation Adjustment | None | | Swivel Adjustment | None | | Tilt Adjustment | -5 to 15° | | Dimensions (W x H x D) | 25.9 x 19.0 x 8.3" / 65.9 x 48.2 x 21.0 cm | | Weight | 12.43 lb / 5.64 kg | | | | Package Weight | 16.2 lb | | Box Dimensions (LxWxH) | 24.2 x 16.6 x 7.9" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 40 owners. Add your rating and experience with the product.
