Acer S1 Series S1286HN 3500-Lumen XGA

Search your instruction manual in PDF to download

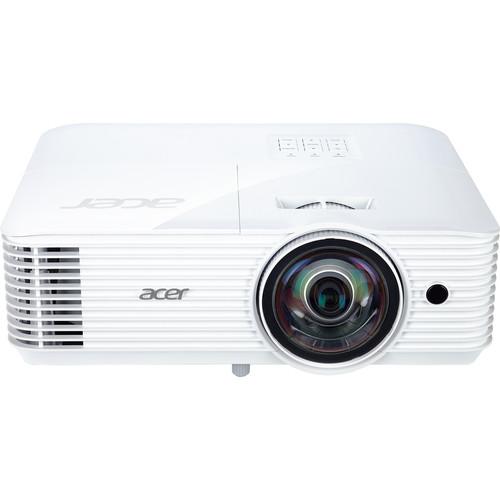

User Manual for Acer S1 Series S1286HN 3500-Lumen XGA Short Throw DLP Projector

Click to enlarge the picture
Acer S1 Series S1286HN 3500-Lumen XGA Short Throw DLP Projector Contents of the user manual for the Acer S1 Series S1286HN 3500-Lumen XGA
  • Product category: Multimedia Projectors Acer
  • Brand: Acer
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Acer Multimedia Projectors

User manual for the Acer S1 Series S1286HN 3500-Lumen XGA contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Acer product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!



Product description

The S1 Series S1286HN XGA DLP Projector from Acer supports a native resolution of 1024 x 768 and a maximum resolution of 1920 x 1200. It features a brightness of 3500 lumens and a native aspect ratio of 4:3. This projector has a 7.15mm manual focus lens with a f/2.7 aperture and a lamp power of 220W. It has two HDMI ports, one composite video port, one RJ45 Ethernet port, two VGA input ports, and one VGA output port. Audio input and output are supported with a 16W speaker output. An AC power cord, a remote control with battery, a security card, and a VGA cable are included.
  • Displays 1.07 billion colors
  • Ceiling, front, rear, or rear ceiling mountable
  • EDTV, HDTV, NTSC, PAL, SDTV, and SECAM video compatibility
  • Mac and Windows compatibility
  • Adobe PDF Viewer, Microsoft Excel, Microsoft PowerPoint, Microsoft Word, and Photo Slide Show multimedia playback
  • 0.62:1 throw ratio (77" diagonal @ 38.19")
  • ColorBoost3D combines three color technologies to reproduce images that are lifelike, natural and bright
  • Crestron control systems allow you to control, maintain, and monitor your device anywhere with an internet connection
  • Lamp life can be extended up to 6,000 hours using Economy mode and up to 10,000 hours using ExtremeEco mode
UPC: 191114576700 In the Box Acer S1 Series S1286HN 3500-Lumen XGA Short Throw DLP Projector
  • AC Power Cord
  • Remote Control
  • Battery for Remote Control
  • Security Card
  • VGA Cable
  • Limited 1-Year Warranty on Projector
  • Limited 90-Day Warranty on Lens
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the Acer S1 Series S1286HN 3500-Lumen XGA Short Throw DLP Projector in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    Acer S1286HN Specs

    Display System DLP
    Native Chip Resolution 1024 x 768 (XGA)
    Supported Resolutions Maximum: 1920 x 1200
    Max Brightness 3500 Lumens
    Aspect Ratio Native: 4:3
    Supported: 16:9
    Dynamic Contrast Ratio 20,000:1
    Color Depth 10-Bit (1.07 Billion Colors)
    Focus Manual
    Lens f/2.7 (f = 7.15 mm)
    Optical Zoom None
    Throw Distance 15.75 - 149.64" / 40.005 - 380.086 cm
    Throw Ratio 0.62:1
    Projection Size 32 - 300" / 81.28 - 762.00 cm
    Keystone Correction Manual-Vertical: ± 15°
    Manual-Horizontal: ± 10°
    Digital Zoom 2x
    Ceiling Mountable Yes
    Rear Screen Projection Yes
    Built-In Speaker Yes (Mono)
    Speaker Power 16W
    Inputs/Outputs 2 x HDMI (HDMI Type-A) Video
    1 x Composite (RCA) Video
    1 x RJ45 LAN
    2 x VGA (DE-15) Video Input
    1 x VGA (DE-15) Video Output
    1 x 1/8" (3.5 mm) Mini Audio Input
    1 x 1/8" (3.5 mm) Mini Audio Output
    Wireless LAN / Wi-Fi No, Optional Adapter Available
    Light Source Lamp (1 x OSRAM)
    Lamp Power 220 W
    Expected Lamp Life Full Brightness: 5000 Hours
    Medium Brightness: 6000 Hours
    Low Brightness: 10,000 Hours
    Fan Noise Medium Brightness: 24 dB
    Full Brightness: 32 dB
    AC Input Power 100 to 240 VAC, 50 / 60 Hz
    Power Consumption Full Brightness: 270 W
    Medium Brightness: 210 W
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 0 - 80%
    Dimensions (W x H x D) 12.3 x 4.5 x 10.0" / 31.2 x 11.4 x 25.4 cm
    Weight 6.83 lb / 3.10 kg
    Package Weight 9.265 lb
    Box Dimensions (LxWxH) 15.7 x 13.8 x 6.6"
