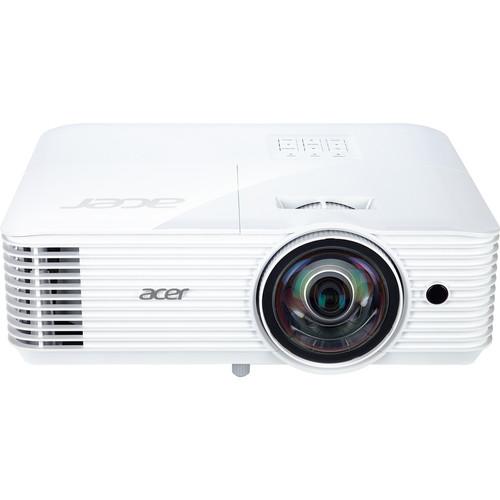

User Manual for Acer S1 Series S1386WHN 3600-Lumen WXGA DLP Short-Throw Projector Click to enlarge the picture
Contents of the user manual for the Acer S1 Series S1386WHN 3600-Lumen WXGA
- Product category: Multimedia Projectors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Multimedia Projectors
|
User manual for the Acer S1 Series S1386WHN 3600-Lumen WXGA contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|
Product description The S1 Series S1386WHN 3600-Lumen WXGA DLP Short-Throw Projector from Acer supports a native resolution of 1280 x 800 and a maximum resolution of 1920 x 1200. It features a brightness of 3600 lumens and a native aspect ratio of 16:10. This projector has a 7.51mm manual focus lens with a f/2.8 aperture and a lamp power of 220W. It has two HDMI ports, two USB Type-A ports, one composite video port, one RJ45 Ethernet port, two VGA inputs, and a VGA output. Audio input and output are supported along with a built-in 16W speaker. An AC power cord, a remote control with battery, a security card, and a VGA cable are included. - 1280 x 800 WXGA projector gives true-to-life color reproduction
- ColorBoost3D combines three color technologies to reproduce images that are lifelike, natural, and bright
- Lamp life can be extended up to 6,000 hours using Economy mode and up to 10,000 hours using ExtremeEco mode
- 0.52:1 short-throw ratio (87" diagonal @ 38.58")
UPC: 191114576717 In the Box Acer S1 Series S1386WHN 3600-Lumen WXGA DLP Short-Throw Projector AC Power Cord Remote Control Battery for Remote Control Security Card VGA Cable Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Bulb Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer S1 Series S1386WHN 3600-Lumen WXGA DLP Short-Throw Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer S1386WHN Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: 1920 x 1200 | | Max Brightness | 3600 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Contrast Ratio | 20,000:1 | | | | Focus | Manual | | Lens | f/2.8 (f = 7.51 mm) | | | | Keystone Correction | Manual-Vertical: ± 15°
Manual-Horizontal: ± 15° | | Ceiling Mountable | Yes | | Speaker Power | 16W | | | | Inputs/Outputs | 2 x HDMI (HDMI Type-A) Video
2 x USB 2.0 (USB Type-A) Control
1 x Composite (RCA) Video
1 x Ethernet (RJ45) LAN
2 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output | | Wireless LAN / Wi-Fi | No, Optional Adapter Available | | | | Light Source | Lamp (1 x OSRAM) | | Lamp Power | 220 W | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 6000 Hours
Low Brightness: 10,000 Hours | | Fan Noise | Full Brightness: 32 dB
Medium Brightness: 24 dB | | Weight | 6.83 lb / 3.10 kg |
