User Manual for Acer V196L 19" 5:4 IPS Monitor Click to enlarge the picture
Contents of the user manual for the Acer V196L 19" 5:4 IPS Monitor
- Product category: Computer Monitors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Computer Monitors
 |
User manual for the Acer V196L 19" 5:4 IPS Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|

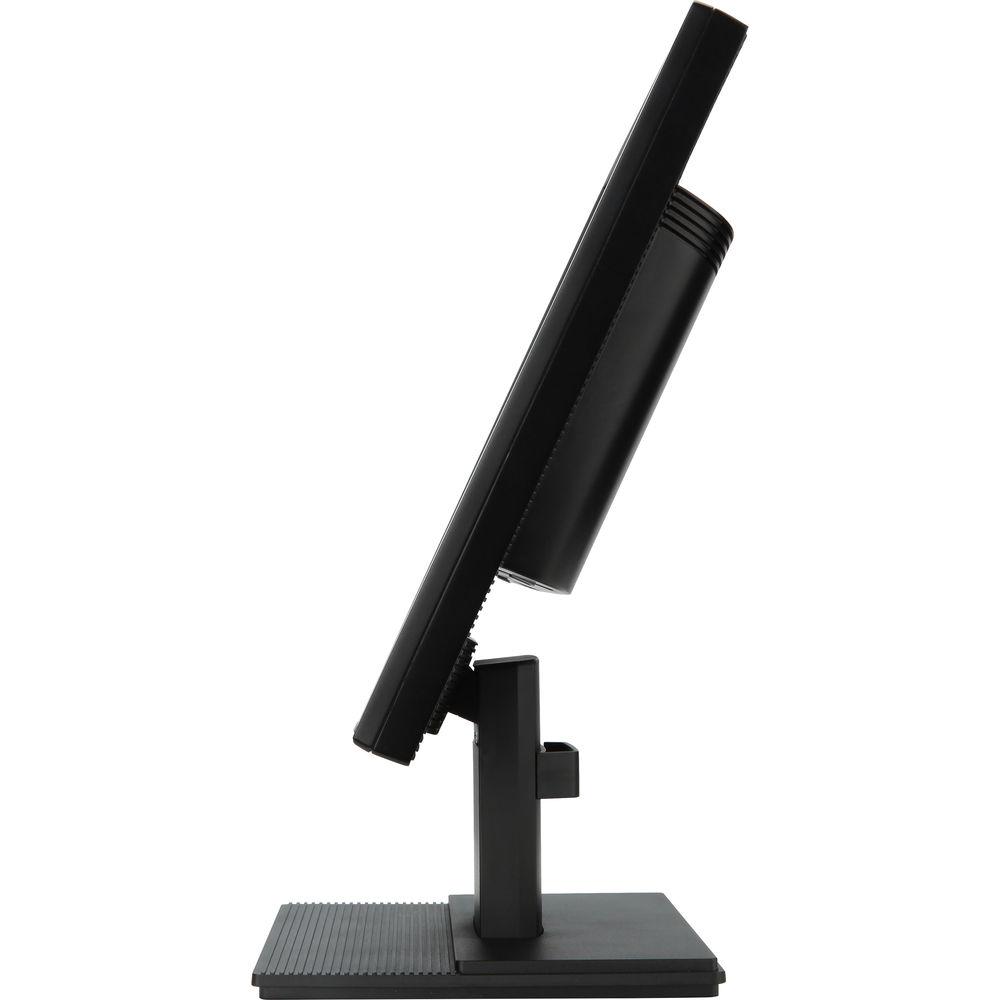

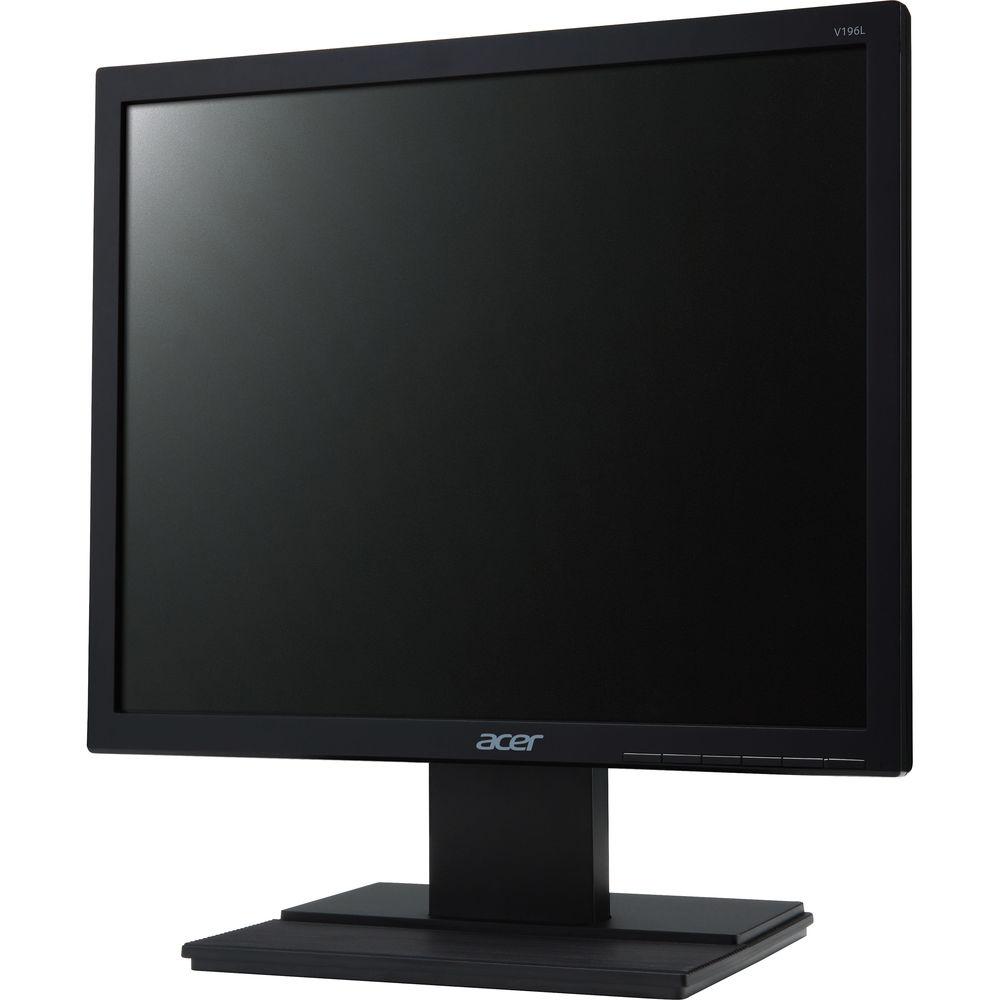

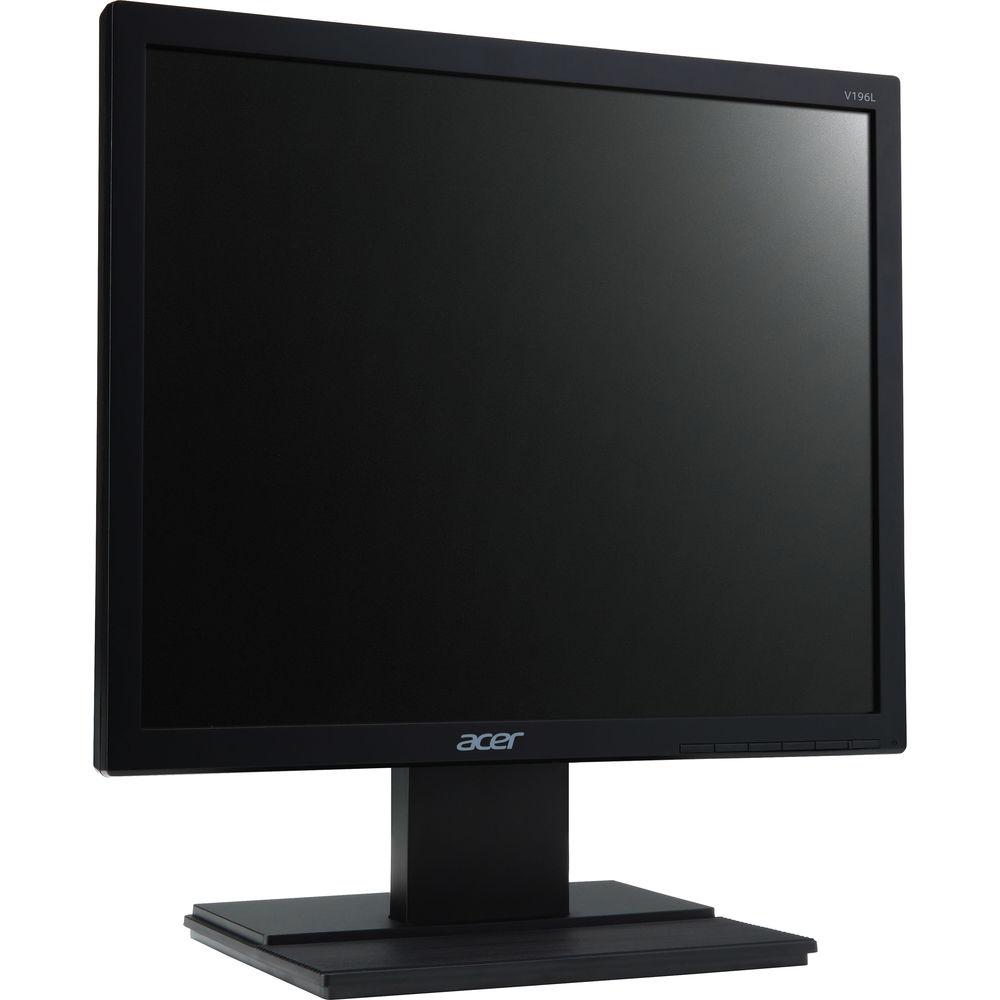

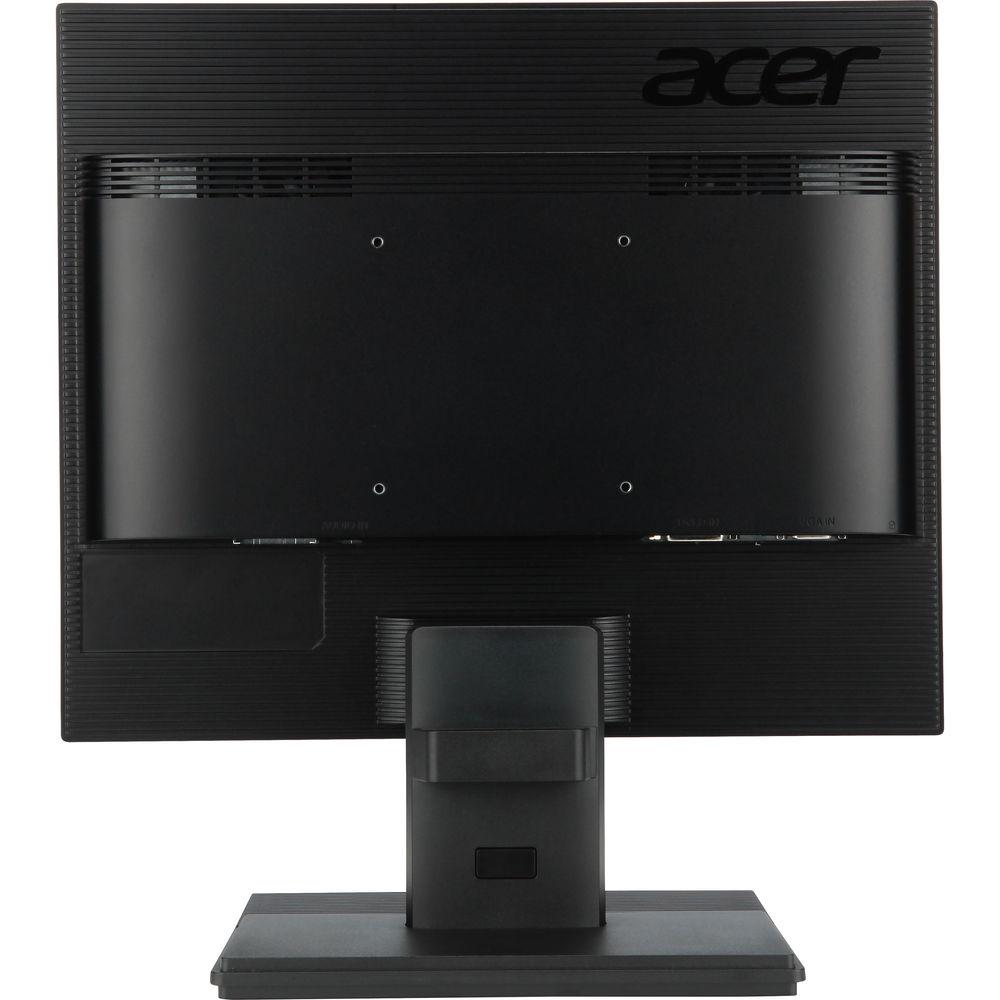

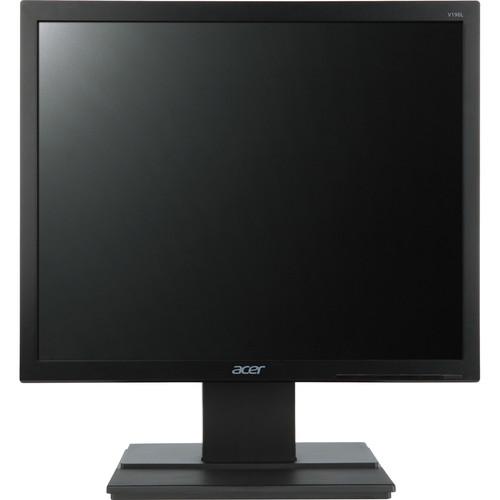

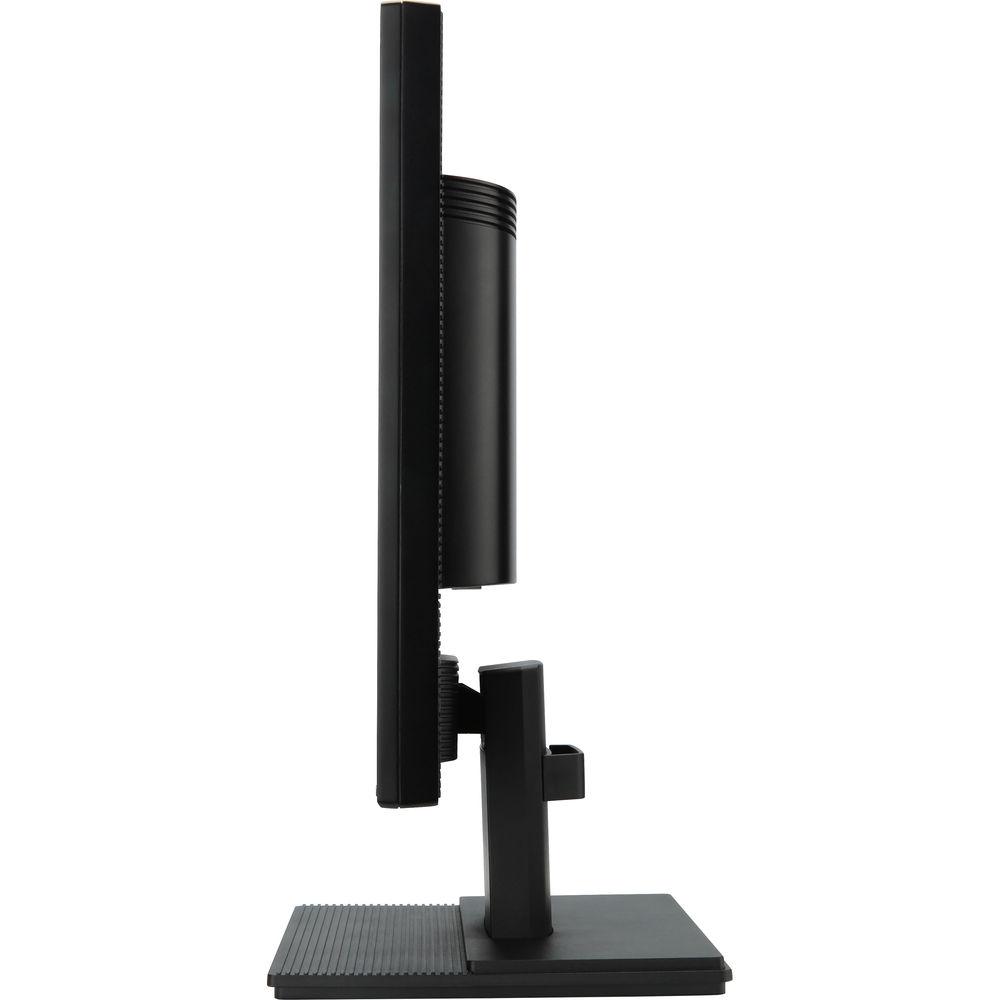

Product description 10 Factors to Consider When Selecting A Monitor for Video Editing Read More With a 5:4 aspect ratio, the V196L 19" 5:4 IPS Monitor from Acer is better suited for various business applications and much more. In addition to the aspect ratio, this Acer monitor features a 1280 x 1024 resolution, 5 ms response time, and support for up to 16.7 million colors, which provides a clear picture with accurate color representation. Setup is simple thanks to the VGA input and with the ability to tilt the display the monitor can be maneuvered into place to provide improved viewing comfort. Once configured, the IPS (In-Plane Switching) display supports 178° horizontal and vertical viewing angles allowing the screen to be viewed from a variety of angles. UPC: 888863883974 In the Box Acer V196L 19" 5:4 IPS Monitor VGA Cable Power Cord Limited 3-Year Warranty Manual PDF 1.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer V196L 19" 5:4 IPS Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer V196L Specs | | | Size | 19" | | Screen Area | 14.8 x 11.8" / 37.6 x 30 cm | | Panel Type | IPS-Type LCD | | Touchscreen | No | | Resolution | 1280 x 1024 | | Maximum Brightness | 250 cd/m2 | | Contrast Ratio | 1000:1 | | Dynamic Contrast Ratio | 100,000,000:1 | | Refresh Rate | 60 Hz | | Adaptive Sync Technology | None | | Horizontal Frequency | 30 to 80 kHz | | Vertical Frequency | 55 to 77 Hz | | Bit Depth / Color Support | 6-Bit+FRC (16.7 Million Colors) | | Color Gamut | 72% NTSC | | Response Time | 5 ms | | Viewing Angle | Horizontal: 178°
Vertical: 178° | | Dot Pitch | 0.293 x 0.293 mm | | | | Power Consumption | 15.8 W (Typical)
0.3 W (Standby) | | AC Input Power | 100 to 240 VAC, 50 / 60 Hz | | Power Adapter Type | Internal | | | | Certifications | ENERGY STAR, EPEAT GOLD, as per Manufacturer | | | | Tilt Adjustment | -5 to 25° | | Mounting-Hole Pattern | 100 x 100 mm | | Dimensions (W x H x D) | 19.0 x 16.0 x 8.3" / 48.0 x 41.0 x 21.0 mm (With Stand)
16.0 x 13.3 x 2.1" / 40.6 x 33.7 x 5.2 mm (Without Stand) | | Weight | 5.9 lb / 2.7 kg (Without Stand)
6.8 lb / 3.1 kg (With Stand) | | | | Package Weight | 8.75 lb | | Box Dimensions (LxWxH) | 19.8 x 16.6 x 4.4" |
