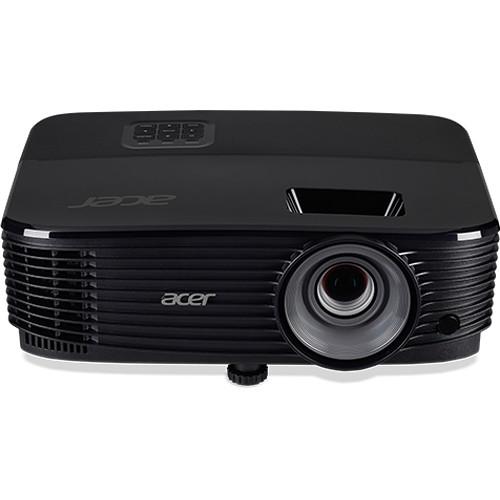

User Manual for Acer X1223H Essential Series XGA Projector Click to enlarge the picture
Contents of the user manual for the Acer X1223H Essential Series XGA Projector
- Product category: Multimedia Projectors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Multimedia Projectors
|
User manual for the Acer X1223H Essential Series XGA Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|
Product description The X1223H Essential Series XGA Projector from Acer features 3600 lumens of brightness with a native resolution of 1024 x 768. It offers an aspect ratio of 4:3, but can also support a 16:9 ratio. Combined with DLP 3D Ready, the projector allows you to enjoy a theater-like 3D entertainment experience.
The X1223H has nine key control panels and 40° keystone correction that automatically adjusts vertical distortions. With Acer Dust Shield, the projector can defend against the detrimental effects of dust, allowing it to work better for longer, and require less maintenance. Auto Ceiling Mount Correction automatically flips the projected image over if the projector is turned upside down, while Acer EcoProjection automatically reduces standby power consumption by as much as 80%. - LumiSense technology adjusts image visibility to optimum levels
- ColorBoost3D technology improves the optical color performance while reducing color shifts and brightness decay
- ColorSafe II technology prevents yellow hues
- Bluelight shield allows users to lower levels of blue light to lessen the negative effects of blue light exposure
In the Box Acer X1223H Essential Series XGA Projector AC Power Cord VGA Cable Security Card Remote Control and Battery Lens Cap Carrying Case Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Bulb Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer X1223H Essential Series XGA Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer X1223H Specs | | | Display System | DLP | | Native Chip Resolution | 1024 x 768 (XGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3600 Lumens | | Aspect Ratio | Native: 4:3
Supported: 16:9 | | Contrast Ratio | 20000:1 | | DLP Link 3D | Yes | | Color Wheel | 6-Segment | | Color Depth | 10-Bit (1.07 Billion Colors) | | | | Focus | Manual | | Lens | f/2.56 - 2.68 (f = 22 - 24.10 mm) | | Optical Zoom | Manual: 1.1x | | Throw Distance | 3.3 - 32.8' / 1.006 - 9.997 m | | Throw Ratio | 1.96 - 2.15:1 (50" @ 2 m) | | Projection Size | 27 - 300" / 68.58 - 762.00 cm | | | | Keystone Correction | Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 3W | | | | Inputs/Outputs | 1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input
1 x Composite (RCA) Video Input
1 x 1/8" / 3.5 mm Mini Audio Input
1 x VGA (DE-15/DB-15) Video Output
1 x 1/8" / 3.5 mm Mini Audio Output
1 x RS-232 (DE-9/DB-9) Control
1 x USB 2.0 (Mini-USB) Control | | Memory Card Slot | None | | | | Light Source | Lamp | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Medium Brightness: 30 dB
Low Brightness: 26 dB | | Power Consumption | Medium Brightness: 260 W
Low Brightness: 205 W
Standby Mode (Lamp Off): <0.5 W | | Dimensions (W x H x D) | 11.8 x 4.1 x 8.7" / 30.0 x 10.4 x 22.1 cm | | Weight | 5.29 lb / 2.40 kg |
