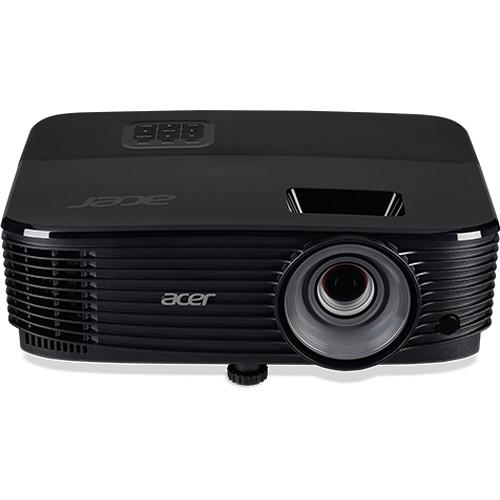

User Manual for Acer X1323WH Essential WXGA Projector Click to enlarge the picture
Contents of the user manual for the Acer X1323WH Essential WXGA Projector
- Product category: Multimedia Projectors Acer
- Brand: Acer
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acer Multimedia Projectors
|
User manual for the Acer X1323WH Essential WXGA Projector contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acer product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acer user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acer product will considerably shorten its lifespan!
|
Product description The X1323WH Essential WXGA Projector from Acer features 3700 lumens of brightness with a native resolution of 1280 x 800. It offers an aspect ratio of 16:10, but can also support 16:9 and 4:3 resolutions up to 1920 x 1200. Combined with DLP 3D Ready, the projector allows you to enjoy a theater-like 3D entertainment experience. The X1323WH includes Acer display features including Bluelight Shield, LumiSense, ColorBoost3D, and ColorSafe II. Auto Ceiling Mount Correction automatically flips the projected image over if the projector is turned upside down, while Acer EcoProjection automatically reduces standby power consumption by as much as 80%. UPC: 191114328316 In the Box Acer X1323WH Essential WXGA Projector AC Power Cord VGA Cable Security Card Remote Control and Battery Limited 1-Year Warranty on Projector Limited 90-Day Warranty on Bulb Table of Contents
|
Upload User Manual
Have you got an user manual for the Acer X1323WH Essential WXGA Projector in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcer X1323WH Specs | | | Display System | DLP | | Native Chip Resolution | 1280 x 800 (WXGA) | | Supported Resolutions | Maximum: WUXGA - 1920 x 1200 | | Max Brightness | 3700 Lumens | | Aspect Ratio | Native: 16:10
Supported: 16:9
Supported: 4:3 | | Dynamic Contrast Ratio | 20,000:1 | | DLP Link 3D | Yes | | | | Focus | Manual | | Lens | f/2.56 - 2.68 (f = 22 - 24.10 mm) | | Optical Zoom | Manual: 1.1x | | Throw Ratio | 1.55 - 1.7:1 (60" @ 2 m) | | | | Keystone Correction | Manual-Vertical: ± 40° | | Ceiling Mountable | Yes | | Built-In Speaker | Yes | | Speaker Power | 3W | | | | Inputs/Outputs | 1 x Mini-USB Control Input
1 x Composite (RCA) Video Input
1 x VGA (DE-15) Video Input
1 x VGA (DE-15) Video Output
1 x 1/8" (3.5 mm) Mini Audio Input
1 x 1/8" (3.5 mm) Mini Audio Output
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x RS-232 (DE-9) Control | | Memory Card Slot | None | | | | Light Source | Lamp | | Expected Lamp Life | Full Brightness: 5000 Hours
Medium Brightness: 10,000 Hours
Low Brightness: 15,000 Hours | | Fan Noise | Medium Brightness: 30 dB
Low Brightness: 26 dB | | Dimensions (W x H x D) | 11.8 x 8.7 x 4.1" / 30.0 x 22.1 x 10.4 cm with feet | | Weight | 5.29 lb / 2.40 kg |
