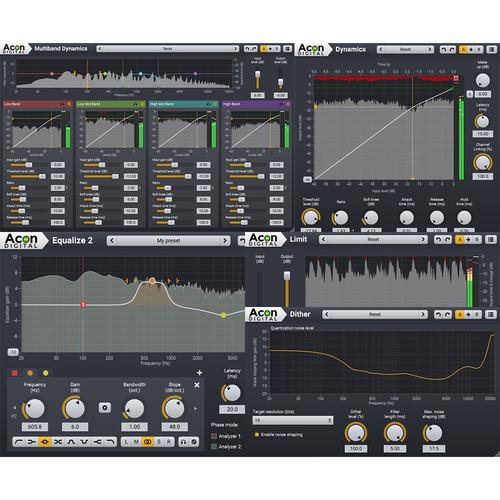

User Manual for Acon Digital Mastering Suite Plug-Ins Click to enlarge the picture
Contents of the user manual for the Acon Digital Mastering Suite Plug-Ins
- Product category: Virtual Processor Plug-Ins Acon Digital
- Brand: Acon Digital
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acon Digital Virtual Processor Plug-Ins
|
User manual for the Acon Digital Mastering Suite Plug-Ins contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acon Digital product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acon Digital user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acon Digital product will considerably shorten its lifespan!
|
Product description The electronic download of Digital Mastering Suite Plug-Ins from Acon consists of five plug-ins for audio mastering. They can be used by engineers, producers, or musicians for mixing and mastering applications on Mac or Window computers, with support for Native 32-bit or 64-bit versions, sampling rates up to 96 kHz, and multichannel audio up to 7.1 surround.The featured plug-ins include: Dynamics, a combined compressor, expander, or gate. The lookahead can be set anywhere from 0 to 30 milliseconds, and the intelligent algorithm provides a band-limited gain signal which reduces potential distortion to a minimum even with minimal attack and release times. You can oversample up to 4 times to further reduce distortion, and the sidechain signal can be either internal or external. There's a full-blown sidechain equalizer integrated with low-cut, low-shelf, peak, high-shelf, and high-cut filters. The complexity of algorithms is not reflected in the intuitive user interface, which provides graphical visualizations of all aspects of the processing.Multiband Dynamics is the multiband extension of Dynamics, which allows dynamic processing in up to four separate bands. You can freely set the crossover frequencies, and the filter slopes can be set freely in the range 6 and 48 dB per octave. Multiband Dynamics operates in linear phase mode to avoid phase issues between the processed bands.Limit is a transparent limiter with intelligent lookahead in the range 0 to 30 milliseconds that reduces distortion to a minimum. The limiting is performed in a two-step process. With the precompressor follower and by the actual peak limiting algorithm, you can use up to 4-times oversampling for true peak limiting and to further reduce distortion.Equalize is a parametric equalizer you can freely adjust not only center frequency, gain and bandwidths, but also the filter slope for each band. The filter slope can be set anywhere from 3 dB to ultra-sharp 120 dB per octave. You can operate Equalize as a zero latency plug-in. When using the minimum phase mode, you can choose to preserve the phase relationships in the linear phase mode, or alternatively, use the unique mixed phase mode. The mixed phase mode allows you to set the latency freely in the range of 5 to 120 milliseconds while preserving the phase relationships as far as possible. This gives unique control over potential pre-ringing artifacts, which is a common problem with linear phase filtering.Dither is a dithering plug-in with flexible perceptual noise shaping. You can adjust the maximum gain and the filter length of the frequency response of the noise shaping filter, which is visualized graphically.Finally, everything you need to tailor your sound with signal transparency is available in the Acon Digital Mastering Suite Plug-Ins. - Acon Digital Dynamics
-
- Intelligent lookahead algorithm that reduces distortion to a minimum
- Latency and lookahead can be set anywhere between 0 and 30 milliseconds
- Powerful sidechain filtering with full EQ section — low-cut, low-shelf, bell, high-shelf, and high-cut filters
- Oversampling up to 4X
- Threshold and ratio can be adjusted directly in the level history curve or using knobs
- Acts as a compressor for ratios over 1:1 and as an expander or gate for ratios below 1:1
- Adjustable soft knee specified in dB
- Adjustable attack, hold and release times specified in milliseconds
- Channel linking can be set between 0 (no link) and 100% (all channels share the same gain control signal)
- Adjustable make-up gain specified in dB with optional automatic mode
- Acon Digital Multiband Dynamics
-
- Dynamic processing in up to four separate frequency bands
- Spectral analyzer with frequency band indicators, freely adjustable crossover frequencies, and freely adjustable filter slopes
- Intelligent lookahead algorithm that reduces distortion to a minimum
- Threshold and ratio can be adjusted directly in the level history curve or by using the knobs
- Acts as a compressor for ratios over 1:1 and as an expander or a gate for ratios below 1:1
- Adjustable soft knee specified in dB
- Adjustable attack and release times specified in milliseconds
- Acon Digital Limit
-
- Intelligent lookahead algorithm that reduces distortion to a minimum
- Precompressor stage with adjustable attack and release times specified in milliseconds
- Channel linking can be set separately for precompressor and peak suppression with values between 0 (no link) and 100% (all channel share the same gain control signal)
- Oversampling up to 4X for true peak limiting
- Graphical history curve showing level and gain reduction for the past 5 seconds
- Acon Digital Equalize
-
- Up to twelve equalizer bands
- Eight different band-filter types (low-cut, low-shelf, peak, tilt, band-pass, notch, high-shelf, and high-cut)
- Band frequency, gain, bandwidth, resonance, and filter slope is freely adjustable for each band
- Three different filter modes, minimum phase, linear phase, or mixed phase
- Adjustable latency and pre-ringing time in mixed phase mode
- Zero latency in minimum phase mode
- Channel mode (mid, side, left, right or full processing) can be set independently for each band
- Multiple selection of bands
-
- Resizable graphical user interface
- Solo and bypass modes
- Optional automatic make-up gain
- Optional gain to bandwidth linking
- Two spectrum analyzers that can analyze the input or output signal from the mid, side, left, or right channel
- Graphical visualization of the equalizer frequency response
- Preset manager and many factory presets
- Save, load, and categorize user presets
- Acon Digital Dither
-
- Triangular Probability Density Function (TPDF) dithering
- Physcho-acoustic noise shaping filter with adjustable filter length and maximum filter gain
- Graphical representation of the noise shaping filter’s frequency response
- Supported target bit depths: 8, 12, 16, 20, and 24 bits
- Platforms and Plug-in Formats
-
- Available as VST, VST3 or AAX plug-ins on PC (Windows)
- Available as VST, VST3, AAX or AU plug-ins on Apple Macintosh (OS X)
- Native 32-bit or 64-bit versions of all plug-ins are available
- Supports sampling rates up to 96 kHz
- Supports multichannel audio up to 7.1 surround
Table of Contents
|
Upload User Manual
Have you got an user manual for the Acon Digital Mastering Suite Plug-Ins in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcon Digital Mastering Suite Specs | System Requirements | Windows
7, 8.x, 10
Intel Core i3 or AMD multicore processor (Intel Core i5 or faster recommended)
1 GB RAM (4 GB or more recommended)
1366 x 768 display resolution (1920 x 1080 or higher recommended)
1 GB free HD space
A host application that is compatible with AU, VST, VST3, or AAX (Pro Tools 11 or later)
Mac
OS X 10.8 or later
1 GB RAM (4 GB or more recommended)
1 GB free HD space
A host application that is compatible with AU, VST, VST3 or AAX (Pro Tools 11 or later) |
