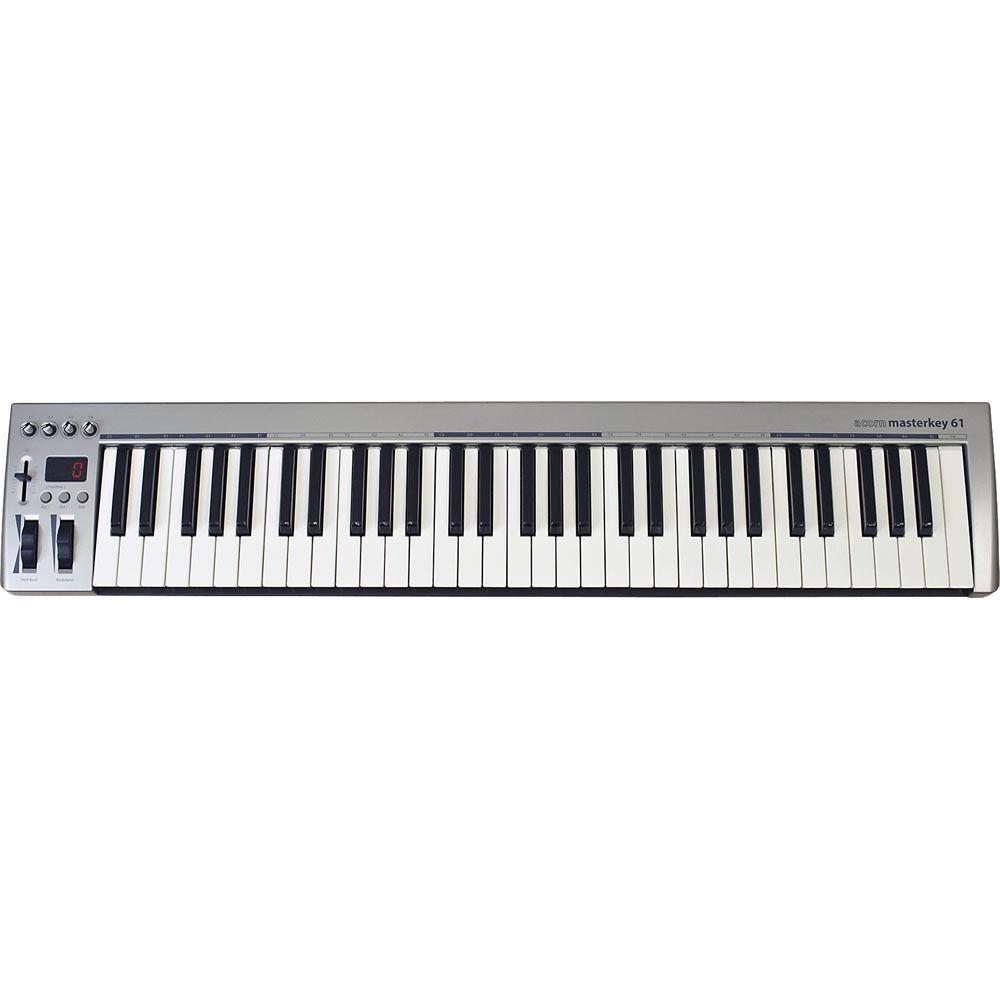

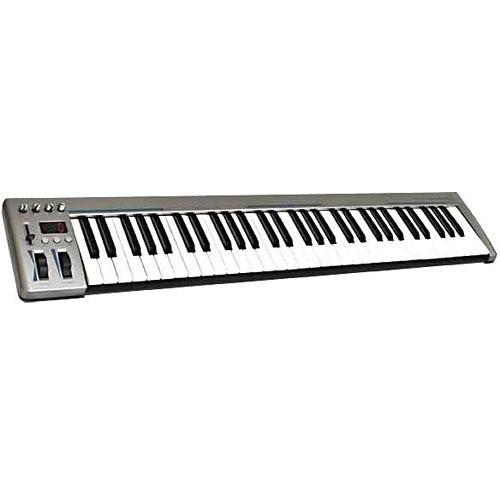

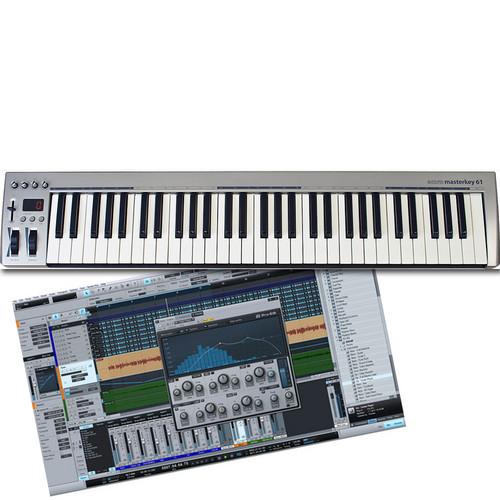

Product description The Masterkey 61 from Acorn is a 61-key, velocity sensitive USB MIDI controller with a compact design that fits perfectly on a computer desk while providing all the control needed for unfettered creativity. The keys have a dynamic and fast response ideal for programming bass lines, drums, or synthesizer lines. The keyboard ships with a copy of PreSonus Studio One Artist software, but is compatible with any standard MIDI software program.
Four assignable knobs and an assignable single fader provide real-time control of instrument or mix parameters, even while playing. Rubberized pitch bend and modulation wheels allow for further articulation. The three-digit LED display provides navigational feedback making it quick and easy to find the right menus for changing MIDI channels, sending out program changes, transposing or programming the real-time controls. Octave buttons instantly shift the keyboard range up and down.
The Masterkey 61 is USB class-compliant, which means that no drivers are needed for supported operating systems. Simply plug the keyboard into a USB port on the computer and the operating system does the rest. The included Studio One Artist software is a powerful recording and production platform that allows for working quickly and staying focused. It offers unlimited tracks and plug-ins, employs extensive use of drag-and-drop, and is easy to learn. - Masterkey 61
-
- 61-key, velocity sensitive synthesizer-style keyboard
- Pitch bend and modulation wheels (assignable)
- Single assignable fader
- Four assignable MIDI knobs for real time control
- Octave shift buttons extend the range of the keyboard 4 octaves up and 3 octaves down
- Three-character red LED segment display
- Sustain foot switch input jack, auto-sensing (foot switch not included)
- Quick-toggle between real-time functions Octave, Transpose, Program Change and MIDI Channel
- Advanced MIDI functions
- USB class-compliant - no driver needed

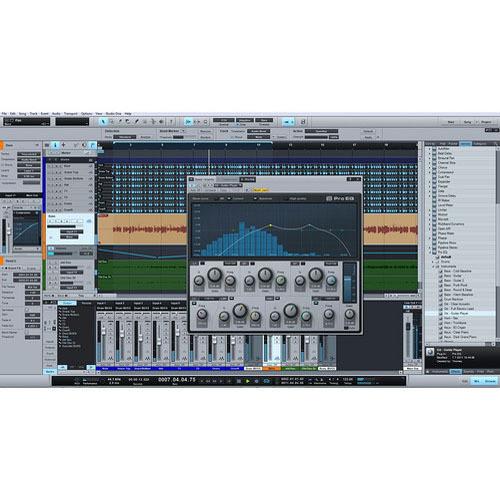

- PreSonus Studio One Artist
-
- Recording and production software
- Unlimited audio tracks, MIDI tracks, virtual instruments, buses, and FX channels
- Elegant single-window work environment
- Powerful drag-and-drop functionality
- Content browser with convenient sort options and preview player
- Intuitive MIDI-mapping system
- Real-time audio time-stretching and re-sampling
- Automatic delay compensation
- Advanced automation
- Instantly configures to PreSonus audio interfaces
- Compatible with ASIO, Windows Audio, and Core Audio compliant audio interfaces
- Twenty-five 32-bit "Native Effects" and virtual instrument plug-ins
- Over 4GB of third-party software, loops and instruments
UPC: 859383002145 In the Box Acorn Masterkey 61 - USB MIDI Controller USB Cable (6ft) Software DVD-ROM Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acorn Masterkey 61 - USB MIDI Controller in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcorn MASTERKEY 61 Specs | | | Keyboard | 61 Keys, Synth Action | | MIDI Control Surfaces | 1 x Wheel (Pitch-Bend)
1 x Wheel (Modulation)
4 x Rotary Encoders
1 x Slider | | | | I/O | 1 x USB Type-B | | OS Compatibility | macOS 10
Windows XP
Windows Vista
Windows 7 | | | | Power Options | USB Bus-Power | | | | Dimensions (W x D x H) | 35.4 x 7.5 x 3.0" / 900.0 x 191.0 x 76.0 mm | | Weight | 7.5 lb / 3.4 kg | | | | Package Weight | 7.2 lb | | Box Dimensions (LxWxH) | 39.5 x 9.0 x 4.0" |
