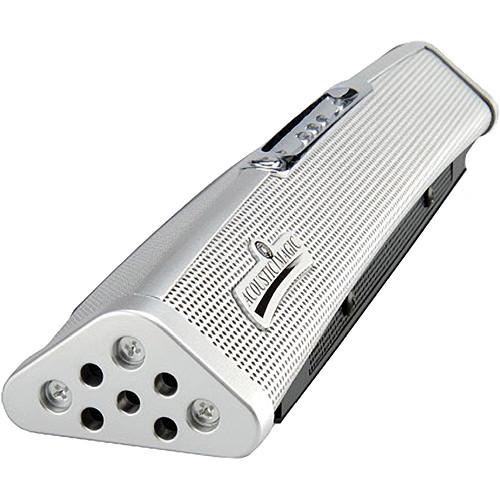

User Manual for Acoustic Magic Voice Tracker II Array Microphone Click to enlarge the picture
Contents of the user manual for the Acoustic Magic Voice Tracker II Array
- Product category: Mounts, Clamps & Brackets Acoustic Magic
- Brand: Acoustic Magic
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acoustic Magic Mounts, Clamps & Brackets
User manual for the Acoustic Magic Voice Tracker II Array contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acoustic Magic product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acoustic Magic user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acoustic Magic product will considerably shorten its lifespan!
Product description Featuring a frequency range of 100 Hz to 11.3 kHz, the Voice Tracker II Array from Acoustic Magic is a mountable microphone designed not only for recording lectures (including any question-and-answer portions thereof), but for facilitating large-scale conference calls as well. It compounds upon the technology of its predecessor by implementing six separate microphones for its automatic vocal tracking technology. The device also offers an on-board acoustic echo cancellation algorithm for eliminating the faraway vocal redundancies often occurring in large conference calls. It's enabled for VoIP-based conferencing, and connects via USB to computers or wall-jacks (available separately).
- Position Lights
- A five-element green position light lets your know where the "listening beam" is pointing in real-time, allowing you to make sure you're getting signal from the right portions of the room.
- Noise Reduction & Echo Cancellation
- Noise reduction technology and automatic echo cancellation helps bring the voices of main speakers to the forefront without redundancies. The unit is particularly adept at mitigating stationary noise, such as that coming from fans.
UPC: 794504147339 In the Box Acoustic Magic Voice Tracker II Array Microphone Limited 1-Year Warranty Table of Contents
- DB9 Connection
- The location of the speaker in relation to the Voice Tracker II can be pinpointed and represented digitally when plugging into its onboard DB9 jack. If echo cancellation is not required, you only need plug the unit into your computer via USB.
Upload User Manual
Have you got an user manual for the Acoustic Magic Voice Tracker II Array Microphone in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Acoustic Magic 201 Specs
| Range || 20+ feet (6m) for meeting recording (depends on acoustic characteristics of the room). |
| Noise Isolation || AEC Performance: |
70dB of echo cancellation in single talk
40dB of echo cancellation in double talk
Convergence time of less than 100ms
Sample rate: 48kHz
| Audio Output || USB |
Mic level or Line level (switch controlled) 3.5mm ministereo jack
6ft male/male audio cable (optional) Same signal on tip & ring 500 ohm output impedance
| Beam Angle || Talker location signal accuracy: 5 degrees |
| Frequency Response || 100Hz to 11,250Hz |
| Power || Powered by USB (wall-powered converter optional) |
5V DC 400 mA
| Dimensions (LxH) || 11.5 x 1.5" (29.21 x 3.81cm) |
| Weight || 0.75 lbs (0.34kg) |
| Package Weight || 1.575 lb |
| Box Dimensions (LxWxH) || 13.35 x 5.05 x 4.2" |
