User Manual for Acratech GP-s Ballhead with Lever Clamp Click to enlarge the picture
Contents of the user manual for the Acratech GP-s Ballhead with Lever Clamp
- Product category: Tripod Heads Acratech
- Brand: Acratech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acratech Tripod Heads
 |
User manual for the Acratech GP-s Ballhead with Lever Clamp contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acratech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acratech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acratech product will considerably shorten its lifespan!
|
Product description - Product Demo 1
- Product Demo 2
- Product Demo 3
- Acratech Ball-Head Performance

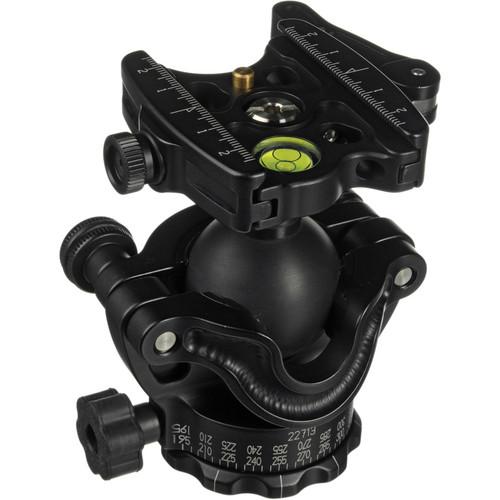

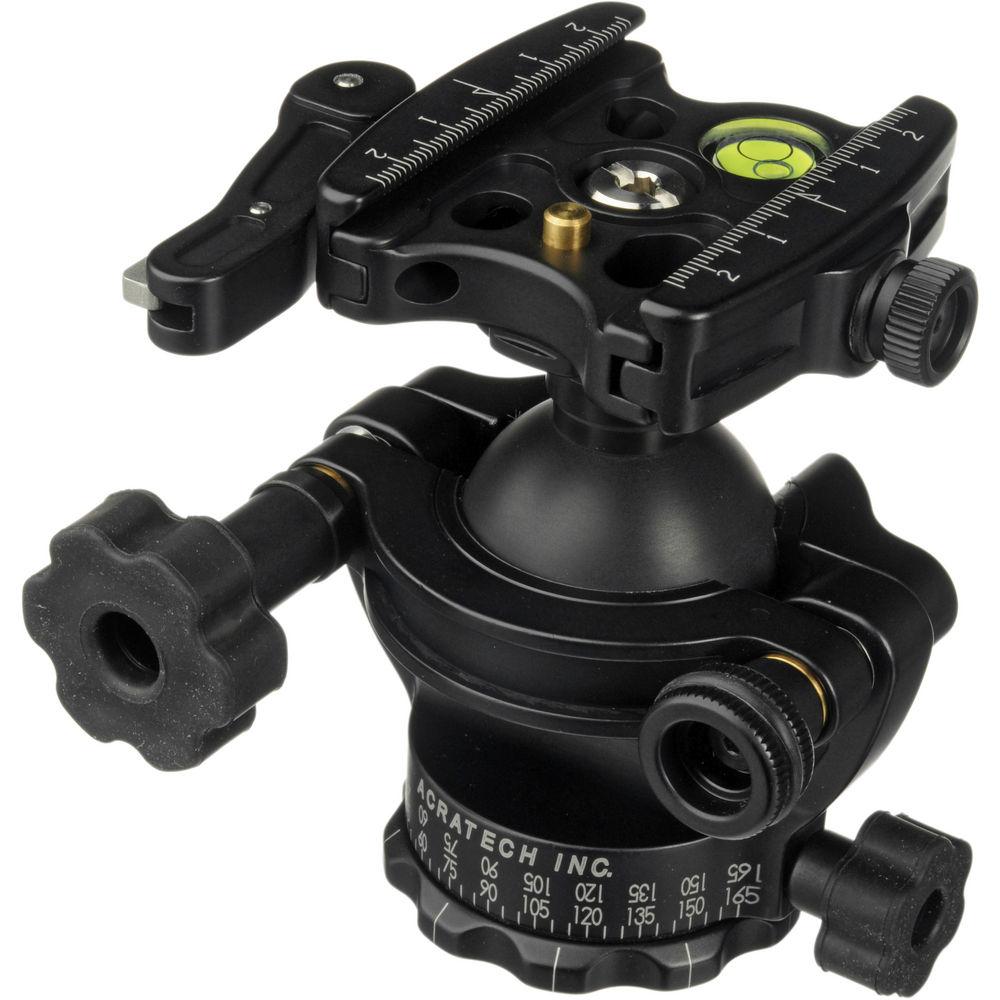

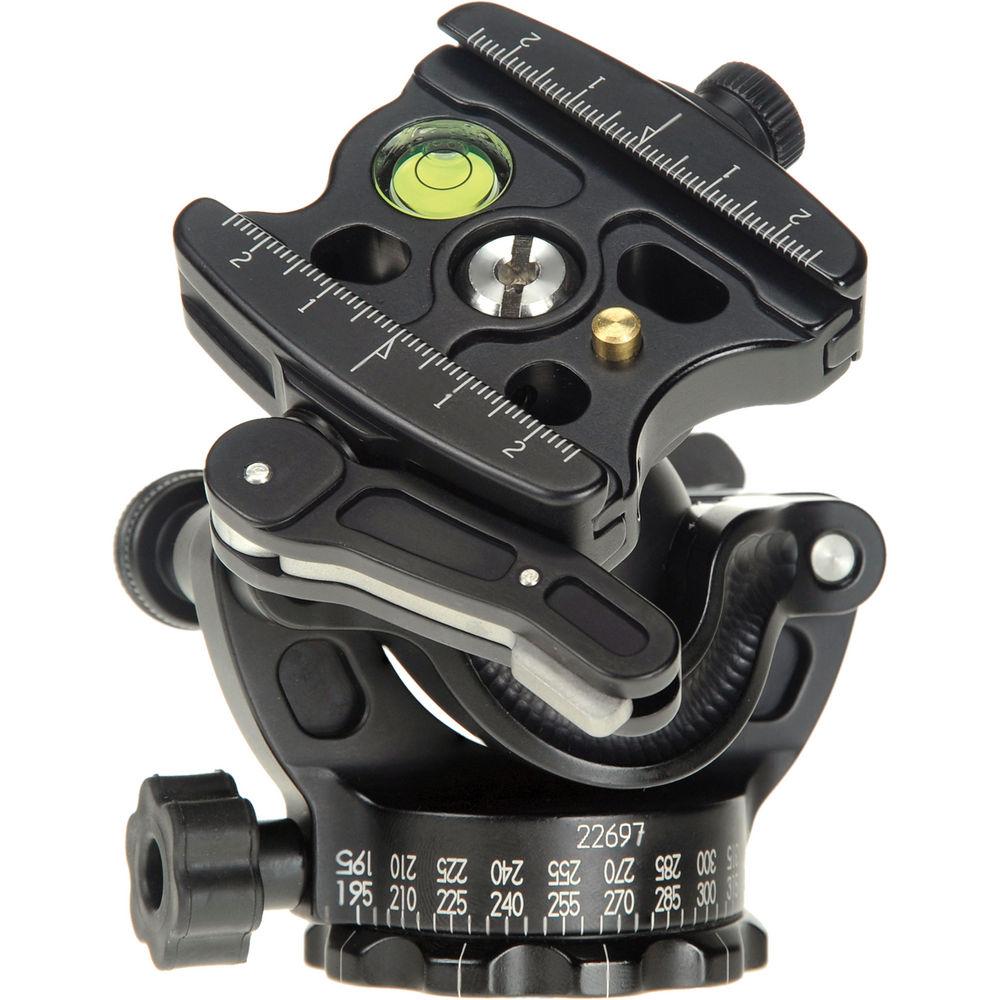

The Acratech GP-s Ballhead with Lever Clamp is an updated version of the existing GP-s head. Rather than a rubber knob, this model features a locking lever for securing the Arca Swiss-style clamp that constitutes the quick-release element. Featuring first-class construction, the GP-s Ballhead also functions as a gimbal head for lenses up to 400mm f/4.0, and it can be positioned upside-down to function as a leveling base for panoramic photography. Even if you're operating on rocky or otherwise uneven terrain, you can pan absolutely parallel to the horizon, so you won't need to carry a separate leveling base to create accurate stitched panoramic imagery. With all that functionality, the GP-s Ball head is designed with a small base diameter of 2.08" to allow it to be used with travel-type tripods whose legs fold up 180°, reaching to the top of the tripod head. The smaller base diameter allows the tripod legs to fold more compactly.The ballhead also features a bull's-eye level on the quick-release clamp and a detent pin, which prevents the plate and anything attached to it from sliding out of the quick-release clamp when it's partially loosened. Lightweight at only 0.9 lb, the GP-s Ballhead supports loads over 25 lb from any position, including tilted 90° and mounted upside-down. - Fits all standard tripods (1/4"-20 and 3/8"-16 threads)
- Easily holds over 25 lb (11.4 kg) at any angle
- Works as a gimbal head with lenses up to 400mm f/4.0
- Weighs 0.9 lb with quick-release clamp
- Reduced base diameter of 2.4"
- Dual laser-engraved calibrated panning scales
- Full movements in any camera position
- Precision machined aluminum
- Compatible with Kirk, Arca Swiss, Acratech, R.R.S., and many other quick-release plates
- Beautiful satin black-anodized finish
- Long-lasting stainless-steel hardware
- All knobs are secured so they cannot vibrate loose and fall off
- Built-in safety detent pin
- Oilless and greaseless ball will not attract or hold dirt and debris
In the Box Acratech GP-s Ballhead with Lever Clamp Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acratech GP-s Ballhead with Lever Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcratech GPs Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Quick Release Plate Type | Arca-Type | | Load Capacity | 25 lb / 11.3 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Ball Sphere Diameter | 1.5" / 38 mm | | Base Diameter | 2.08" / 53 mm | | Dimensions | H: 3.9 x W: 3.1" / H: 98.0 x W: 80.0 mm | | Weight | 0.9 lb / 400.0 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.2 x 4.8 x 4.4" |
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 70 owners. Add your rating and experience with the product.
