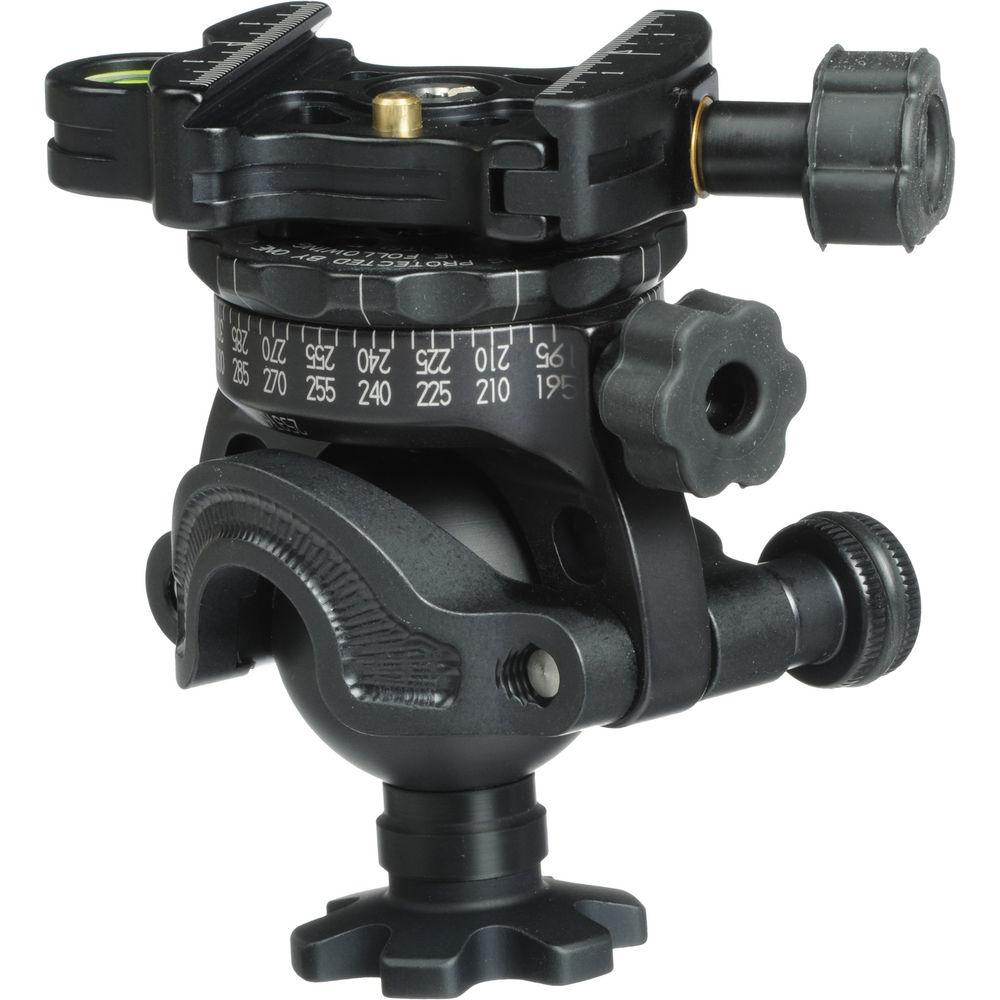

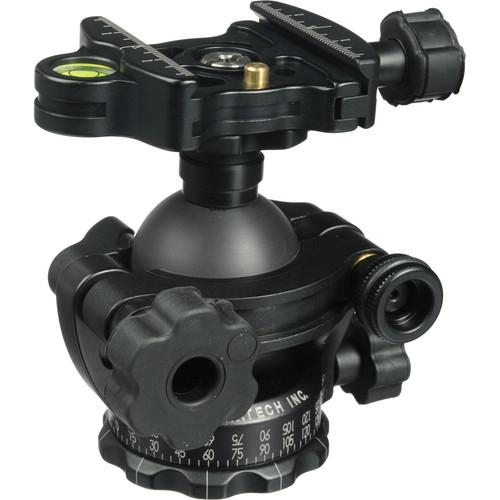

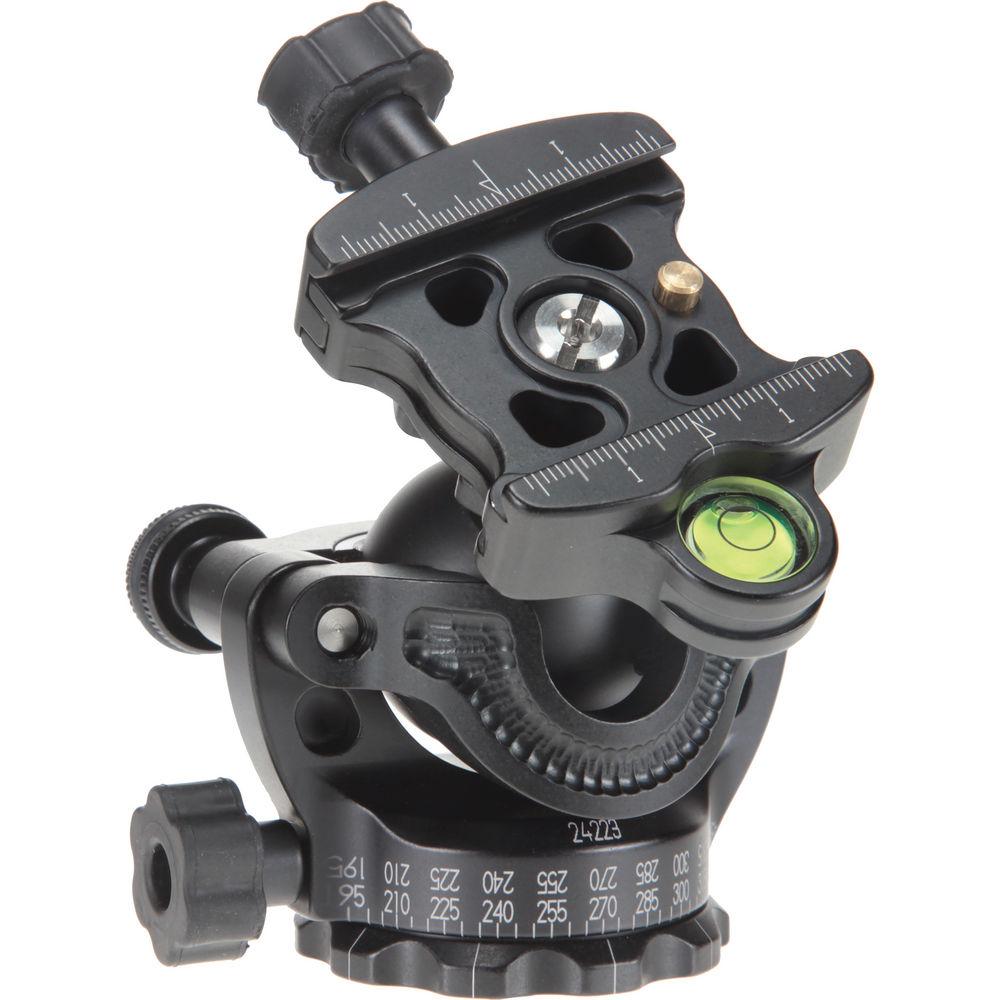

User Manual for Acratech GP-ss Ballhead Click to enlarge the picture
Contents of the user manual for the Acratech GP-ss Ballhead
- Product category: Tripod Heads Acratech
- Brand: Acratech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acratech Tripod Heads
 |
User manual for the Acratech GP-ss Ballhead contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acratech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acratech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acratech product will considerably shorten its lifespan!
|
Product description - Product Demo 1
- Product Demo 2
- Product Demo 3
- Acratech Ball-Head Performance
The Acratech GP-ss Ballhead has the ability to function as a gimbal head and as a panoramic head, providing you with incredible positioning flexibility and stability for your equipment. Gimbal heads are desirable when shooting with telephoto lenses, especially when following moving objects. The GP-ss Ballhead is designed with a small diameter base diameter of 2.08" to allow it to be used with travel-type tripods where the legs fold around the tripod head. The smaller base diameter allows the tripod legs to fold more compactly. Even when using your tripod on rocky, uneven terrain the GP-ss Ballhead allows you to pan parallel to the horizon, eliminating the need to carry a separate leveling base to create accurate panoramic images. - Fits all standard tripods (1/4"-20 and 3/8"-16 threads).
- Easily holds 25 lb (11.3 kg) at any angle.
- Works as a gimbal head with lenses up to 400 f/4.0
- Reduced base diameter of 2.08" (53mm).
- Dual laser engraved calibrated panning scales.
- Full movements allow any camera position.
- Precision C.N.C. machined.
- Compatible with Kirk, Arca, R.R.S., and many other quick release plates.
- Beautiful satin black anodized finish.
- Long lasting stainless steel hardware.
- All knobs are secured so they cannot vibrate loose and fall off.
- Oilless and greaseless ball will not attract or hold dirt and debris.
In the Box Acratech GP-ss Ballhead 1/4"-20 Reducer Bushing Bull's Eye Level Quick Release Clamp Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acratech GP-ss Ballhead in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcratech GPss Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Quick Release Plate Type | Arca-Type | | Load Capacity | 25 lb / 11.3 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Panning Range | 360
Rating96% users recommend this product to others. And what about you?
This product has already been rated by 31 owners. Add your rating and experience with the product.
