Product description - Product Demo 1
- Product Demo 2
- Product Demo 3

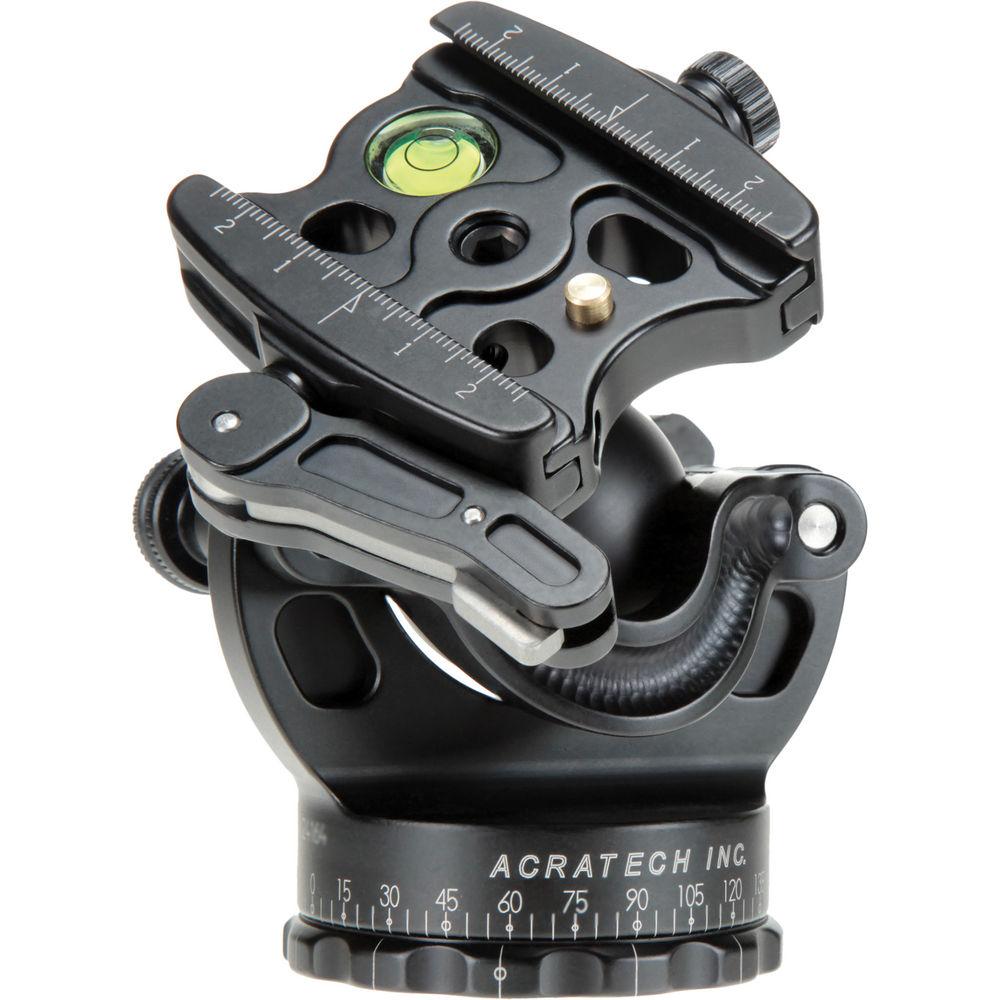

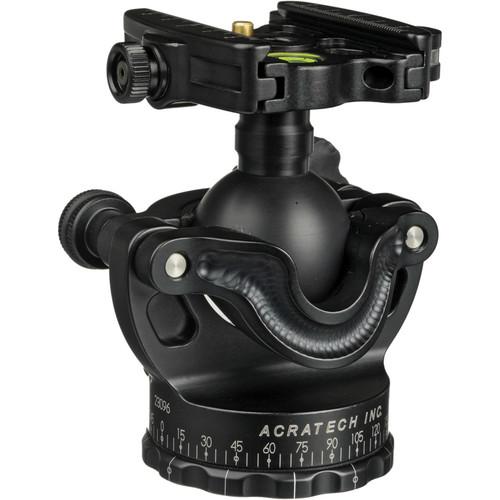

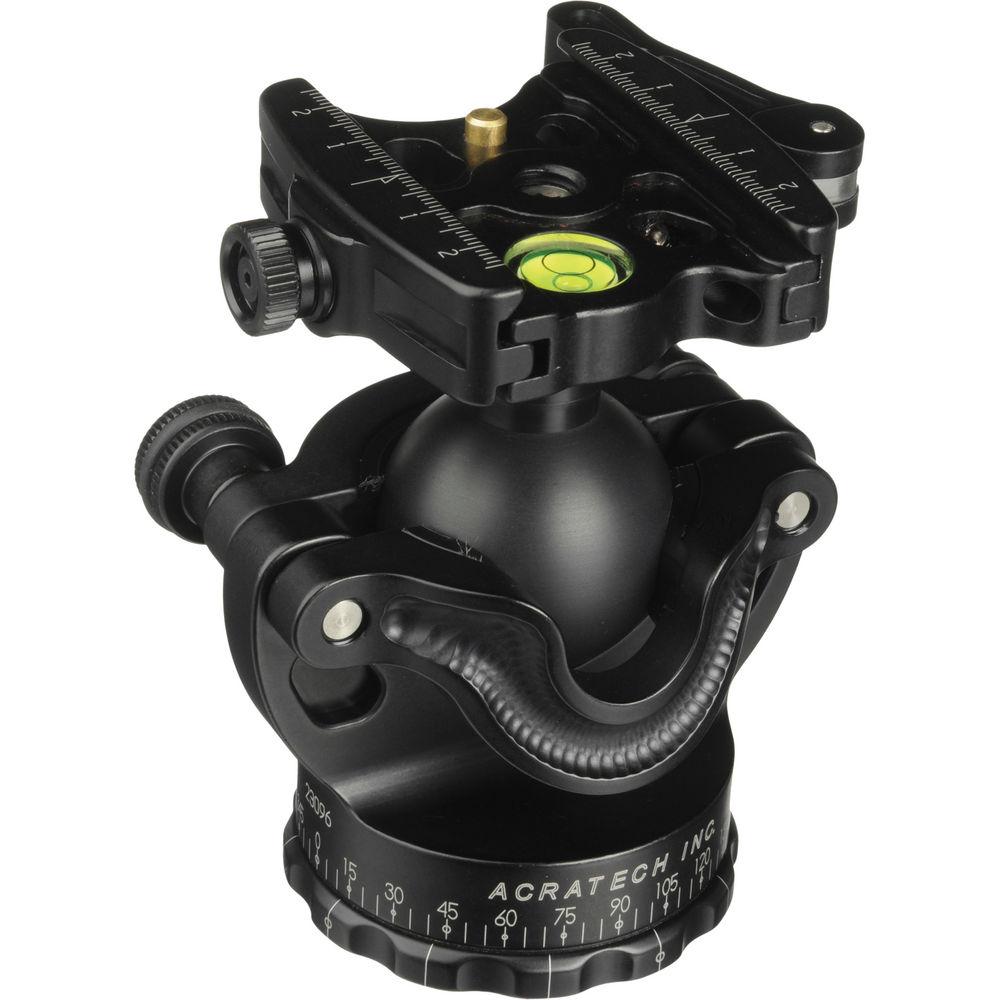

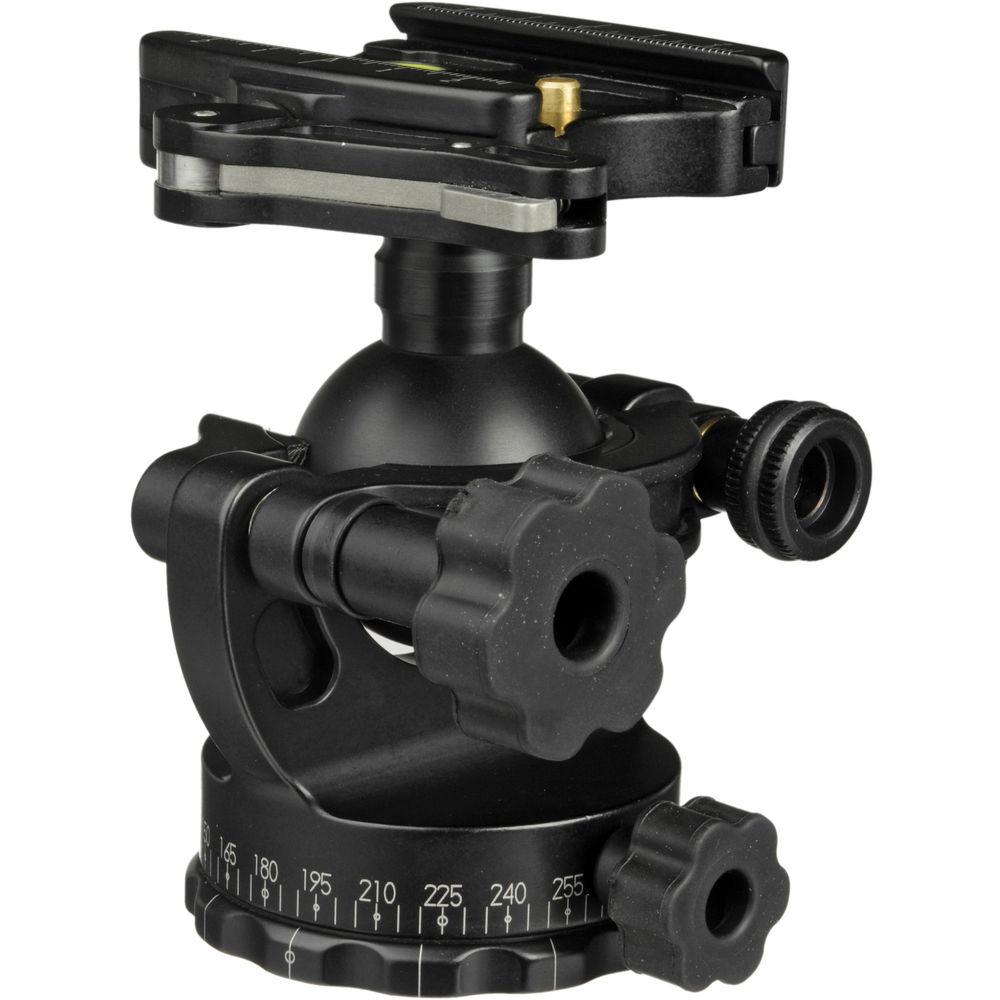

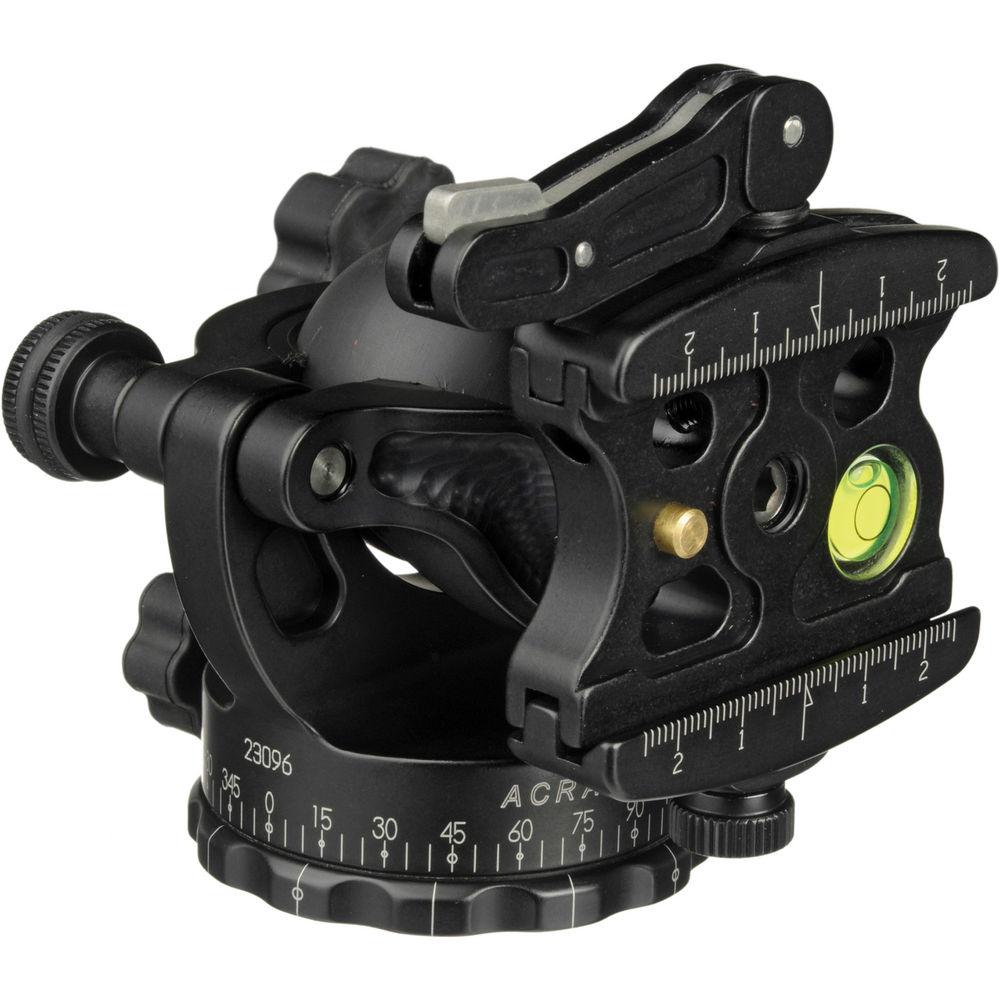

The Acratech GV2 Ball Head / Gimbal Head with Lever Clamp is an updated version of the existing GV2 head. Rather than a rubber knob, this model features a locking lever for securing the Arca Swiss-style clamp that constitutes the quick-release element. The GV2 is a sturdy, heavy-duty, yet compact ball head that is similar in design to most conventional ball heads (unlike Acratech's unique Ultimate head). However, the GV2 model can be locked down when the head is in the 90° orientation (in the "gimbal slot"), which effectively turns this ball head into a gimbal-style head. This allows the camera to pivot around its center point. A bushing on the ball's stem and a pin on the bottom of the ball enable this smooth rotation – free, gimbal-style movement.The built-in industry-standard Arca-Swiss-style quick-release clamp makes it compatible with the many different plates available from Arca-Swiss, Kirk, Wimberley, Really Right Stuff, Foba, Novoflex, etc. The clamp also features a spring-loaded detent pin that projects into the pockets or windows that are cut into the bottom of most manufacturers' (Acratech, Kirk, Really Right Stuff, etc.) quick-release plates. This detent pin will prevent the plate from accidentally sliding out in the event that the knob is partially loosened. In addition, this model uses a "leveling" q.r. clamp, which features a large 15mm bullseye bubble level that extends out of the side of the clamp.The GV2 features a low-profile design, and sports all-rubber knurled knobs that are comfortable to use, even in extreme weather. - Lever-operated quick-release clamp with 15mm bullseye level, with detent pin to keep the plate from sliding out by mistake
- Works well with lenses up to 400mm f/4.0 and any tripod with a 1/4"-20 or 3/8"-16 threaded screw
- Full movements allow any camera position
- Engraved panning degree markings
- Satin-black anodized finish
- Fully adjustable tension-control knob
- Oilless and greaseless ball will not attract or hold dirt and debris
- Ball will not shift when tightened
- All knobs are secured so they cannot vibrate loose and fall off
- 10-year manufacturer's warranty
In the Box Acratech GV2 Ball Head / Gimbal Head with Lever Clamp 3/8"-16 to 1/4"-20 Reducer Bushing Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acratech GV2 Ball Head Gimbal Head with Lever Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcratech GV2 Specs | | | Head Type | Ball Head | | Base Mount | 1/4"-20 & 3/8"-16 Threads | | Quick Release Plate Type | Arca-Type | | Load Capacity | 25 lb / 11.3 kg | | Number of Bubble Levels | 1 | | Friction Control | Yes | | Independent Pan Lock | Yes | | | | Dimensions | H: 4.2" / H: 10.8 cm | | Weight | 1.1 lb / 482.0 g | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 7.2 x 4.8 x 4.3" |
