User Manual for Acratech Panoramic Head Click to enlarge the picture
Contents of the user manual for the Acratech Panoramic Head
- Product category: Panoramic & Time Lapse Heads Acratech
- Brand: Acratech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acratech Panoramic & Time Lapse Heads
 |
User manual for the Acratech Panoramic Head contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acratech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acratech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acratech product will considerably shorten its lifespan!
|

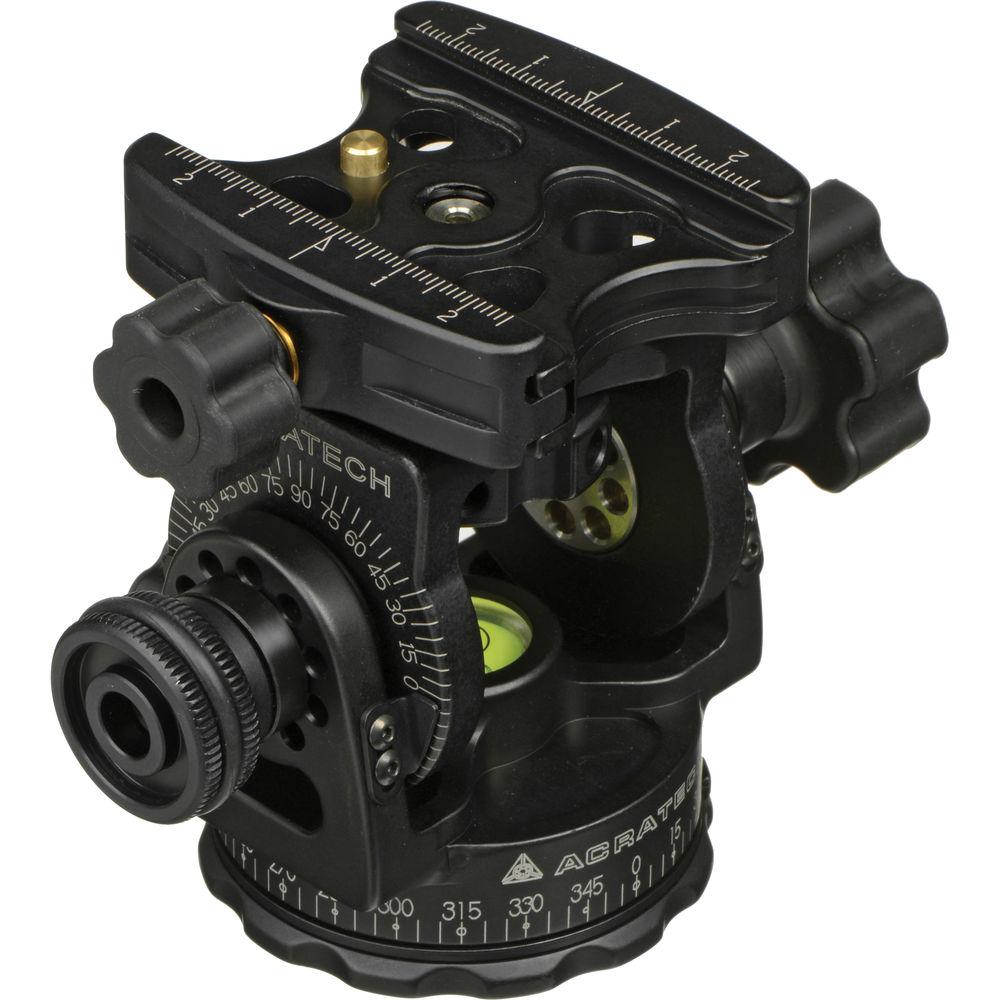

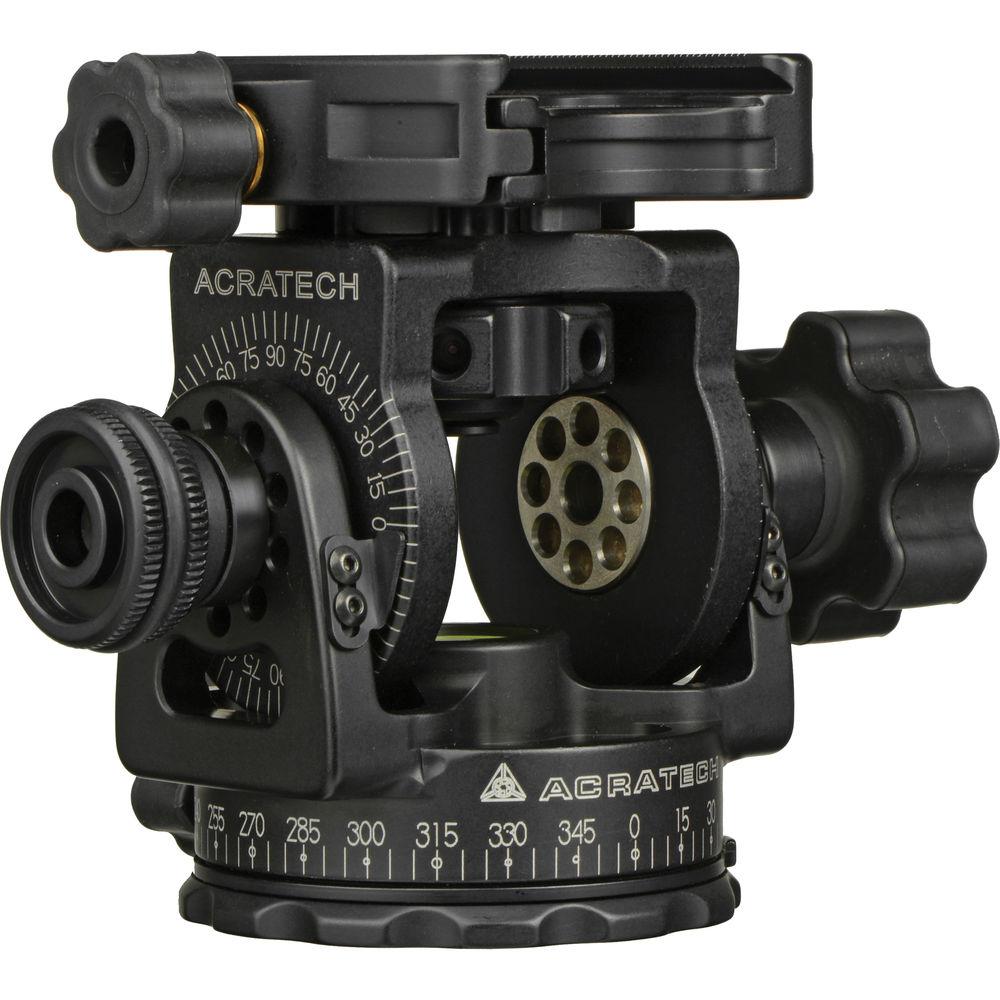

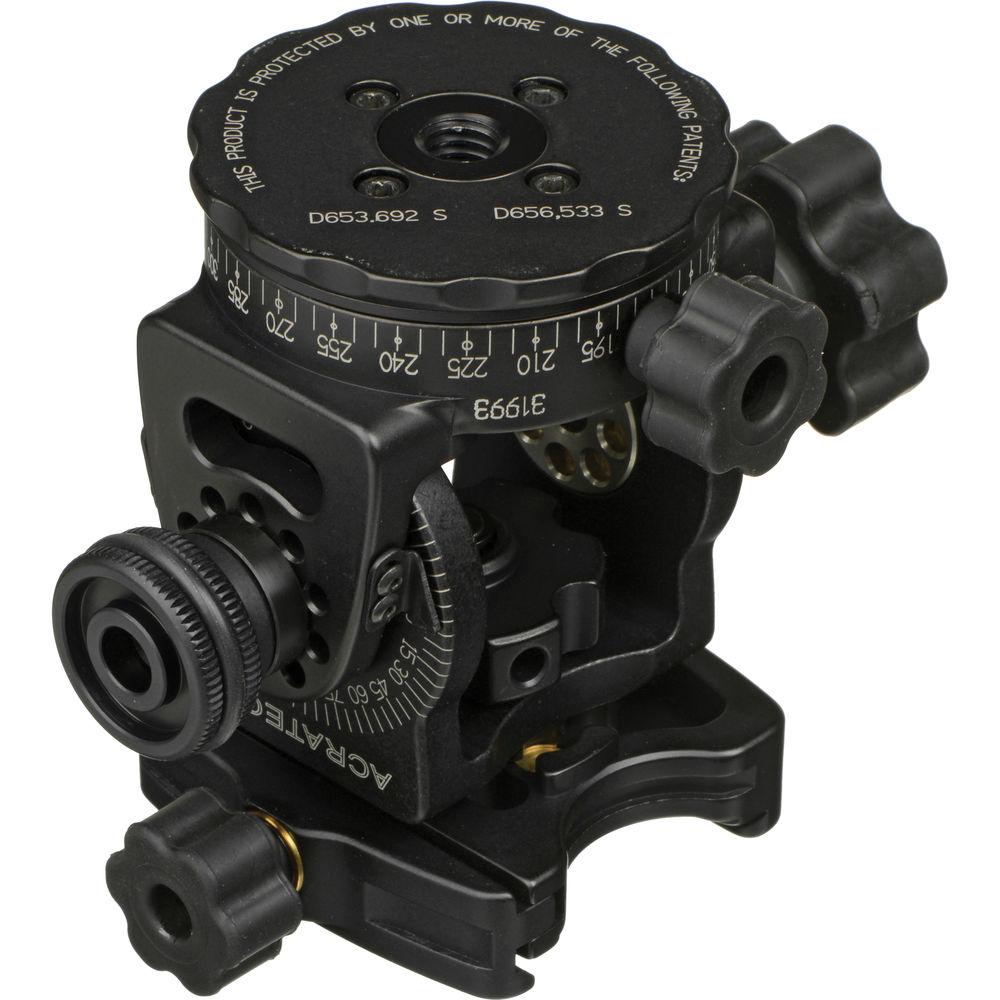

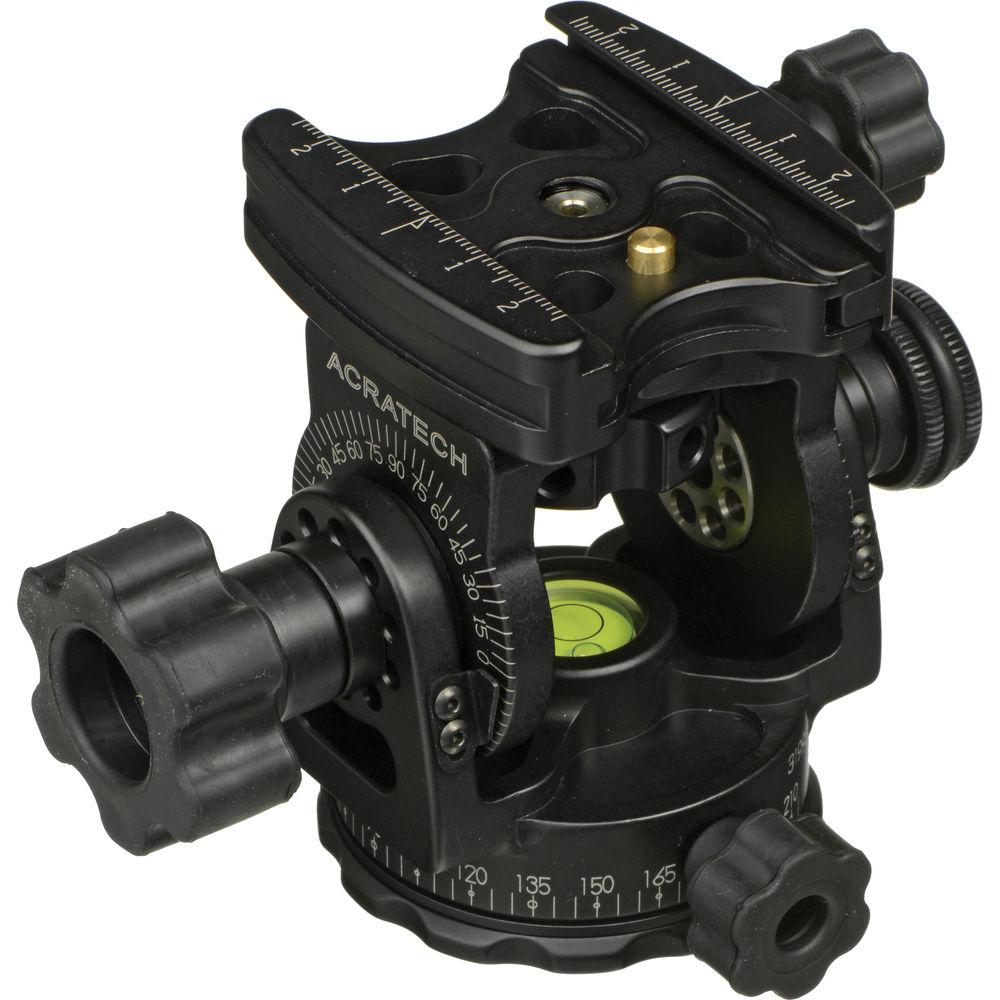

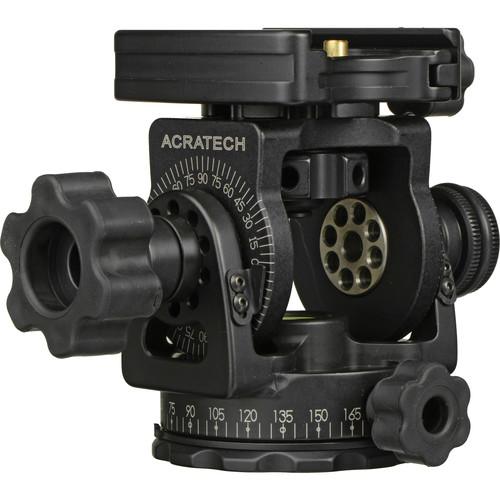

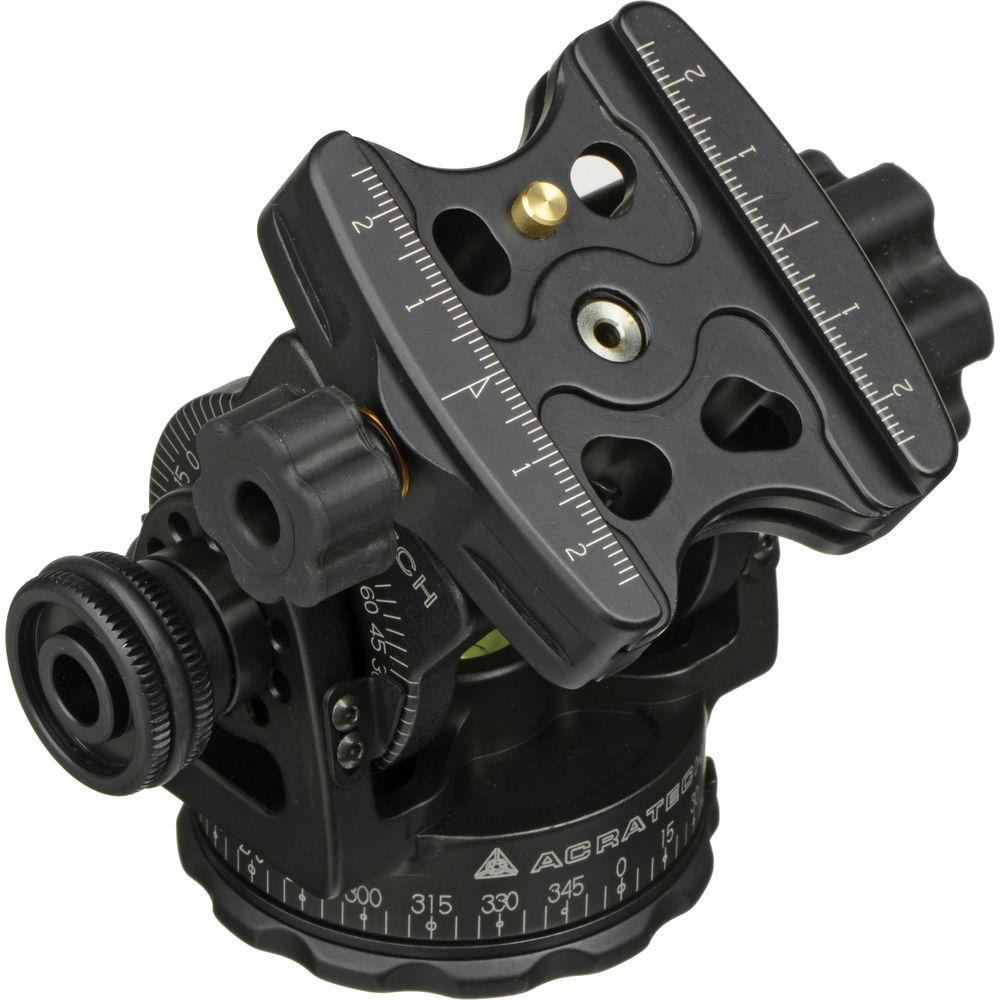

Product description Time-Lapse Tips and Tools Read More The Acratech Panoramic Head is designed to facilitate precise panoramic photography with DSLR cameras and lenses as long as 600mm f/4.0. With laser-etched degree markers in both the pan and tilt dimensions, the Panoramic Head is suitable for multi-row stitched imagery, facilitating the broadest views possible. The head has separate controls for pan and tilt, of course, and there's also fully adjustable tension control.Sturdy construction is a hallmark of the Panoramic Head – it's based on Acratech's Long Lens Head so heavy lenses will be well served. The head is composed of CNC-machined aluminum, which is anodized for a black-satin finish. Hardware is made of long-lasting stainless steel, and all knobs are secured so that they can't vibrate loose and fall off.Use your existing Arca-style camera plate – the quick-release clamp is compatible with plates from several manufacturers (plate sold separately). The clamp not removable but is indexable, and it locks in at 90° increments. - Weighs less than 1 lb with quick-release clamp
- Precision laser-etched degree markings on both the pan and the tilt axes
- Provides easy, smooth balance for long lenses
- Compatible with Kirk, Really Right Stuff, and many other Arca-Swiss-style quick-release plates (sold separately)
- Beautiful black-satin anodized finish
- Fits all standard tripods
- Long-lasting stainless steel hardware
- All knobs are secured so they cannot vibrate loose and fall off
- Indexable quick-release clamp locks in at 90° increments
- Solid, precision operation feel
In the Box Acratech Panoramic Head Bushing: 1/4"-20 Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acratech Panoramic Head in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcratech 1165 Specs | Load Capacity | 25 lb (11.3 kg) | | Spirit Level | Not specified by manufacturer | | Pan Range | 360° | | Tilt Range | Not specified by manufacturer | | Tension Control | Yes | | Tripod Mount Thread Size | 3/8"-16 with included 1/4"-20 bushing | | Dimensions | Working height: 3.60" (91.5 mm)
Base diameter: 2.37" (60.2 mm)
Knob to knob: 4.57" (116.2 mm) | | Weight | 0.94 lb (0.42 kg) | | | | Package Weight | 1.3 lb | | Box Dimensions (LxWxH) | 6.7 x 5.3 x 4.3" |
Rating86% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
