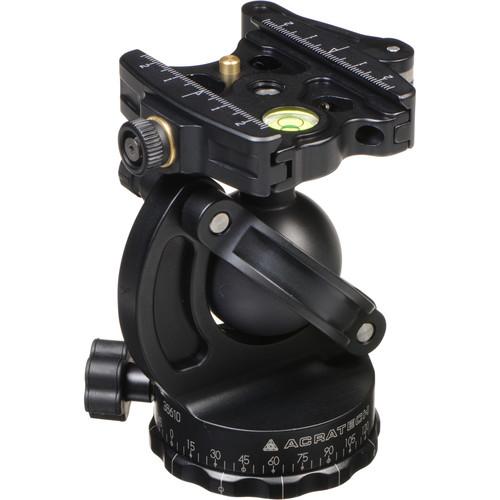

User Manual for Acratech Ultimate Ball Head With QR Locking Lever Clamp Click to enlarge the picture
Contents of the user manual for the Acratech Ultimate Ball Head With QR
- Product category: Tripod Heads Acratech
- Brand: Acratech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acratech Tripod Heads
 |
User manual for the Acratech Ultimate Ball Head With QR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acratech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acratech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acratech product will considerably shorten its lifespan!
|
Product description - Product Demo 1
- Product Demo 2
- Product Demo 3
- Acratech Ball-Head Performance
The Acratech Ultimate Ball Head With QR Locking Lever Clamp is the result of innovative design, created for combining low mass with incredible stopping power. With the included Quick Release Locking Lever Clamp, it's an ideal head for those who don't require the progressive tension control of the heavier (and more expensive) Arca-Swiss B1. The satin black anodized finish and engraved degree markings contribute to the solid precision look and feel of this impressive camera support. The ball operates without oil or grease, so it will not attract or hold dirt and debris. The knobs are all secured so that they can't vibrate loose and fall off. The innovative design of the Acratech gives the photographer full access to 25% of a sphere at any time, and it is entirely capable of providing support in any direction so long as the tripod legs are not overwhelmed. This version of the V2 includes a built-in spirit level aiding in tripod and camera alignment. Note: Quick release plate not included. - Arca-type quick release system
- Absolutely no migration after tightening the clamp
- Silky-smooth black anodized finish for precise positioning
- Open design facilitates quick maintenance
- "Dry" ball does not attract dirt or dust
- Fully captive controls will not come off from prolonged vibrations
In the Box Acratech Ultimate Ball Head With QR Locking Lever Clamp 3/8"-16 to 1/4"-20 Reducer Bushing Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acratech Ultimate Ball Head With QR Locking Lever Clamp in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcratech 1129 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Quick Release Plate Type | Arca-Type | | Load Capacity | 25 lb / 11.3 kg | | Number of Bubble Levels | 1 | | Friction Control | No | | | | Dimensions | H: 4.1" / H: 10.4 cm | | Weight | 1.0 lb / 453.0 g | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 7.2 x 4.9 x 4.4" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 14 owners. Add your rating and experience with the product.
