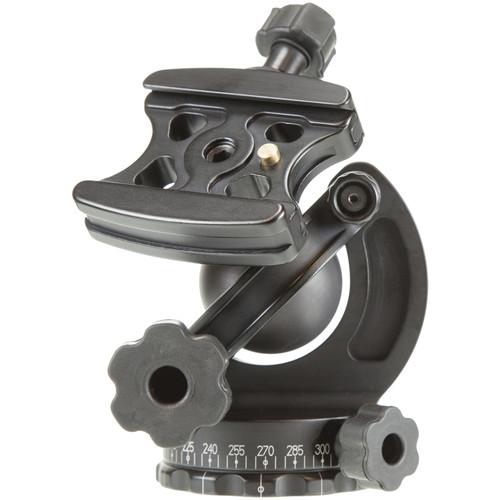

User Manual for Acratech Ultimate Ballhead w Quick Release w Detent Pin & Left Rubber Knobs Click to enlarge the picture
Contents of the user manual for the Acratech Ultimate Ballhead w Quick Release
- Product category: Tripod Heads Acratech
- Brand: Acratech
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Acratech Tripod Heads
|
User manual for the Acratech Ultimate Ballhead w Quick Release contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Acratech product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Acratech user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Acratech product will considerably shorten its lifespan!
|
Product description - Product Demo
- Acratech Ball-Head Performance
The Acratech Ultimate Ballhead is the most efficient design ever created for combining low mass with incredible stopping power. Available with or without an installed Arca-type quick release clamp, it is an ideal head for those that do not require the progressive tension control of the heavier (and more expensive) Arca-Swiss B1. It can be combined with a Wimberley Sidekick to give exceptional gimbal-type control of all but the largest of 35mm & medium format supertelephoto lenses. The innovative design of the Acratech gives the photographer full access to 25% of a sphere at any time, and it is entirely capable of providing support in any direction so long as your tripod legs are not overwhelmed. It may seem odd that such a small device would work well on a large tripod such as a 1500 series Gitzo, but in fact it does just that.Occasionally it is necessary to reorient the controls of the Acratech to access a particular angle, because the clamp is mounted at a 45° angle to the ballhead. Thus, if one needs to point straight down on one shot and then five degrees backward on the next, one must reorient the clamp 180°. This is quickly mastered and not a detriment to ownership, as the benefits of traveling with such a lightweight design are realized every time it is carried. This version includes a quick release clamp, with safety detent pin, and all rubber covered left-side control knobs. Note: A quick release plate is not included, and Acratech offers a range of camera-specific plates, as well as a standard 1/4"-20 plate. Or can be used with any "Arca-Swiss type" plate, available from Arca-Swiss, Foba, NPC, Novoflex & Wimberley. - Absolutely no migration after tightening the clamp
- Silky-smooth black anodized finish for precise positioning
- Open design facilitates quick maintenance
- "Dry" ball does not attract dirt or dust
- Fully captive controls will not come off from prolonged vibrations
- 10-Year Manufacturer's Warranty
In the Box Acratech Ultimate Ballhead w/ Quick Release w/ Detent Pin & Left Rubber Knobs 3/8"-16 to 1/4"-20 Reducer Bushing Limited 10-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Acratech Ultimate Ballhead w Quick Release w Detent Pin & Left Rubber Knobs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAcratech 1115 Specs | | | Head Type | Ball Head | | Base Mount | 3/8"-16 Thread & 1/4"-20 with Bushing | | Load Capacity | 25 lb / 11.3 kg | | Number of Bubble Levels | None | | Friction Control | No | | | | Dimensions | H: 4.1" / H: 10.4 cm | | Weight | 1.0 lb / 450.0 g | | | | Package Weight | 1.2 lb | | Box Dimensions (LxWxH) | 7.3 x 4.9 x 4.4" |
Rating98% users recommend this product to others. And what about you?
This product has already been rated by 73 owners. Add your rating and experience with the product.
