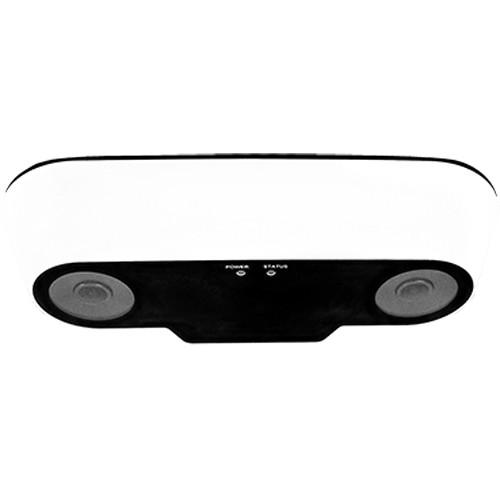

User Manual for ACTi 0.6MP Multi-Imager Network Dome Camera with 4mm Lenses Click to enlarge the picture
Contents of the user manual for the ACTi 0.6MP Multi-Imager Network Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 0.6MP Multi-Imager Network Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 0.6MP Multi-Imager Network Dome Camera from ACTi utilizes dual 1/3" progressive scan CMOS sensors and 4mm lenses to capture video at a resolution up to 0.6MP. It supports H.264 (Baseline/Main profile) compression format with simultaneous dual streaming. The camera features two lenses for a horizontal viewing angle of 63°. It comes with a built-in microSD/SDHC/SDXC card slot for onboard storage up to 128GB. -
- 0.6MP resolution
- Built-in analytics
- Line counting technology for counting people
UPC: 888034010215 In the Box ACTi 0.6MP Multi-Imager Network Dome Camera with 4mm Lenses Surface Mount Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 0.6MP Multi-Imager Network Dome Camera with 4mm Lenses in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q962 Specs | | | Image Sensor | 1/3" progressive scan CMOS | | Maximum Resolution | 0.6 MP | | Electronic Shutter | 1/10,000 to 1/25sec (auto mode) | | | | Quantity | 2 lenses | | Focal Length | 4mm | | Iris | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 63° | | Distance | Distance to Target (People): 13.1 to 16.4' (4 to 5 m) | | Direction | Face down | | | | Compression | H.264 (Baseline/Main profile) | | Maximum Frame Rate vs. Resolution | 640 x 960 at 24 fps
640 x 480 at 24 fps | | Multi-Streaming | Simultaneous dual streams | | Bit Rate | 32 kb/s to 8 Mb/s (per stream) | | Digital Noise Reduction | 3D-DNR | | Privacy Masking | Yes | | Technology | 3D counting technology | | Embedded Analytics | People counting (3D counting, line Counting, region counting), tampering | | | | Protocol | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, Bonjour, UPnP, QoS, IEEE 802.1X, SNMP | | Ethernet Port | 1 x RJ45 connector | | | | Event Trigger | Tampering detection, external device through digital input | | | | Metadata | Reporting and Presentation:
Fully compatible with ACTi Market Application Suite package | | ONVIF Conformance | (Profile S, Profile G) | | Web Browser | Internet Explorer 11 | | | | Serial Port | 1 x RS-485 | | Local Storage | microSD/SDHC/SDXC memory card slot (up to 128 GB) | | Digital Input/Output | 1 x input
1 x output | | | | Power Source | 12 VDC, PoE Class 3 (IEEE 802.3af) | | Power Consumption | 7 W (PoE) | | Operating Temperature | 14 to 104°F / -10 to 40°C | | Operating Humidity | 10-90% RH | | Approvals | CE, FCC | | Mount Type | Surface | | Dimensions | 7.6 x 2.8 x 1.4" / 194 x 70.2 x 35.8 mm | | Weight | 9.6 oz / 271 g |
