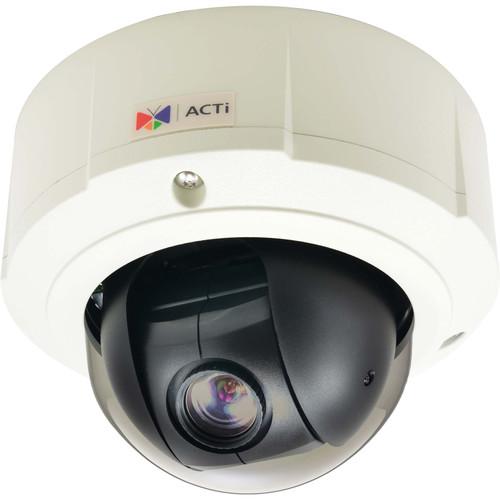

User Manual for ACTi 1.3MP Outdoor Mini PTZ Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi 1.3MP Outdoor Mini PTZ Dome
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 1.3MP Outdoor Mini PTZ Dome contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 1.3MP Outdoor Mini PTZ Dome Camera from ACTi features a 4.9-49mm varifocal lens with remote manual pan and tilt control. The lens can be panned or tilted from 5° to 90° per second and it can pan a total of -175° to 175° and tilted a total of 0° to 180°. With a 1/3" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 1280 x 960. It features a mechanical IR cut filter for true day/night functionality, automatically switching between color and B&W images for clear details. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage. Additionally, input and output terminal blocks offer 2-way audio capability.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected or if an external device is plugged into the digital input. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be surface, pendant, wall, corner, pole, flush, or gang box mounted for multiple setup options. Furthermore, an IP66- and IK10-rated housing, along with a -40°F cold climate operating temperature, allows you to install the camera in outdoor and high-risk areas. - 4.9-49mm varifocal lens with pan and tilt remote manual control
- 1/3" progressive-Scan CMOS sensor provides up to 1.3MP resolution
- True Day/Night functionality with an IR cut filter
- Image enhancements including WDR, white balance, automatic gain control, and digital noise reduction
- Video motion detection, sound detection, and external device in digital input alarm triggers
- When alarm is triggered the camera will send you an email notification with a snapshot
- Simultaneous dual streaming with two configurations
- Input and output for terminal blocks provide 2-way audio capability
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- The camera can be surface, pendant, wall, corner, pole, flush, or gang box mounted
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 888034006799 In the Box ACTi 1.3MP Outdoor Mini PTZ Dome Camera Transparent Dome Cover Mounting Screw Kit Hexagon Screwdriver Drill Template Conduit Gland Cable Gland Terminal Block Limited 3-Year Warranty Brochure PDF 177.6kbuycebeaceczeszatutsxydvxxcuzsyrvbrbe Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 1.3MP Outdoor Mini PTZ Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B94A Specs | | | Image Sensor | 1/3" progressive-scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400°K)
B&W: 0.05 lux at F1.8 (30 IRE, 2400°K) | | Color to B/W Switch | ISP based switch, configurable | | IR Sensitivity Range | 700 to 1,100 nm | | Electronic Shutter | 1/5 to 1/2,000 sec (manual mode)
1/5 to 1/10,000 sec (auto mode) | | | | Focal Length | 4.9-49mm varifocal | | Aperture | f/1.8 to 3.0 | | Zoom | 10x optical | | Zoom Speed | Maximum: 2 seconds | | Iris | DC iris | | Focus | Auto focus | | Lens Mount | Board mount | | Horizontal Viewing Angle | 52.12° to 5.9° | | | | Compression | H.264, MJPEG | | Maximum Frame Rate vs. Resolution | 30 fps at 1280 x 960
60 fps at 1280 x 720
30 fps at 640 x 480
15 fps at 320 x 240 | | Multi-Streaming | Simultaneous dual streams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Image Enhancement | Basic WDR 83.5 dB
White Balance: Automatic, hold, and manual
Brightness, Contrast, Sharpness (auto)
Auto Gain Control
Digital Noise Reduction Flickerless | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding, G.711 | | Audio In / Out | Terminal block | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering
HTTPs encryption
Password-protected user levels
Anonymous login
IEEE802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video, snapshot to FTP server
Activate external device through digital output | | | | Digital In/Out | Input: 1 x terminal block
Output: 1 x termnial block | | Local Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with with QuickTime installed (partial functionality) | | Power Source and Consumption | PoE Class 3 IEEE802.3af / 12.95 W, 12 VDC / 10.36 W | | Environmental Casing | Weatherproof (IP66-rated)
Vandal proof (IK10-rated)
Transparent dome cover | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | -40 to 122°F / -40 to 50°C | | Operating Temperature | -40 to 122°F / -40 to 50°C | | Operating Humidity | 10 to 85% RH | | Dimensions (Ø x H) | 6.00 x 4.60" (15.24 x 11.68 cm) | | Weighing units | 2.78 lb (1.26 kg) |
