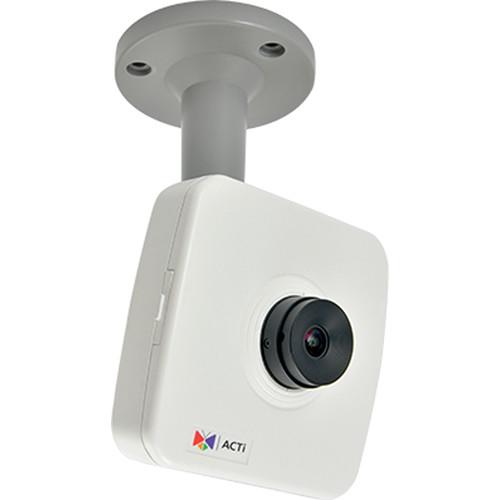

User Manual for ACTi 10MP Cube Camera Click to enlarge the picture
Contents of the user manual for the ACTi 10MP Cube Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 10MP Cube Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 10MP Cube Camera from ACTi utilizes a 1.37mm fixed fisheye lens, providing a 180° overview and a 109.8° view of highly detailed areas. With a 1/2.3" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 3648 x 2736. Wide dynamic range, white balance, auto gain control, and digital noise reduction features enable you to capture clear images in ambient lighting. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage. Additionally, a built-in microphone and a 3.5mm jack offer 2-way audio capability.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. Furthermore, there are four configurable privacy zones, allowing you to customize your field of view. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be wall or ceiling mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features. - 1/2.3" progressive scan CMOS sensor provides up to 10MP resolution
- Wide dynamic range allows you to capture clear images in varied lighting
- Image enhancements include white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- 4 configurable privacy masking zones for customizing your field of view
- Simultaneous dual streaming with two configurations
- Built-in microphone and 3.5mm phone jack output for 2-way audio
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- Network security with IP address filtering, HTTPS encryption, and password-protected user levels
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 888034006003 In the Box ACTi 10MP Cube Camera Bracket Mounting Hardware Limited 3-Year Warranty Brochure PDF 956.3kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 10MP Cube Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E16 Specs | | | Image Sensor | 1/2.3" progressive-scan CMOS | | Effective Pixels | 10.66 MP: 3856 (H) x 2764 (V) | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400 K) | | Shutter Speed | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Horizontal Resolution | 1450 TVL | | S/N Ratio | 52 dB | | | | Lens | 1.37mm fixed fisheye | | Aperture | f/2.0 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | Overview Area: 180°
High Detail Area: 109.8° | | | | Compression | H.264 (baseline / main / high profile), M-JPEG | | Maximum Frame Rate | 3648 x 2736 at 7 fps
2592 x 1944 at 7 fps
2048 x 1536 at 7 fps
1440 x 1080 at 7 fps
1280 x 960 at 7 fps
800 x 600 at 7 fps
640 x 480 at 7 fps
320 x 240 at 7 fps | | View Mode | Fisheye view, 180° / 360° panorama, ePTZ | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 Kbps to 6 Mbps (per steam) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (74 dB)
White Balance: Automatic, hold, and manual
Brightness, Contrast, Sharpness (auto)
Automatic gain control
2D- and 3D-Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, mono, PCM, 16-bit encoding, G.711 | | Input | Built-in microphone | | Output | 3.5mm phone jack | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Network Connectors | 1 x Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Alarm Trigger | Video motion detection (3 regions), sound detection | | Alarm Response | Notify control center, change camera settings, command other devices, email notification with snapshot, save video or snapshot to local storage, upload video or snapshot to FTP | | | | Local Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF-compliant | | GPS | Positioning: Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed, and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE 802.3af) | | Power Consumption | 3.84 W | | Mount Type | Wall, Ceiling | | Starting Temperature | 14 to 122°F / -10 to 50°C | | Operating Temperature | 14 to 122°F / -10 to 50°C | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), UL (for optional PoE injector) | | Dimensions | 3.8 x 3.8 x 1.8" / 9.7 x 9.7 x 4.6 cm | | Weight | 8.6 oz / 245.0 g | | | | Package Weight | 1.05 lb | | Box Dimensions (LxWxH) | 7.9 x 5.5 x 3.5" |
