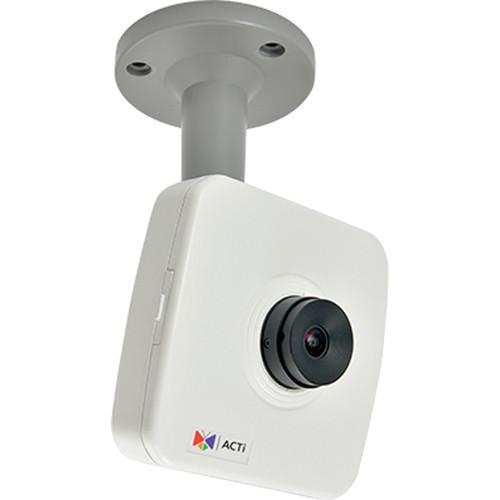

User Manual for ACTi 10MP Cube Camera with Basic WDR and 3.6mm Interchangeable Lens Click to enlarge the picture
Contents of the user manual for the ACTi 10MP Cube Camera with Basic
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 10MP Cube Camera with Basic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description ACTi's 10MP Cube Camera with Basic WDR and 3.6mm Interchangeable Lens is a high-resolution surveillance camera for indoor installations. It's ONVIF-compliant and can be used with compatible NVRs for recording, or simply with ACTi software and MicroSD cards. In either scenario, a connection to a network is required. When connected to an NVR, the NVR provides Power-over-Ethernet to the camera, and when working with ACTi software, the network connection provides Power-over-Ethernet. The ACTi software is available as a free download and MicroSD cards are sold separately. Sufficient sunlight or interior light is required for clear recording.
The range of selectable resolutions includes 1080p @ 30 fps and 3648 x 2736 @ 6 fps, the latter being close to Ultra HD 4K resolution. Playback at the latter resolution will be choppy because of the low frame rate required to capture at such high resolution, but the camera offers a high shutter speed that ensures clear images, without destructive blurriness. The recording codec is H.264, which is one of the ideal codecs for playback on mobile devices.
The included lens features a wide 3.6mm focal length and 99° wide viewing angle, and it's interchangeable with other CS-mount lenses matching the imaging capabilities of the camera. ACTi does not have other matching CS-mount lenses, but 3rd-party lenses are supported. The camera also features a built-in microphone and a 3.5mm audio output that allows you to connect to a speaker/computer for live monitoring of sound.
A motion detection feature allows you to assign three trigger-point areas for auto recording if you don't want the camera to record constantly. This is done via the ACTi software, even if you're working with an NVR. A mounting bracket is included for wall and ceiling mounting, and both the camera and bracket are white to blend in with most rooms. - Key Features
-
- High-resolution indoor surveillance camera
- Works with compatible NVRs or with ACTi software and MicroSD cards
- Powered by Power-over-Ethernet
- Range of resolutions include 1080p @ 30 fps and 3648 x 2736 @ 6 fps
- High shutter speed ensures clear images
- H.264 recording codec
- Interchangeable CS-mount lens, 99° wide viewing angle
- Built-in microphone and 3.5mm audio output
- 3-region motion detection for auto recording
- Wall/ceiling mounting bracket included
- Image Enhancement
-
- Basic WDR (70 dB)
- White balance: automatic, hold, and manual
- Brightness
- Contrast
- Sharpness (auto)
- Auto gain control
- Digital noise reduction
- Flickerless
- User-defined text overlay on video
- Image flip and mirror
- Alarm Response (via ACTi Software)
-
- Notify control center
- Change camera settings
- Command other devices
- E-mail notification with snapshots
- Save video or snapshot to local storage
- Upload video or snapshot to FTP server
- Activate external device through digital output
- Alarm Trigger: Video motion detection (3 regions)
- Integration
-
- Fully compatible with ACTi software
- Supports optional Software Development Kit (SDK)
- ONVIF compliant
- Full compatibility with Microsoft Internet Explorer 8.0 or newer
- Partial compatibility with Safari with QuickTime installed, and with other browsers with VLC installed
UPC: 888034004658 In the Box ACTi 10MP Cube Camera with Basic WDR and 3.6mm Interchangeable Lens Mounting Bracket (Wall / Ceiling) Limited 3-Year Warranty Brochure PDF 595.6kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 10MP Cube Camera with Basic WDR and 3.6mm Interchangeable Lens in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E14 Specs | Image Sensor | 1/2.3" Progressive Scan CMOS | | Minimum Illumination | Color: 0.1 lux at F1.8 (30 IRE, 2400K) | | Electronic Shutter | 1/5 - 1/2,000 sec (manual mode); 1/5 - 1/10,000 sec (auto mode) | | Frame Rate / Resolution | 6 fps @ 3648 x 2736
6 fps @ 3648 x 2160
6 fps @ 2592 x 1944
6 fps @ 2048 x 1536
30 fps @ 1920 x 1080
30 fps @ 1280 x 720
30 fps @ 640 x 480
15 fps @ 320 x 240 | | TV Lines | 1450 | | S/N Ratio | 52 dB | | Lens | Interchangeable lens; fixed focal, f3.6 mm / F1.8 | | Lens Mount | CS mount | | Iris | Fixed iris | | Focus | Manual focus | | Horizontal Viewing Angle | 99° | | Video Compression | H.264 HP, MJPEG | | Multi-Streaming | Simultaneous dual streams based on two configurations | | Bit Rate | 28 Kbps - 6 Mbps (per stream) | | Bit Rate Mode | Constant, Variable | | Audio Compression | 8 kHz, Mono, PCM, 16 bit encoding; G.711 | | Audio Input | Built-in microphone | | Audio Output | 3.5 mm phone jack | | Network Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1x RJ-45, Ethernet (10/100 Base-T) | | Security | IP address filtering, HTTPs encryption, password protected user levels, anonymous login, IEEE802.1X network access control | | Alarm Trigger | Video motion detection (3 regions) | | Local Storage | MicroSDHC/MicroSDXC memory card slot (card not included) | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 3.84 W | | Color | White | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B) | | Starting Temperature | 14 to 113°F (-10 to 45°C) | | Operating Temperature | 14 to 113°F (-10 to 45°C) | | Operating Humidity | 10 - 85% RH | | Dimensions | 3.8 x 3.8 x 1.8" (9.6 x 9.6 x 4.5 cm) | | Weight | 0.8 lb (376 g) | | | | Package Weight | 0.98 lb | | Box Dimensions (LxWxH) | 7.95 x 5.45 x 3.5" |
