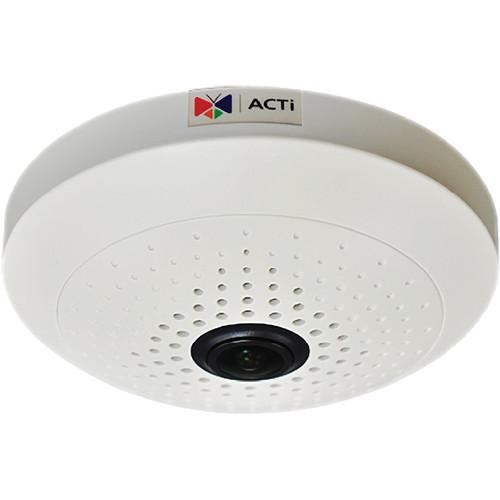

User Manual for ACTi 10MP Dome Camera Click to enlarge the picture
Contents of the user manual for the ACTi 10MP Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 10MP Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 10MP Dome Camera from ACTi features a 1.37mm fixed hemispheric fisheye lens, providing a 180° overview and a 109.8° view of highly detailed areas. With a 1/2.3" progressive-scan CMOS sensor, the camera captures images at a maximum resolution of 3648 x 2736. It features a mechanical IR cut filter for true day/night functionality, automatically switching between color and B&W images for clear details. The camera uses both H.264 and MJPEG formatting for maximizing your storage and bandwidth, and a microSD slot allows for on-site recording with edge storage. Additionally, input and output terminal blocks offer 2-way audio capability.
The camera can detect motion in up to three programmable areas, and it will also set off an alarm if sound is detected or if an external device is plugged into the digital input. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your local storage. The RJ45 Ethernet connection uses PoE technology for a simple installation, and the camera can be surface, pendant, wall, corner, pole, flush, or gang box mounted for multiple setup options. ONVIF compliance enables compatibility with a wide range of surveillance devices, allowing you to connect the camera to an NVR for additional storage and management features. - Hemispheric 1.37mm fisheye lens with f/2.0 aperture for 180° field of view
- 1/2.3" progressive-Scan CMOS sensor provides up to 10MP resolution
- Day/Night functionality with an IR cut filter
- Image enhancements including WDR, white balance, automatic gain control, and digital noise reduction
- Video motion detection, sound detection, and external device in digital input alarm triggers
- When alarm is triggered the camera will send you an email notification with a snapshot
- Simultaneous dual streaming with two configurations
- Input and output for terminal blocks provide 2-way audio capability
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- The camera can be surface, pendant, wall, corner, pole, flush, or gang box mounted
- ONVIF-compliant for compatibility with a wide range of surveillance devices
UPC: 888034003392 In the Box ACTi 10MP Dome Camera Screw Kit Drill Template Sticker Terminal Block for Power DI / DO Terminal Block Limited 3-Year Warranty User Manual PDF 1.4mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 10MP Dome Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi B55 Specs | | | Image Sensor | 1/2.3" progressive-scan CMOS | | Minimum Illumination | Color: 0.1 lux at f/2.0 (30 IRE, 2400K)
B&W: 0.05 lux at f/2.0 (30 IRE, 2400K) | | Color to B/W Switch | ISP based switch, configurable | | IR Sensitivity Range | 700 to 1,100 nm | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 sec
Auto Mode: 1/5 to 1/10,000 sec | | | | Focal Length | 1.37mm fixed fisheye | | Aperture | f/2.0 | | Iris | Fixed iris | | Focus | Fixed focus | | Lens Mount | Board-mount | | Horizontal Viewing Angle | Overview Area: 180°
High Detail Area: 109.8° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 7 fps at 3648 x 2736, 2592 x 1944, 2048 x 1536, 1440 x 1080, 1280 x 960, 800 x 600, 640 x 480, 320 x 240 | | Mode | Fisheye view, 180° / 360° Panorama, ePTZ | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (70 dB)
White Balance: automatic, hold, manual
Brightness
Contrast
Sharpness (auto)
Automatic gain control
Digital noise reduction
Flickerless | | Privacy Masking | 4 configurable regions | | Text Overlay | User defined text on video | | Image Orientation | Image flip and mirror | | | | Compression | 8 kHz, Mono, PCM, 16-bit encoding
G.711 | | Audio In / Out | 2 x 3.5 mm phone jack | | | | Protocols | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1, Ethernet (10 / 100 Base-T), RJ-45 connector | | Security | IP address filtering
HTTPS encryption
Password protected user levels
Anonymous login
IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions)
External device through digital input
Sound detection | | Alarm Response | Notify control center
Change camera settings
Command other devices
E-mail notification with snapshots
Save video or snapshot to local storage
Upload video, snapshot to FTP server
Activate external device through digital output | | | | Digital In/Out | Input: 1 x terminal block
Output: 1 x terminal block | | Local Storage | microSDHC memory card slot | | | | Unified Solution | Fully compatible with ACTi software (sold separately) | | ISV Integration | Software Development Kit (SDK) available
ONVIF compliant | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Other browsers with VLC installed (partial functionality) | | | | Power Source and Consumption | PoE Class 2 (IEEE 802.3af) / 4 W
12 VDC / 3.4 W | | Mount Type | Surface, pendant, wall, corner, pole, flush, gang box | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | 14 to 122°F (-10 to 50°C) | | Operating Humidity | 10 to 85% RH | | Dimensions (Ø x H) | 5.91 x 1.83" (150.11 x 46.48 mm) | | Weight | 0.75 lb (0.34 kg) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 8.0 x 7.8 x 3.5" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 39 owners. Add your rating and experience with the product.
