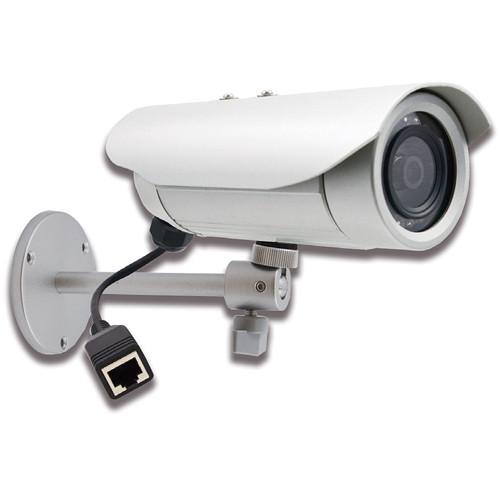

User Manual for ACTi 10MP Outdoor Bullet Camera Click to enlarge the picture
Contents of the user manual for the ACTi 10MP Outdoor Bullet Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 10MP Outdoor Bullet Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 10MP Outdoor Bullet Camera from ACTi utilizes a 1/2.3" progressive-scan CMOS sensor to capture video in 3648 x 2736 resolution at 7 fps, and it features a 3.6mm fixed lens for a 101.4° horizontal field of view. Twenty integrated IR LEDs enable the camera to capture video at a distance of up to 98.4', even in complete darkness. Additionally, WDR, white balance, automatic gain control, and digital noise reduction enable the camera to capture clear images in ambient lighting. H.264 and MJPEG formatting maximizes your storage and bandwidth usage, and a microSD slot supports microSD cards for on-site recording and edge storage.
The camera features motion detection in up to three programmable areas, and it will also set off an alarm if sound is detected. Once an alarm is triggered, the camera will send you an email with a snapshot of the situation or save a video of the incident to your FTP server. Privacy masking can be configured in four separate areas of the viewing field, and brightness, contrast, and sharpness settings allow you to configure your camera based on various environments. The camera is ONVIF compliant, enabling compatibility with a variety of other surveillance devices. With its IP68-rated weatherproof and IK10-rated vandal-proof metal enclosure, the camera can be installed outdoors and in high-risk areas. Additionally, PoE technology enables you to setup the camera using just one RJ45 cable, simplifying your installation process. - 1/2.3" progressive-Scan CMOS sensor provides up to 10MP resolution
- 20 integrated IR LEDs enable the camera to capture clear images up to a distance of 98.4' in complete darkness
- True Day/Night functionality with a mechanical IR cut filter
- Image enhancements including WDR, white balance, automatic gain control, and digital noise reduction
- Program up to three separate areas to trigger an alarm when motion is detected
- When alarm is triggered the camera will send you an email notification with a snapshot
- Simultaneous dual streaming with two configurations
- H.264 and MJPEG compression maximizes your network and storage usage
- microSD slot supports microSD card for on-site recording and edge storage
- RJ45 Ethernet connection features PoE technology for a simple installation
- Network security with IP address filtering, HTTPs encryption, and password protected user levels
- The camera can be wall, ceiling, corner, and pole mounted
- ONVIF-compliant for compatibility with a wide range of surveillance devices
- IP68-rated weatherproof and IK10-rated vandal-proof metal enclosure allows you to install the camera outdoors and in high risk areas
UPC: 888034003729 In the Box ACTi 10MP Outdoor Bullet Camera Conduit Gland Cable Gland 2 x Washer Sunshield Sunshield Screw Kit Bracket Bracket Plate Limited 3-Year Warranty User Manual PDF 1.7mb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 10MP Outdoor Bullet Camera in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi E37 Specs | Image Sensor | 1/2.3" progressive-scan CMOS | | Effective Pixels | 10.66 MP: 3856 (H) x 2764 (V) | | Horizontal Resolution | 1450 TVL | | Day/Night | Yes | | Low Light Sensitivity | Standard | | Minimum Illumination | Color: 0.1 lux at f/1.85 (30 IRE, 2400 K)
B/W: 0 lux (IR LED on) | | Color to B/W switch | Configurable ISP-based switch | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | Adaptive IR LED x 20 (850 nm) | | IR Working Distance | 98.4' / 30.0 m (0 lux, 30 IRE, Gain 255, Auto shutter mode) | | Electronic Shutter | Manual Mode: 1/5 to 1/2,000 seconds
Auto Mode: 1/5 to 1/10,000 seconds | | Signal to Noise Ratio | 52 dB | | | | Focal Length | 3.6mm fixed | | Aperture | f/1.85 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board | | Horizontal Viewing Angle | 101.4° | | | | Compression | H.264 (Baseline / Main / High Profile), MJPEG | | Maximum Frame Rate vs. Resolution | 3648 x 2736 at 7 fps
3648 x 2160 at 7 fps
2592 x 1944 at 7 fps
2048 x 1546 at 7 fps
1920 x 1080 at 30 fps
1280 x 720 at 30 fps
800 x 600 at 30 fps
640 x 480 at 30 fps
320 x 240 at 15 fps | | Multi-Streaming | Simultaneous dual steams based on 2 configurations | | Bit Rate | 28 kb/s to 6 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Basic WDR (70 dB)
White balance (automatic, hold, manual)
Brightness, Contrast, Sharpness (auto)
Automatic gain control
Digital noise reduction
Flickerless | | Privacy Mask Type | 4 configurable regions | | Text Overlay | User-defined text on video | | Image Orientation | Image flip and mirror | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv4, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | 1 x Ethernet (10/100 Base-T), RJ-45 connector | | Security | IP address filtering, HTTPS encryption, password-protected user levels, anonymous login, IEEE 802.1X network access control | | | | Alarm Triggers | Video motion detection (3 regions) | | Alarm Response | Notify control center, change camera settings, command other devices, email notifications with snapshots, upload video or snapshot to FTP server | | | | Local Storage | microSDHC/SDXC memory card slot | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software Development Kit (SDK) available
ONVIF-compliant | | GPS | Positioning: manual setting | | Firmware Access Browser | Microsoft Internet Explorer 8.0 or newer (full functionality)
Safari with QuickTime installed and other browsers with VLC installed (partial functionality) | | | | Power Source | PoE Class 2 (IEEE802.3af) | | Power Consumption | 4.8 W (IR on) | | Environmental Casing | Weatherproof (IP68-rated)
Vandal proof (IK10-rated) | | Mount Type | Wall, ceiling, corner, pole | | Starting Temperature | -4 to 122°F (-20 to 50°C) | | Operating Temperature | -40 to 122°F (-40 to 50°C) | | Operating Humidity | 10 to 85% RH | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (Part15 Subpart B Class B), and NEMA 4X | | Dimensions (Ø x H) | 3.0 x 7.5" (7.7 x 19.0 cm) | | Weight | 1.9 lb (0.8 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 9.134 x 8.031 x 3.701" |
