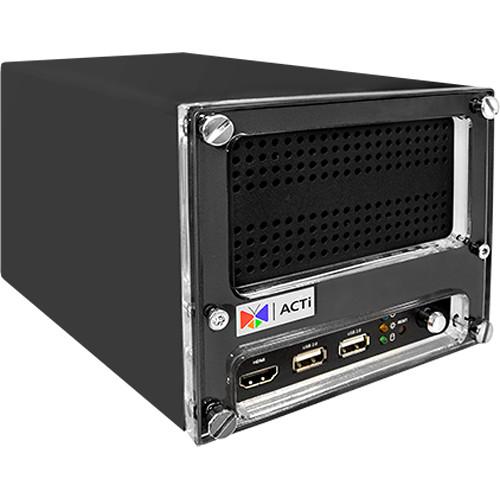

User Manual for ACTi 16-Channel 12MP Standalone Desktop NVR Click to enlarge the picture
Contents of the user manual for the ACTi 16-Channel 12MP Standalone Desktop NVR
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi 16-Channel 12MP Standalone Desktop NVR contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Stream and record up to 16 channels of video with the 16-Channel 12MP Standalone Desktop NVR from ACTi at resolutions up to 12MP. Equipped with two SATA ports, each supporting an HDD up to 10TB, the NVR can support up to 20TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265, H.264, MJPEG-4, and MJPEG compression.
The NVR enables simultaneous live view and playback of up to 16 channels at resolutions up to 1920 x 1080 via its HDMI port. Up to 16 channels can be recorded simultaneously, with a maximum throughput of 300 Mb/s. Terminal block connectors allow for bidirectional audio, and internet connectivity for remote monitoring via PCs as well as from Android and iOS devices. - Channel display with e-map, Google Maps, and extended devices
- Metadata overlap on video (position, dwell time, font and color, motion event alarm)
- Quick switch between playback and live view of each channel
- Playback of one channel while others are on live streaming
- View manager camera setup, search, add
- Enables associating POS, AC, network DIO, and PMS devices with camera
- Firmware management and local storage management
- Virtual camera of imported video
- Automatic switch between different display layouts
- Zoom in and out digitally by mouse scroll wheel or by zoom control buttons
- Display status for network, record, motion, DI, and video loss upon every video region
UPC: 888034009974 In the Box ACTi 16-Channel 12MP Standalone Desktop NVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 16-Channel 12MP Standalone Desktop NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-222 Specs | | | Maximum Number of Clients | 1 x local, 2 x remote (IE, CMS2, VMS workstation), and 1 x mobile (iOS or Android) | | Maximum Number of Devices | Video: 16
AC/PMS/Network DIO: 16
POS: 1 | | Compression | Video: H.265, H.264, MJPEG-4, MJPEG
Audio: G.711 (u-law, a-law), G.726, PCM | | Local Display | Resolution: 1920 x 1080 max. | | Fisheye Mode | Original, dewarping, panorama, double panorama, panorama focus, and quad | | Analytics | Line crossing, enter area, missing object, unattended object, tamper
Up to 2 channels (licenses available separately) | | | | Maximum Camera Resolution | Local: Up to 8 MP
Remote: Up to 12 MP | | Zoom | Digital zoom | | Multi-Streaming | Live view of stream 1, stream 2, or stream 3 | | Two-Way Audio | Yes | | | | Control | Continuous pan, tilt, and zoom with speed control
Focus mode setting (auto/manual) | | Zoom | Zoom in/out optically or digitally by control buttons | | Preset Points and Tours | Add, go to, delete, and replace | | Number of Preset Points | Unlimited | | Operation | Joystick, virtual joystick, and mouse | | Protocol Support | ACTi and ONVIF | | | | Source | Video: Dual streams of camera
Audio: Audio in from camera or local audio device | | Maximum Camera Resolution | 12 MP | | Scheduled Recording | Record video with user-defined schedule (regular and specific schedule)
Auto recycling by video age and user settings (1-999 reserved days) | | Pre-Event Recording | Maximum Buffer: 10 seconds, user-defined | | Post-Event Recording | Maximum Buffer: 3600 seconds, user-defined | | Event Speed-Up Recording | Record 1 frame only in normal status, and record full frames when alarm event is triggered | | Manual Recording | Instant recording upon mouse click | | Recording Frame Rate | Total 480 fps max. | | Maximum Recording Throughput | 300 Mb/s | | | | Interface | SATA | | Max. HDD Capacity | 2 x 10 TB (HDDs available separately) | | HDD Bay | 2 x 3.5" HDD | | External Storage | Samba, NFS, iSCSI, USB flash drive | | | | Video Search | By time, channel, or bookmark | | Playback Control | Play forward and backward with speeds x2, x4, x8, x16, x1/2, x1/4, x1/8
Pause | | Synchronized Playback | Up to 16 channels | | Maximum Frame Rate | Playback: 16 channels at 60 fps | | Snapshot | Manual: Create snapshot from playback for export
Channel or full-screen snapshot | | Cropping | Crop a short video clip from long recording file and save it as an independent file
Video Clip Length: 1-30 minutes locally, 10-60 minutes remotely | | Video Export | Raw, AVI
One- or all-channel view, text overlap on video, metadata on video (POS, AC, network DIO, PMS) | | | | Event Trigger | System Event: Storage access error/missing, user account/device schedule expired, system boot up, event action fail
Camera Event: Motion/sound detection, video loss/recovery, event from ACTi Analytics camera
Server Event: ACTi IVS/ALPR/RAS server event | | Event Response | Play alert beep, activate external device through digital output, email notification with snapshots and messages, pop-up instant live view channel, start and stop recording, enlarge video loss, go to PTZ preset point | | Scheduling | Regular (weekly calendar in 24 hours, 20 minutes per unit) and specific scheduler | | | | Firmware Upgrade | Auto-check from website, USB, or network storage
Manual and scheduled upgrade | | Configuration | System/camera configuration backup and restore via USB and network storage
Password protection | | Permission Control | Multi-group/users, live view / playback / setup / remote level permission | | Operating System | Linux, embedded | | System Status Monitor | Real time status and message on screen | | Language | English, multi-language support (export/update/restore) | | | | PC Web Browser | Microsoft Internet Explorer (IE 10/11) with live view, PTZ, playback, event management, setup | | PC Client Program | User interface program (ACTi VMS workstation) with live view, PTZ, playback, e-map, event management, setup | | Mobile Client Program | Mobile device application (ACTi Mobile client) with live view, PTZ control, event- or time-based search and playback
Supported Devices: iPhone, iPad, iPod Touch, and Android | | | | Compatibility | ACTi cameras, encoders, central management system, TV wall, and intelligent video surveillance software | | Compliance | Supports ONVIF-compliant devices | | Devices | POS (Point of Sale): NCR-Aloha, pcAmerica-Cash Register Express, NEC/NEC, Standard/Standard, POSNET/KASY and DRUKARKI, import raw data from COM port
PMS (Parking Management Station): Sunpark
Network DIO: Advantech Adam 60xx I/O Modbus TCP Module
AC (Access Control): HID VertX 1000 | | | | CPU | Hi3536 | | RAM | 4 GB; 8 x DDR3 1800 MHz, 512 MB | | Power Source and Consumption | 48 VDC, 1.3 A | | USB | 1 x USB 3.0 port
2 x USB 2.0 ports | | Ethernet | 2 x RJ45, WLAN | | Audio | 1 x input port
1 x output port
Terminal block | | Digital Input/Output | 2 x input port
2 x output port
Terminal block | | Video Output | 1 x HDMI port | | Approvals | CE (EN 55032 class B, EN 55024), FCC (part 15, subpart B, class B)
Adapter: CE, FCC, UL, PSE, efficiency level VI | | Operating Temperature | 32 to 104°F / 0 to 40°C | | Operating Humidity | 10-85% RH | | Dimensions | 10.65 x 2.81 x 9.41" / 27.06 x 7.13 x 23.90 cm | | Weight | Not specified by manufacturer |
