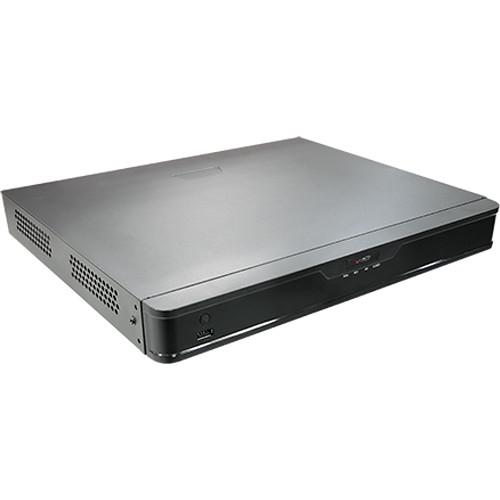

Product description Stream and record up to 16 channels of video with this ACTi Standalone PoE NVR at resolutions up to 12MP. Equipped with two SATA ports, each supporting an HDD up to 8TB, the NVR can be configured to have up to 16TB of internal storage (HDDs available separately). External storage options include PCs via internet connection, network servers, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265 and H.264 dual-streaming compression.
The NVR enables simultaneous live view and playback of up to 16 channels at resolutions up to 12P via VGA and HDMI ports. Up to 16 channels can be recorded simultaneously, with a maximum combined throughput of 160 Mb/s. The NVR is equipped with RCA connectors for bidirectional audio and with an integrated PoE switch for powering up to 16 IP cameras directly via network connection. - Default 24 x 7 recording schedule; may be edited to record video in specified periods only
- Instant recording upon mouse click
- Instant playback in live view window
- Event status display upon alarm, or upon connection loss/recovery between server and client
UPC: 888034010031 In the Box ACTi 16-Channel 12MP Standalone PoE NVR (No HDD) Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 16-Channel 12MP Standalone PoE NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ZNR-220P Specs | | | Maximum Number of Cameras | 16 channels | | Licenses | 16-channel license included | | Maximum Number of Clients | Local: 1
Remote: 2 | | Number of Remote Users Supported | 128 max | | Compression | H.265, H.264 | | Resolution | Local/Remote Display: 12 MP max | | Operating System | Server: Linux embedded
Client PC: Windows 8, Windows 7 | | Compliance | Supports ONVIF-compliant devices | | Web Browser | IE 10 or newer, Firefox, Chrome, Opera | | Remote Access | Web client | | Approvals | CE, FCC | | | | Display Layout Mode | 1, 4, 6, 8, 9, 16 | | Resolution | 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, 2CIF, CIF | | Synchronized Playback | Up to 16 channels | | Playback Control | Continuous forward and backward playback with speeds 1/8x, 1/4x, 1/2x, 1x, 2x, 4x, 8x, 16x, 32x, 64x, 128x, 256x
Pause
Stop | | Video Export | MP4 | | Audio Connectors | 1 x RCA, 1-channel input
1 x RCA, 1-channel output | | | | Control | PTZ control, speed control | | | | Modes | Scheduled, event, manual | | Maximum Recording Throughput | 160 Mb/s total bit rate | | Maximum Frame Rate vs. Resolution | 20 fps at 4072 x 3076, 30 fps at 3840 x 2160, 20 fps at 2688 x 1520, 25 fps at 1920 x 1080, 25 fps at 1280 x 720 | | Multi-Streaming | Main Stream: For scheduled recording and recording triggered by events such as alarm inputs or motion detection alarms
Sub Stream with Low-Resolution Video: For local or remote real-time monitoring | | | | HDD Interface | 2 x SATA, up to 8 TB each (HDDs available separately) | | | | Protocol | UPnP, NTP, DHCP, PPPoE | | Ethernet Ports | Non-PoE: 1 x Ethernet 10/100/1000Base-T, RJ45
PoE: 16 x Ethernet 10/100Base-T, RJ45 | | PoE Support | IEEE 802.3at and IEEE 802.3af standards | | | | Access | Local: HDMI/VGA monitor, USB keyboard & mouse | | | | CPU | Hi3536 | | Power Source | 100-240 VAC | | Power Consumption | 20 W (without HDDs) | | PoE Power Budget | 30 W max. for single port, 240 W max total (15 W per PoE port) | | Digital | 4 x terminal block inputs
1 x terminal block output | | USB | 1 x USB 3.0 port
2 x USB 2.0 ports | | Audio | 1 x 3.5mm phone jack line input
1 x 3.5mm phone jack line output | | Display | 1 x VGA
1 x HDMI | | Operating Temperature | 14 to 131°F / -10 to 55°C | | Operating Humidity | 10-90% RH | | Dimensions | 15.0 x 12.4 x 1.9" / 38.0 x 31.5 x 4.6 cm | | Weight | 5.47 lb / 2.48 kg |
