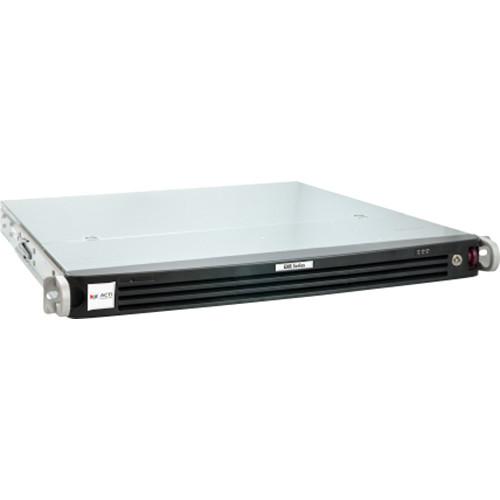

User Manual for ACTi 16-Channel 4MP 10MP Rackmount Standalone NVR Click to enlarge the picture
Contents of the user manual for the ACTi 16-Channel 4MP 10MP Rackmount Standalone
- Product category: Network Video Recorders (NVRs) ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Network Video Recorders (NVRs)
|
User manual for the ACTi 16-Channel 4MP 10MP Rackmount Standalone contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description Stream and record up to 16 channels of video with this ACTi 4MP/10MP Rackmount Standalone NVR. The recorder allows simultaneous access to one local client and two remote clients, supporting up to 4MP on a local display and up to 10MP on a remote display. When viewing live video you can choose from a variety of display modes to monitor some or all of the connected cameras at the same time. Pan, tilt, and zoom controls with speed settings offer remote control of PTZ cameras, joystick control being supported via the recorder's dual USB 2.0 interface. Four HDD bays, each with a 10TB capacity, provide the NVR with a total storage capacity of 40TB (HDDs available separately). H.264 formatting optimizes bandwidth and storage usage.
The NVR can record video based on customized schedules or event triggers, and also allows for instant manual recording at a mouse click. Event triggers include motion detection, network loss and recovery, and detection of an external device through the digital input. When searching through footage you can find recordings by time, channel, or bookmark, and media controls allow you to adjust the playback speed as well as to pause or stop the footage. Additionally, during playback you can take snapshots from your footage and crop video clips, which can then be exported in AVI or raw format. Mobile support allows for live viewing, PTZ control, and event- or time-based search and playback on iOS and Android devices. The recorder is ONVIF-compliant, ensuring compatibility with a wide range of surveillance devices. - Remote access via mobile client and web client
- Displays event status upon alarm or upon connection loss or recovery between server and client
- Instant playback in live view window (remote client)
UPC: 888034006645 In the Box ACTi 16-Channel 4MP/10MP Rackmount Standalone NVR US Power Cord Mouse Universal Converter 16 x HDD Screws Limited 3-Year Warranty Brochure PDF 628.4kb Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 16-Channel 4MP 10MP Rackmount Standalone NVR in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi ENR-190 Specs | | | Maximum Number of Cameras | 16 | | Maximum Number of Clients | Local: 1
Remote: 2 | | Video Resolution | Up to 4 MP local
Up to 10 MP remote | | | | Display Layout Mode | Local: 1, 2, 4, 9, 12, 16, 1+5, 1+7, 1+12, 2+4, 2+8
Remote: 1, 2, 4, 9, 12, 16, 1+5, 1+7, 1+12, 2+4, 2+8 | | Fisheye Dewarp Mode | Remotely only | | | | PTZ Control | PTZ control, speed control, 32 preset points | | Joystick | USB-based joystick supported | | | | Compression | H.264 | | Output | 1 x HDMI port | | | | Network Protocols and Services | IPv4/v6, TCP, IP, UDP, HTTP, HTTPS, DHCP (server/client), PPPoE, RTP, RTSP, DNS, DDNS, NTP, ICMP, ARP, SMTP, UPnP | | Ethernet Port | Non-PoE:
1 x 1000 Base-T port, RJ45
1 x 10/100 Base-T port, RJ45 | | Security | HTTPS encryption, password-protected user level | | | | Modes | Scheduled recording, event recording, manual recording, event speed-up recording, dual-stream management | | Maximum Recording Throughput | 48 Mb/s | | | | Playback Control | Continuous forward and backward playback with speeds 0.5x/1x/2x/4x/8x/16x/32x; pause; stop | | Synchronized Playback | 16 channels | | Video Export | Formats: AVI/raw | | | | Event Trigger | Video motion detection, external device through digital input, network loss and recovery | | Event Response | Play alert sound, activate external device through digital output, email notification with snapshots, go to PTZ preset point or preset tour | | | | Permission Control | Unlimited number of users, customizable permissions for user groups | | Client PC Operating System | Windows 7/8 | | Server Operating System | Linux, embedded | | Mobile Client Program | Mobile device application (ACTi mobile client) supports live view, PTZ control, event/time-based search and playback
Supported Devices: iPhone, iPad, Android | | USB | 2 x USB 2.0 ports | | Language | Multi-language | | System Status Monitor | Real-time status reports on remote browser | | | | Unified Solution | Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software | | ONVIF | Profile S | | Web Browser | IE 11 | | | | HDD Bay | 4 x 3.5" SATA, up to 10 TB capacity each
HDDs available separately | | | | Access | Local: HDMI monitor, USB keyboard & mouse | | | | Power Source | 100 to 240 VAC | | Power Consumption | 64 W (AC) | | Mount Type | Rackmount | | Fan | Yes | | Rack Space | 1 RU | | Remote Access | Workstation, web client, mobile client | | Approvals | CE, FCC, UL (for built-in power adapter) | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Operating Humidity | 10-85% RH | | Dimensions | 17.3 x 1.7 x 19.9" (43.8 x 4.4 x 51.2 cm) | | Weight | 12.13 lb (5.5 kg) | | | | Package Weight | 25.0 lb | | Box Dimensions (LxWxH) | 28.3 x 23.8 x 7.7" |
