ACTi 16-Channel Standalone NVR with 4TB

Search your instruction manual in PDF to download

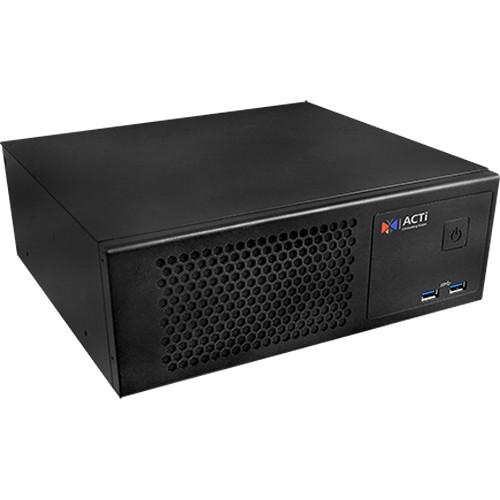

User Manual for ACTi 16-Channel Standalone NVR with 4TB HDD

Click to enlarge the picture
ACTi 16-Channel Standalone NVR with 4TB HDD Contents of the user manual for the ACTi 16-Channel Standalone NVR with 4TB
  • Product category: Network Video Recorders (NVRs) ACTi
  • Brand: ACTi
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for ACTi Network Video Recorders (NVRs)

User manual for the ACTi 16-Channel Standalone NVR with 4TB contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any ACTi product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!



Product description

Stream and record up to 16 video channels with this Standalone NVR from ACTi, supporting all ACTi camera resolutions. The NVR is equipped with a single SATA port which can accommodate an HDD up to 10TB (4TB preinstalled). External storage options include PCs via internet connection, network servers, eSATA drives, and USB storage devices. Network bandwidth is optimized while ensuring high-quality recording and playback using H.265, H.264, MJPEG, or MPEG-4 compression.

The NVR enables simultaneous playback of up to 9 channels on a local display via its HDMI, DVI, and DisplayPort video outputs, or up to 16 channels on a remote display. Up to 16 channels can be recorded simultaneously with a maximum throughput of 300 Mb/s. Internet connectivity enables remote monitoring via PCs as well as from iOS and Android devices. The NVR is equipped with connectors for bidirectional audio and with two RS-232 serial ports.
  • Event status notifications during live view (alarm, connection loss or recovery between server and client, full disk)
  • Instant playback in live-view window
  • Allows display of live view on pre-configured embedded website
UPC: 888034010369 In the Box ACTi 16-Channel Standalone NVR with 4TB HDD
  • Power Cord
  • Limited 3-Year Warranty
  • Table of Contents




    Upload User Manual

    Have you got an user manual for the ACTi 16-Channel Standalone NVR with 4TB HDD in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

    To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
    Upload PDF user manual Upload DOC user manual
    Please enter here the link to the user manual of this product:





    OR

    Enter here the file with the user manual of this product from your computer/phone:
    (60MB max; Permitted formats: PDF)

    0%


    Technical parameters

    ACTi INR-100 Specs

    Resolution Support all ACTi cameras in all resolutions
    Supported Devices Maximum Number of Video Devices: 16
    Maximum Number of PoS Devices: 16
    Maximum Number of Access Control and Network I/O devices: 16
    Computing Additional Computing Power: Yes
    Maximum Number of Clients Local: 1
    Remote: 5
    Number of Licenses 16-channel license included
    Compression H.265, H.264, MPEG-4, MJPEG
    CPU Intel Core i5-6500TE
    RAM 8 GB
    Display Layout Mode Local: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16
    Remote: 1, 3, 4, 5, 6, 8, 9, 10, 12, 16, 18, 24, 25, 35, 36, 48, 49, 64, custom
    Digital Zoom Yes
    Layout Area maps with camera icons, small live view windows, hyperlinked
    Setup e-Map image upload, Google maps settings and preset management, camera positioning, vision angle and pointed direction of camera, view positioning, source positioning, extended devices for PoS (Point-of-Sale), access control, network I/O, car park
    PTZ Mode Mouse PTZ mode to control e-Map video streams
    PTZ Control PTZ Control, speed control, 32 preset points
    Joystick USB-based joystick supported
    Type 1 x microphone input port
    1 x line output port
    Bidirectional
    Audio Compression PCM, G.711
    Protocols IPv4/v6, TCP, UDP, DHCP client, HTTP, DNS, NTP, RTP, RTSP, SMTP, FTP, ICMP, ARP, UPnP, LDAP (client), iSCSi
    Ethernet Port Non-PoE:
    2 x Ethernet 1000Base-T, RJ45
    Modes Scheduled, event, manual, event speed-up
    Dual Streaming Supported
    Throughput 300 Mb/s max
    Playback Control Continuous forward and backward playback with speeds 1x/2x/4x/8x/16x or frame-by-frame
    Pause
    Stop
    Synchronized Playback Local: 9 x channels
    Remote: 16 x channels
    Recording Search Method Type By time, events, channels, bookmarks, notifications and listed as clickable time-based thumbnails for full-size view and snapshot download
    Smart Search By motion detection and tamper
    Video Export Formats: Raw, AVI, EXE
    Event Trigger NVR: Disk full, disk not found, disk is available, schedule service start and stop, video push start and stop, CPU limit exceeded
    Video Device: Video motion detection, passive IR sensor, external device through digital input, sound detection, intelligent event detection, RFID detection, video push start and stop, video loss, video recovery, network loss and recovery
    Extended Device: PoS status, network I/O status, access control status, car park status
    Event Response Pop-up window with live video and event confirmation activation, switch to hotspot window, switch to customize view, command a PTZ device to go to a preset point, play alert sound, activate external device through digital output, execute system command to activate other programs, upload video or snapshot to FTP server, email notification with snapshots, push notification
    Permission Control Unlimited number of users, active directory, customizable permissions for user groups, account lockout, automatic logout after idle, playback password protected, password validity period
    Client PC Operating System Windows 10/8/7, Windows Server 2012/2008
    Server Operating System Embedded Windows 7
    Mobile Client Program Mobile device application (ACTi Mobile Client) supports live view, PTZ control, video push, event- or time-based search and playback
    Supported Operating Systems: iOS, Android
    USB 6 x USB 3.0 ports
    Language Multi-language
    Unified Solution Fully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
    GPS Manual setting
    ONVIF Profile S
    Web Browser Internet Explorer 11 or newer
    Supported Devices Third-Party Integration: PoS, access control, network I/O, parking management station (PMS),
    Various optional integrations requiring additional license
    Serial 2 x RS-232 Ports
    External Storage Interface eSATA, iSCSI
    Access Local Access: HDMI/DVI/DisplayPort for monitor, joystick, keyboard & mouse
    Power Source 100 to 240 VAC
    HDD Bay 1 x SATA 3.5" bay, up to 10 TB capacity (4 TB preinstalled)
    Fan Yes
    Operating Temperature 32 to 104°F / 0 to 40°C
    Operating Humidity 10 to 85% RH
    Remote Access Workstation, web client, mobile client
    Approvals CE, FCC, UL (for built-in power adapter)
    Dimensions 10.0 x 9.1 x 3.5" / 25.5 x 23.0 x 8.8 cm
    Weight 7.05 lb / 3.2 kg
