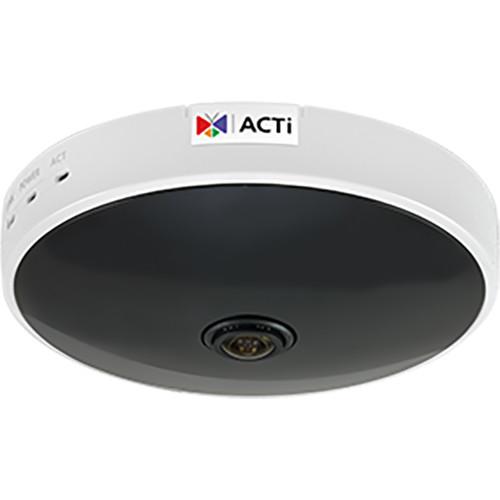

User Manual for ACTi 1MP Network Mini Dome Camera with 2.5mm Fixed Lens, Night Vision, & Analytics Click to enlarge the picture
Contents of the user manual for the ACTi 1MP Network Mini Dome Camera
- Product category: Wired IP Cameras ACTi
- Brand: ACTi
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ACTi Wired IP Cameras
|
User manual for the ACTi 1MP Network Mini Dome Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ACTi product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ACTi user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ACTi product will considerably shorten its lifespan!
|
Product description The 1MP Network Mini Dome Camera from ACTi captures images at a resolution of 1280 x 720 at 60 fps. It offers extreme WDR (Wide Dynamic Range) and SLLS (Superior Low Light Sensitivity). Additionally, the camera features built-in people counting analytics designed to generate analysis metadata. The metadata analyzed can be collected by a server for basic statistical report generation, or the ACTi market application suite for business intelligence to provide advanced and customizable reports. If a notification is necessary, if too many people enter a building, for example, the ACTi notification service can send a message to store managers immediately. -
- 1MP with 720p
- SLLS (Superior Low Light Sensitivity)
- Fixed 2.55mm f/2.2 lens
- Extreme WDR (145 dB)
- 60 fps at 1280 x 720
- 108.6 x 82.1° field of view
- Built-in people counting analytics
- 16' night vision range
In the Box ACTi 1MP Network Mini Dome Camera with 2.5mm Fixed Lens, Night Vision, & Analytics Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ACTi 1MP Network Mini Dome Camera with 2.5mm Fixed Lens, Night Vision, & Analytics in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersACTi Q93 Specs | | | Device Type | Indoor mini dome | | Image Sensor | Progressive scan CMOS | | Sensor Size | 1/2.8" | | Effective Pixels | 2065 x 1553 (3.21 MP) | | Horizontal Resolution | 1450 TVL | | Day/Night | Yes | | Low Light Sensitivity | Superior | | Minimum Illumination | Color: 0.1 lux at f/2.2 (30 IRE, 2400K)
B&W: 0 lux at f/2.2 (IR LED on) | | Mechanical IR Cut Filter | Yes | | IR Sensitivity Range | 700 to 1100 nm | | IR LED | 3 x adaptive IR LED (850 nm) | | IR Working Distance | 16.4' (5 m) (0 lux, 30 IRE, gain 255, auto shutter mode) | | Electronic Shutter | 1/15 to 1/16,000 sec (manual mode)
1/15 to 1/16,000 sec (auto mode) | | S/N Ratio | 56 dB | | | | Focal Length / Aperture | Fixed focal, 2.55mm / f/2.2 | | Iris | Fixed | | Focus | Fixed | | Lens Mount | Board mount | | Horizontal Viewing Angle | 108.6° | | Vertical Viewing Angle | 82.1° | | | | Compression | H.264 (baseline/ main/ high profile), MJPEG | | Maximum Frame Rate vs. Resolution | 60 fps 1280 x 720
30 fps at 640 x 480
30 fps at 320 x 400 | | Multi-Streaming | Simultaneous triple streams based on 3 configurations | | Bit Rate | 128 kb/s to 12 Mb/s (per stream) | | Bit Rate Mode | Constant, variable | | Image Enhancement | Extreme WDR (145 dB)
White Balance: Automatic, hold, and manual
Brightness
Contrast
Sharpness
Automatic gain control
2D+3D digital noise reduction
Flickerless
Defogging | | Text Overlay | User defined text on video | | Image Orientation | Image flip, mirror, and rotation (90° and 270°) | | Analytics | People counting, object counting, shock detection | | | | Protocol | TCP, UDP, HTTP, HTTPS, DHCP, PPPoE, RTP, RTSP, IPv6, DNS, DDNS, NTP, ICMP, ARP, IGMP, SMTP, FTP, UPnP, SNMP, Bonjour | | Ethernet Port | Ethernet (10/100 Base-T), RJ45 connector | | Security | IP address filtering, HTTPS encryption, password protected user levels, anonymous login, IEEE 802.1X network access control | | | | Unified Solution | Fully compatible with ACTi software | | ISV Integration | Software development kit (SDK) available
ONVIF-compliant | | GPS | Manual setting | | Firmware Access Browser | Microsoft Internet Explorer 9.0 or newer (full functionality)
Safari with QuickTime installed and other browsers with VLC installed (partial functionality) | | Firmware Updates | Yes | | | | Local Storage | microSDHC/SDXC memory card slot (card not included) | | Approvals | CE (EN 55022 Class B, EN 55024), FCC (part15 subpart B Class B), UL (for optional PoE injector) | | Starting Temperature | 14 to 122°F (-10 to 50°C) | | Operating Temperature | -4 to 122°F (-20 to 50°C) | | Operating Humidity | 10 to 85% RH | | Power Source and Consumption | PoE Class 3 (IEEE 802.3af) / 12.95 W
12 VDC | | Dimensions | 4.5 x 1.2" (115 x 30 mm) | | Weight | 8.2 oz (232 g) |
